KUB/4DES-5Y Open Type Air Cooled Marine 5HP Condensing Unit Copper Tube Fin Corrosion Resistant
Place of Origin
Minimum Order Quantity
L/C, T/T, Western Union
500 units per month
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.
Semi-hermetic Piston Compressors
Air Cooler Condenser
Corrosion Resistant Compressor Refrigeration Unit
Open Type 5HP Condensing Unit
Air Cooled Marine 5HP Condensing Unit
Leave a Message
KUB/4DES-5Y Open type air cooled Marine corrosion-resistant unit 5HP condensing unit Copper tube copper fin condensing unit
380v 3ph 50hz

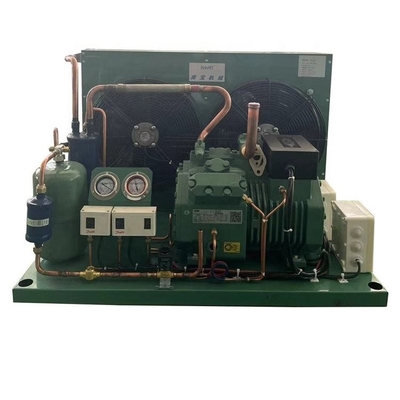

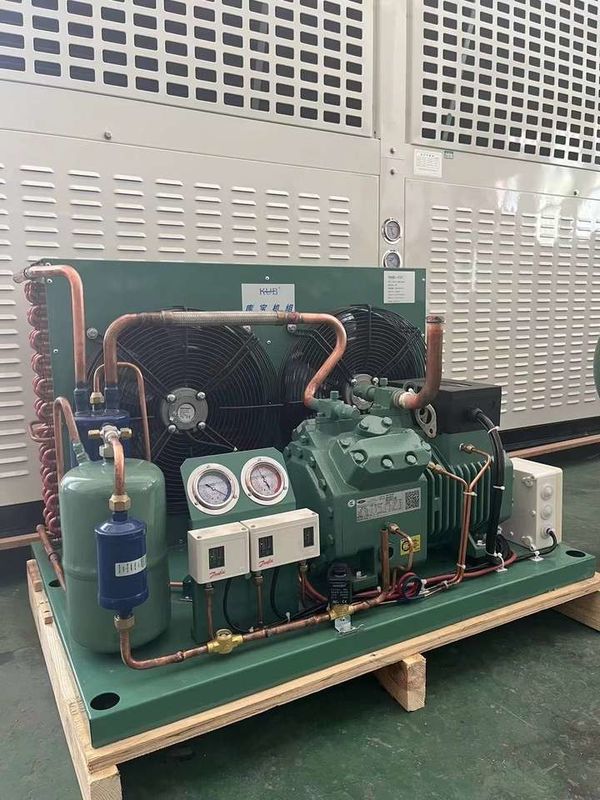

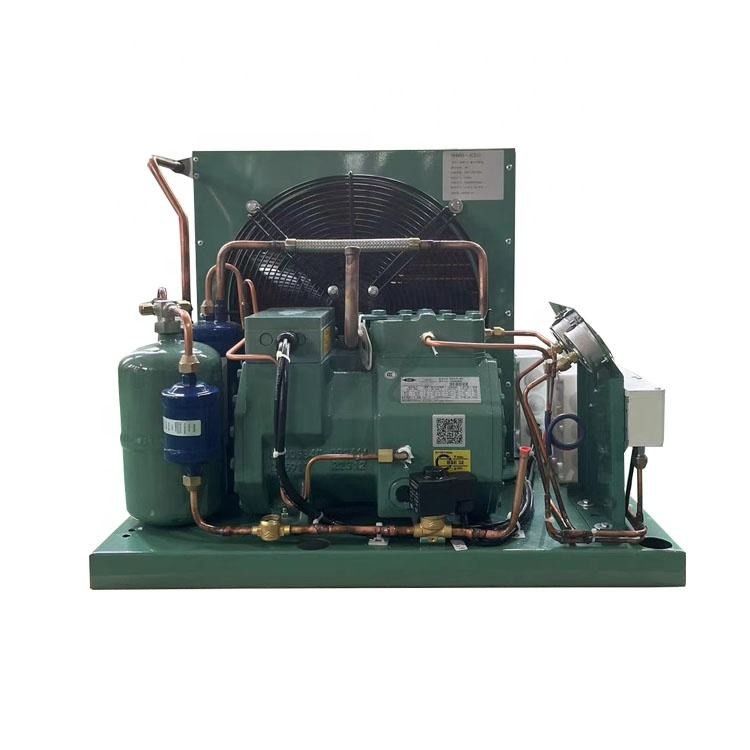

4DES-5Y condensing unit , this is produced by our company. It is a condensing unit for ships.

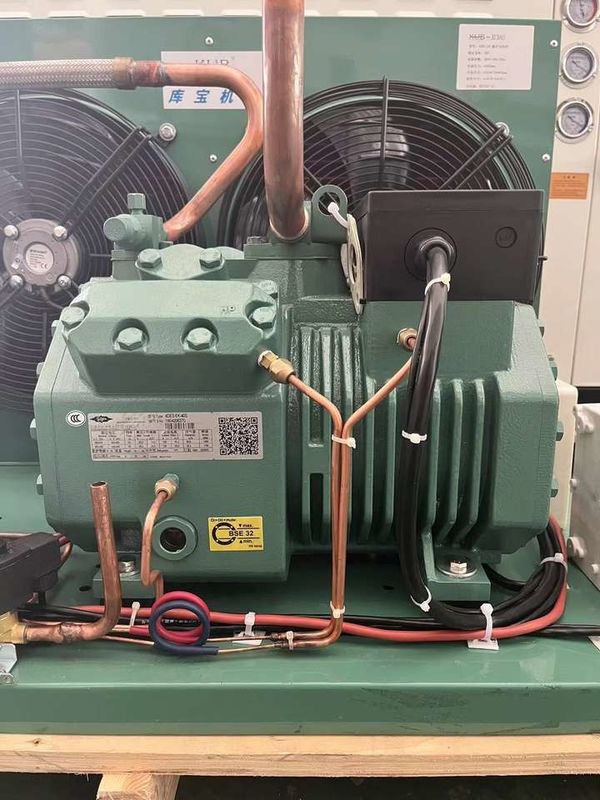

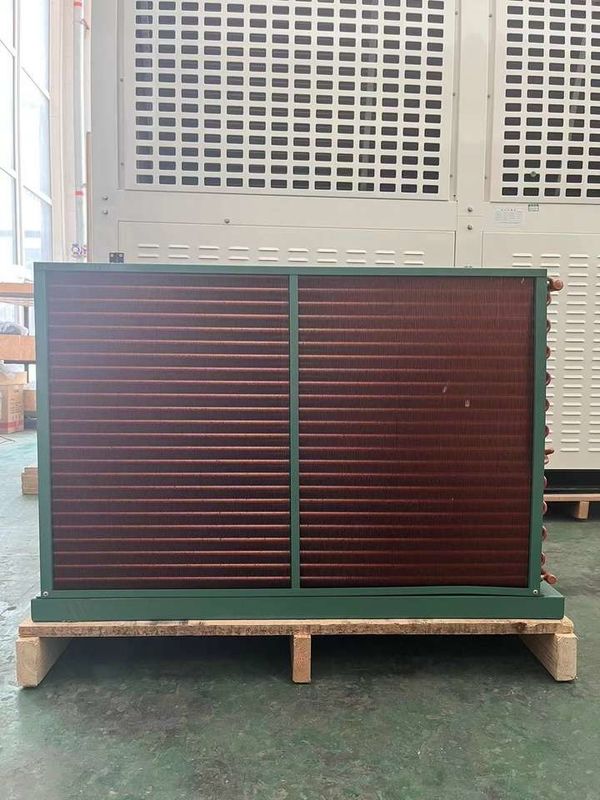

The compressor adopts Bit-zer, and a KP1 low-pressure pressure control is used alone for low-pressure start-up and shutdown. Aluminum fins are more likely to be corroded by seawater than copper fins, because copper is more resistant to seawater corrosion than aluminum. Therefore, for the condenser used on board, we choose the condenser with copper tube and copper sheet. The specific heat of copper is 0.385 J/g K; the specific heat of aluminum is 0.897 J/g K. The smaller the specific heat, the easier the temperature rises or falls. The specific heat of copper is about half of that of aluminum, so the temperature drops faster and the heat dissipation is more efficient.
Factory direct production , Customized according to needs.
