ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V

Place of Origin	SHANGHAI CHINA
Brand Name	KUB
Certification	CE
Model Number	ZB150KQE
Minimum Order Quantity	1
Price	US $15000 \| 100 Piece/Pieces (Min. Order)
Packaging Details	plywood package
Delivery Time	20-35days
Payment Terms	L/C,T/T
Supply Ability	50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name

Parallel Refrigeration Unit

Application

Cold Storage Room Freezer Room

Compressor

Scroll Compressor

Voltage

380V 3PH 50HZ

Highlight

Ac Parallel Refrigeration Condensing Unit

Cold Room Storage Copeland Compressor

Parallel Refrigeration Copeland Compressor

Leave a Message

Product Description

ZB150KQE Copeland Compressor For Cold Room Storage, Parallel Refrigeration AC Condenser Unit

Product Specifications

Product Name	Parallel Refrigeration Unit
Application	Cold Storage Room, Freezer Room
Compressor	Scroll Compressor
Voltage	380V 3PH 50HZ
Compressor Quantity	3
Origin	Made in China

Product Description

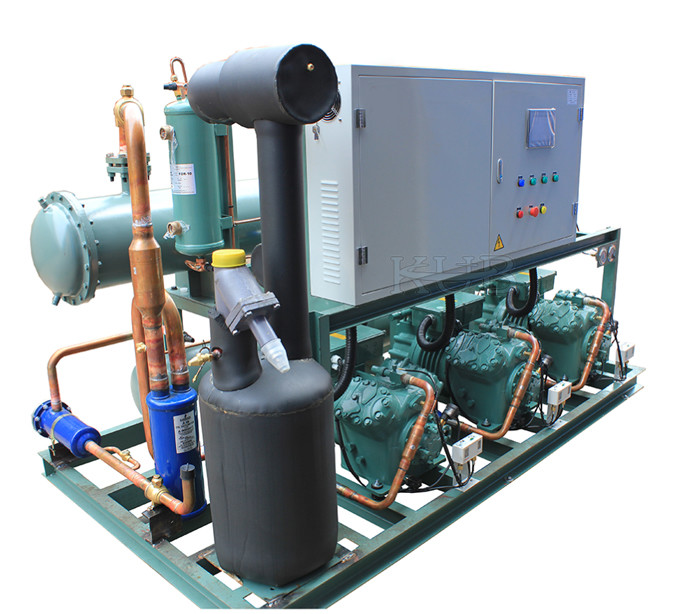

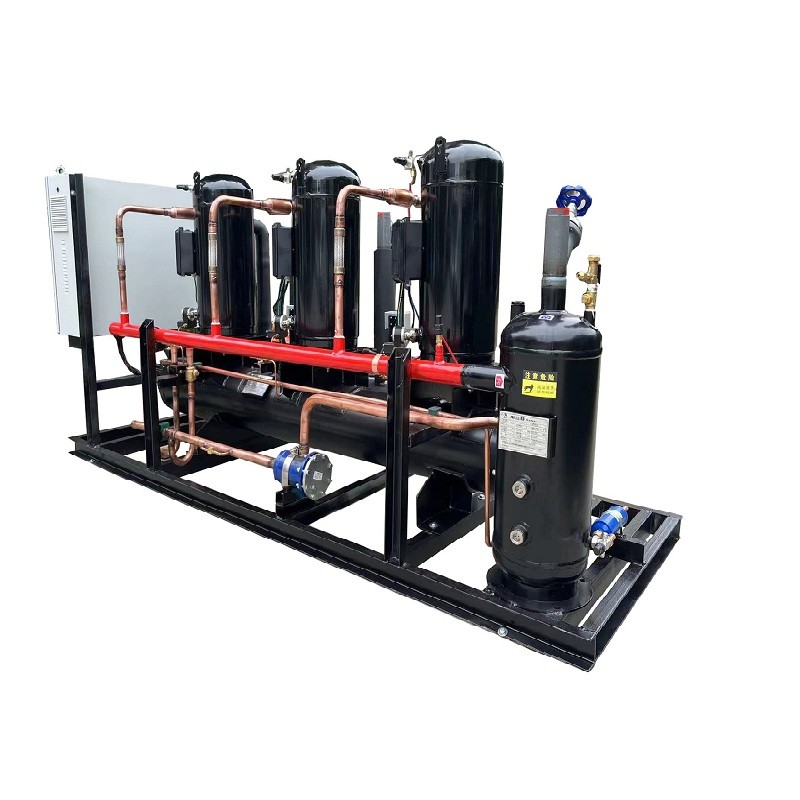

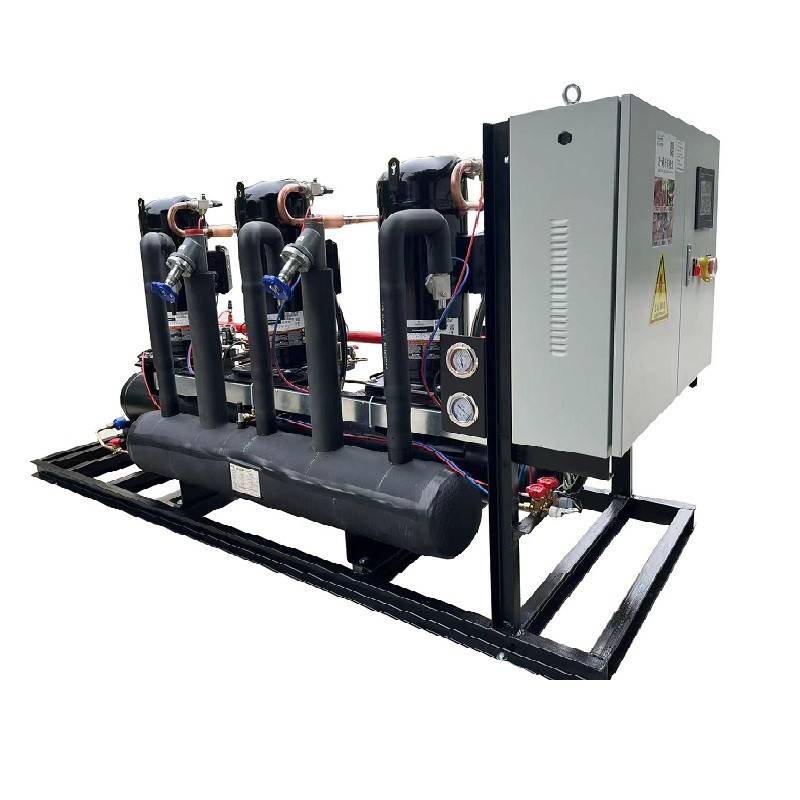

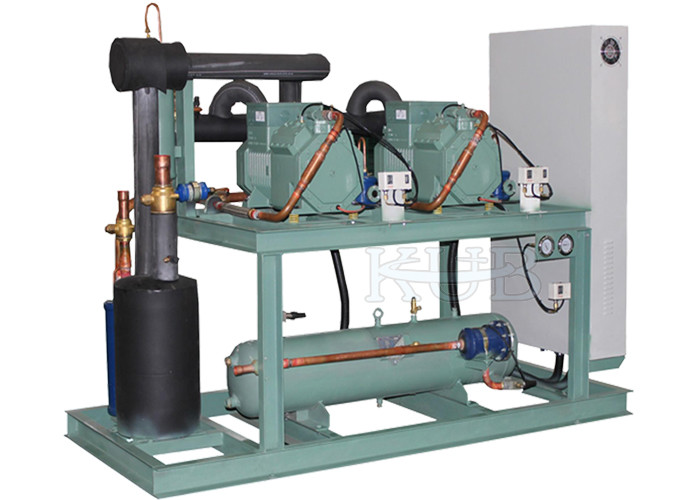

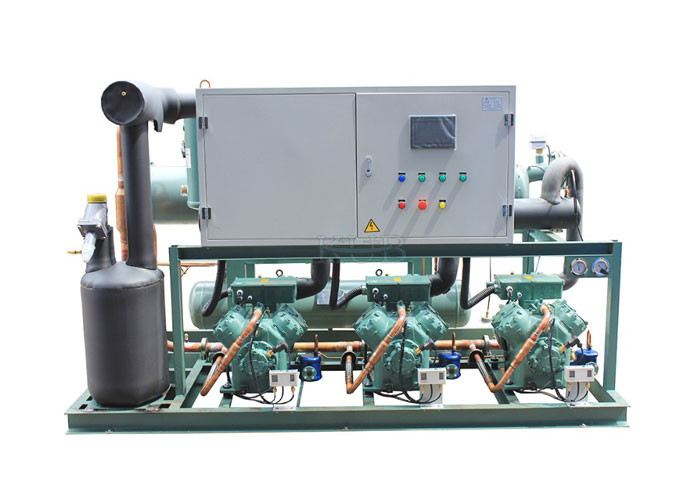

The ZB150KQE Copeland compressor condensing unit is designed for cold room storage applications, featuring a parallel refrigeration system with AC condenser capabilities. This high-performance unit ensures reliable cooling for commercial refrigeration needs.

Start-Up Instructions for Parallel Units

Pressure Holding: Remove the low pressure transmitter
Vacuum: Perform vacuum procedure
Add Freon:
- Close the compressor valve and maintenance valve
- Open the liquid reservoir valve
- Add freon to the needle valve in front of the filter
- Close the liquid storage valve and open the maintenance valve
- Fill up the freon and open the oil balance maintenance valve
- Select 1 compressor, open the exhaust valve and half of the suction valve
- Control via system control box, turn on water pump or condenser fan
- Turn on liquid inlet electromagnetic fluid and evaporator fan
- After 10 minutes of operation, fully open the suction valve
- Check compressor oil level and oil reservoir oil level
Unit Control Box:
- Displays operating values: high pressure, low pressure, exhaust air temperature, suction air temperature
- Displays alarms: suction/exhaust pressure alarm, press current alarm, condenser current alarm
