ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V

ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V

Ac Parallel Refrigeration Condensing Unit

Cold Room Storage Copeland Compressor

Parallel Refrigeration Copeland Compressor

Place of Origin:

SHANGHAI CHINA

Brand Name:

KUB

Certification:

CE

Model Number:

ZB150KQE

Contact Us
Request A Quote
Product Details
Product Name::
Parallel Refrigeration Unit
Application:
Cold Storage Room Freezer Room
Compressor:
Scroll Compressor
Voltage:
380V 3PH 50HZ
Highlight:

Ac Parallel Refrigeration Condensing Unit

,

Cold Room Storage Copeland Compressor

,

Parallel Refrigeration Copeland Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $15000 | 100 Piece/Pieces (Min. Order)
Packaging Details
plywood package
Delivery Time
20-35days
Payment Terms
L/C,T/T
Supply Ability
50 units per month
Product Description
ZB150KQE Copeland Compressor For Cold Room Storage, Parallel Refrigeration AC Condenser Unit
Product Specifications
Product Name Parallel Refrigeration Unit
Application Cold Storage Room, Freezer Room
Compressor Scroll Compressor
Voltage 380V 3PH 50HZ
Compressor Quantity 3
Origin Made in China
Product Description
The ZB150KQE Copeland compressor condensing unit is designed for cold room storage applications, featuring a parallel refrigeration system with AC condenser capabilities. This high-performance unit ensures reliable cooling for commercial refrigeration needs.
Start-Up Instructions for Parallel Units
  1. Pressure Holding: Remove the low pressure transmitter
  2. Vacuum: Perform vacuum procedure
  3. Add Freon:
    • Close the compressor valve and maintenance valve
    • Open the liquid reservoir valve
    • Add freon to the needle valve in front of the filter
    • Close the liquid storage valve and open the maintenance valve
    • Fill up the freon and open the oil balance maintenance valve
    • Select 1 compressor, open the exhaust valve and half of the suction valve
    • Control via system control box, turn on water pump or condenser fan
    • Turn on liquid inlet electromagnetic fluid and evaporator fan
    • After 10 minutes of operation, fully open the suction valve
    • Check compressor oil level and oil reservoir oil level
  4. Unit Control Box:
    • Displays operating values: high pressure, low pressure, exhaust air temperature, suction air temperature
    • Displays alarms: suction/exhaust pressure alarm, press current alarm, condenser current alarm

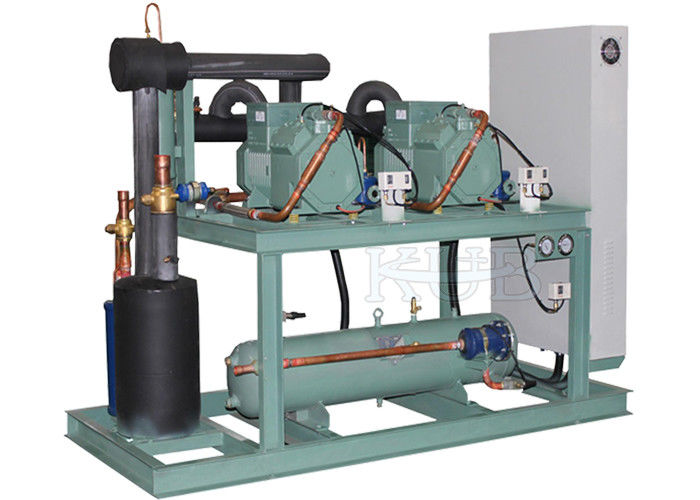

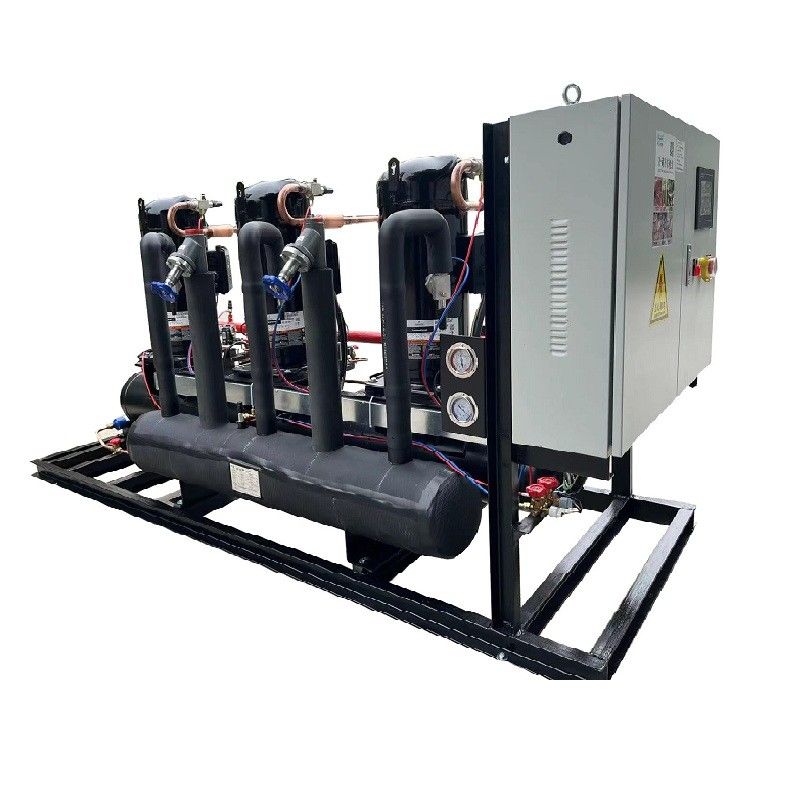

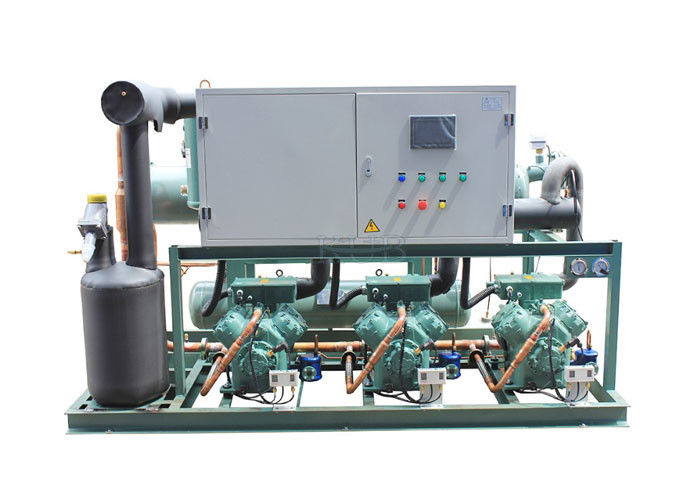

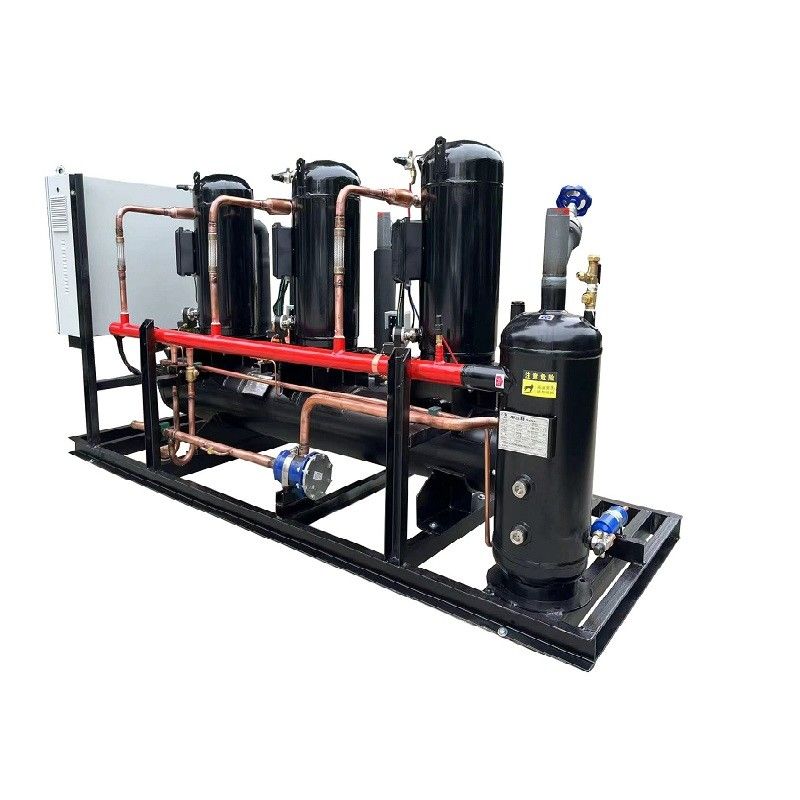

Product Images
ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 0 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 1 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 2 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 3 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 4 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 5 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 6 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 7 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 8 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 9 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 10 ZB150KQE Copeland Scroll Compressor Refrigeration Condensing Unit 380V 11
