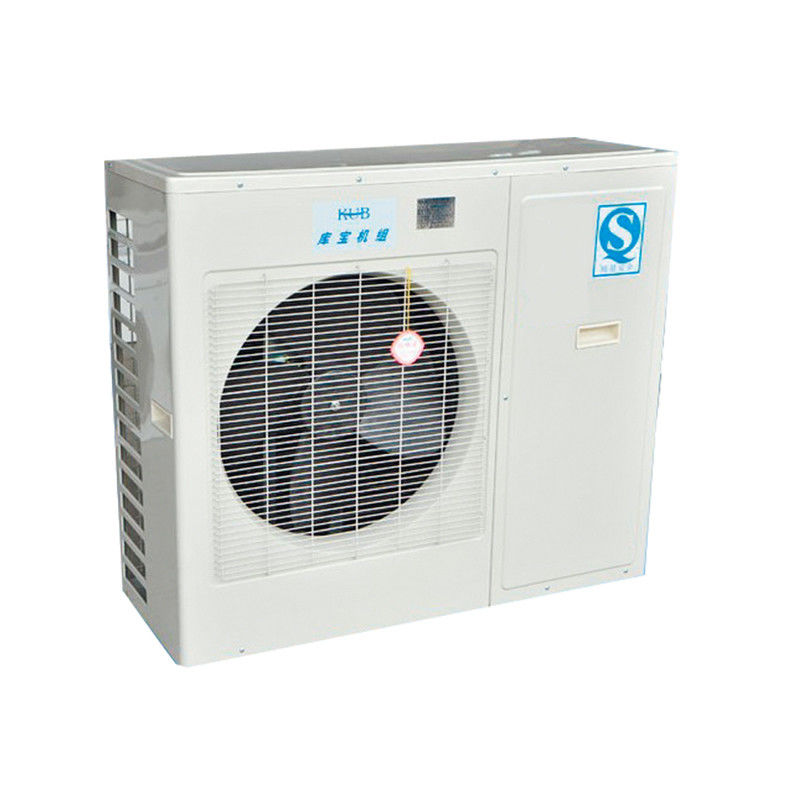

220v 2HP Air Conditioning Unit For Fruit Cold Room

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number KUB200
Minimum Order Quantity 1 Unit/Unit
Price US $500-520 / Units | 10 Unit/Units (Min. Order)
Packaging Details Export package
Delivery Time 3~7 days
Payment Terms T/T, Western Union
Supply Ability 50 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Small Copeland Scroll Condensing Unit Type Compressor
Compressor Copeland Compressor ZB15KQ ZB21KQ Temperature 0~5degree
Voltage 220v/50hz Compressor Type Scroll
Application Cold Storage Room Freezer Room,Food Processing Room After-sales Service Provided Overseas Third-party Support Available
High Light

2HP Air Conditioning Unit

,

220v Air Conditioning Unit

,

Fruit Refrigeration Condensing Unit

Leave a Message
Product Description
KUB200M/ZB15KQ 2HP air conditioning unit for fruit cold room China small condensing unit suppliers
Product Description
The unit with high-quality cooling accessories can be installed conveniently, and can operate quietly.

1. Using box-type overall design, compact in structure and beautiful in appearance;

2. Scientific designs, steady air flow, fully exert the heat-transfer capacity of the unit;

3.Rational performance design and high EER(energy efficiency ratio) of the unit;

4.Using external rotor motor, fans good appearance, low noise operation;

5. Maintenance:The panel is easy to remove.



Model Cooling capacity Refrigrant Refrigerating room volume
KUB200M 2HP R22 20CBM

This series of products has the following characteristics:
◆It adopts box-type monolithic structure, compact structure and beautiful appearance;
◆The main engine adopts Copeland, Sanyo and fully enclosed refrigerated scroll compressors with low vibration, low noise and good running reliability;
◆Using copper tube aluminum sheet heat exchanger, high heat exchange efficiency and long service life;
◆The side fan unit adopts 6-level motor and the fan operates with low noise;
◆ Built-in junction box, convenient wiring;
◆The inlet and outlet pipe of the unit is equipped with a shut-off valve, which is convenient for installation and maintenance.



MODEL KUB
200L 300L 400L 500L 600L
COMPRESSOR ZB15KQE ZB21KQE ZB29KQE ZB38KQE ZB45KQE







Capacity



&



Power



Evaporation -5℃

Capacity

(W)

3660 5630 7680 9550 11200
Evaporation-7℃

Capacity

(W)

3630 5180 7070 8790 10350
Evaporation-10℃

Capacity

(W)

2920 4570 6210 7740 9120
Evaporation-20℃

Capacity

(W)

  2930 3930 4940 5850
Evaporation-23℃

Capacity

(W)

  2540 3390 4280 4080
Evaporation-25℃

Capacity

(W)

  2300 3070 3880 4610
Suitable for cold storage temperature(℃) -18℃
Refrigerant R404A/R507C
Power supply 380V/3P/50HZ
Condenser Fan 1×¢450 1×¢450 1×¢450 2×¢450 2×¢450
Fan voltage(V) 220 220 220 220 220
Fan power(W) 60 60 60 60×2 60×2
Piper size Suction(mm) ¢16 ¢16 ¢16 ¢19 ¢19
Liquid(mm) ¢10 ¢10 ¢10 ¢12 ¢12
Dimensions L(mm) 1020 1020 1020 1020 1020
W(mm) 420 420 420 420 420
H(mm) 840 840 840 1240 1240
Installation size (A×B)(mm) 580×380 580×380 580×380 580×380 580×380

220v 2HP Air Conditioning Unit For Fruit Cold Room 0

220v 2HP Air Conditioning Unit For Fruit Cold Room 1

condensing units design conditions: evaporation temperature -23 ° C, ambient temperature 35 ° C, suction superheat 10 ° C

According to the needs of market development, the company's fully enclosed box condensing unit has been changed to the traditional full-closed condensing unit, which can meet the needs of -5 °C ~ 10 °C, -10 °C ~ -18 °C. Used in hotels, restaurants, food, health, medicine, agriculture, chemical and other industries.



The working condition of design: evaporating temperature -7°C,environment temperature 35°C,suction gas superheat 10°C



Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

40HP Carrier Semi Hermetic CARLYLE COMPRESSOR FOR HVAC SYSTEM 06EA299600 Central air conditioning Chiller 0

Carrier Carlyle Cold Room Compressor 18-00055-20rm2 Ac Power Cfm Designation Oil Less  Lubrication 3

Carrier Carlyle Cold Room Compressor 18-00055-20rm2 Ac Power Cfm Designation Oil Less  Lubrication 4



Carrier Carlyle Cold Room Compressor 18-00055-20rm2 Ac Power Cfm Designation Oil Less  Lubrication 6

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3

Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.

Hermetic FNV Type R407C 48KW Air Cooled Condenser 2



Our Services

A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.
