50HP Industrial Air Cooled Chiller For Extruder Blower Injection Moulding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Weight (KG) | 1500 |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Marketing Type | Ordinary Product |
| Core Components | Compressor | Place Of Origin | Shanghai, China |
| Warranty | 1 Year | Product Name | Chiller |
| Compressor | Refrigeration Compressor | Voltage | 380V 50HZ |
| Condenser Type | Air Cooler Condenser | After Warranty Service | Online Support |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location | None |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Type | Chiller | Brand Name | KUB |
| Refrigerant | R22/R404A | Application | Cold Room |
| Color | White | Horse Power | 20HP-50HP |
| Original | Shanghai.China | ||
| Highlight | Injection Moulding Industrial Air Chiller,Extruder Air Cooled Condenser,Blower Industrial Air Cooled Chiller |
||
Product Description

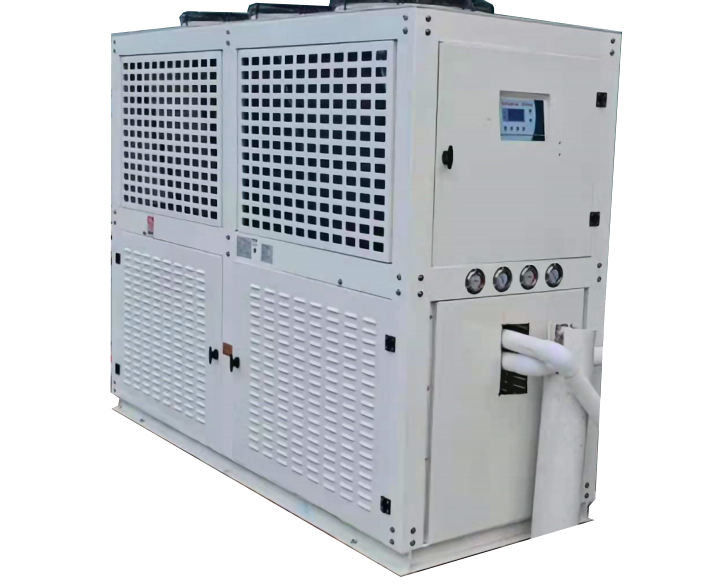

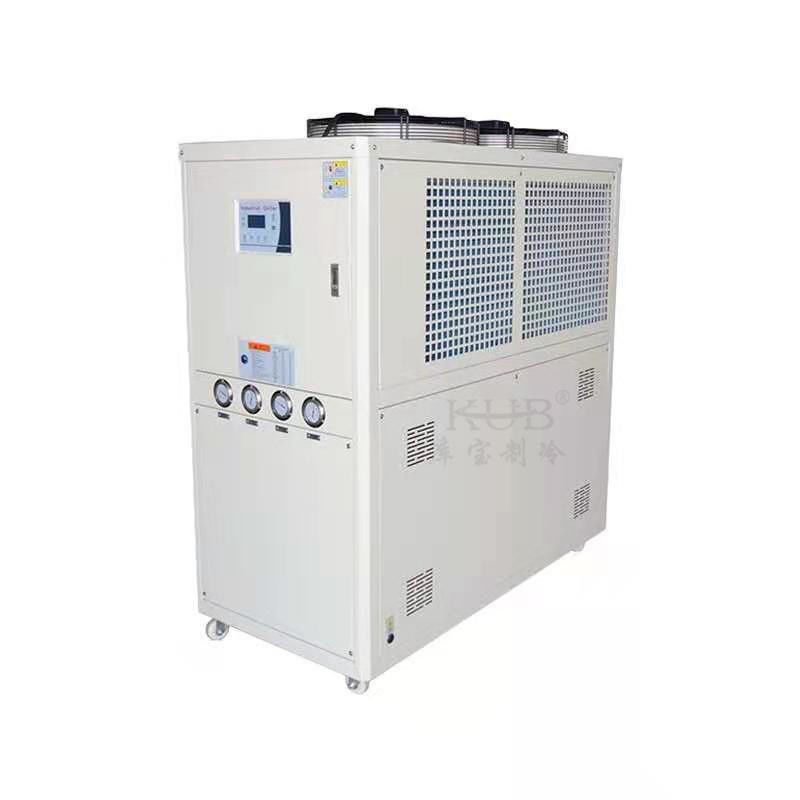

20HP to 50HP Industrial air cooled chiller for Extruder Blower Injection Moulding
| parts | 20HP | |
| model | quantity | |
| Compressor (10HP * 2) | YH307 | 2 |
| Channel steel frame | 1 | |
| Air condenser (20HP) | 240m² | 1 |
| Freon | 1 | |
| Reservoir | 10HP | 2 |
| Filter (kubao) | 165S | 2 |
| Solenoid valve | SV78-5 | 2 |
| Pressure controller (kubao) | P830E | 2 |
| High voltage meter (domestic) | Oil gauge | 2 |
| Low voltage meter (domestic) | Oil gauge | 2 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TGEX11 | 2 |
| Plate heat exchanger | ZL95-(30+30) | 1 |
| Water pump | Chlf12-20-1.2kw flow: 12m3, lift: 19.5m, motor diameter: 1.2kW (50, 50) | 1 |
| The Conduit | 1 | |
| parts | 25HP | |
| model | quantity | |
| Compressor (25HP) | ZB150 | 1 |
| Channel steel frame | 1 | |
| Air condenser () | 300m² | 1 |
| electric machinery | 600Suction | 3 |
| Freon | 1 | |
| Reservoir | 30HP | 1 |
| Filter (Danfoss) | 307S | 1 |
| Solenoid valve | EVR10 | 1 |
| Pressure controller (Danfoss) | KP15 | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | 1 | |
| evaporator | Plate heat exchanger or water tank or shell and tube type | 1 |
| Water pump | Chl16-20-2.2kw flow 16m3 Lift 21.7M caliber (inlet 50, outlet 50) Motor 2.2kw |
1 |
| parts | 30HP | |
| model | quantity | |
| Compressor (30HP) | 4VG30.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser | 400m² | 1 |
| electric machinery | 600Suction | 4 |
| Freon | 1 | |
| Reservoir | 30HP | 1 |
| Filter (kub) | 307S | 1 |
| Solenoid valve | SV98-7 | 1 |
| Pressure controller (kub) | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | 1 | |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Chl16-20-2.2kw flow 16m3 Lift 21.7M, caliber (inlet 50, outlet 50) Motor 2.2kw |
1 |
| parts | 40HP | |
| model | quantity | |
| Compressor (40hp) | 6WG40.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser () | 480m² | 1 |
| electric machinery | 630 | 4 |
| Freon | 1 | |
| Reservoir | 30rise | 1 |
| Filter () | 307S | 1 |
| Solenoid valve | SV98-9 | 1 |
| Pressure controller () | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TGEX30 | 1 |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Chl20-30-4kw, flow 20m3, lift 34m, motor 4kw diameter (50,50) | 1 |
| parts | 50HP | |
| model | quantity | |
| Compressor (50HP) | 6WG50.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser | 530m² | 1 |
| electric machinery | 630 | 5 |
| Freon | 1 | |
| Reservoir | 40L | 1 |
| Filter (kub) | 489+D48 | 1 |
| Solenoid valve | 28 | 1 |
| Pressure controller (kub) | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TRAE50 | 1 |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Cdl32-20-2-3kw vertical multistage centrifugal pump | 1 |
