Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number KBG1
Minimum Order Quantity 1Piece
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Place Of Origin Shanghai, China
Voltage 380V 50HZ, 380V 50HZ Weight 1500 KG
Refrigerant R404A Warranty Of Core Components 1 Year
High Light

Screw Industrial Air Chiller

,

Medium Temperature Parallel Air Cooled Condenser

,

Air Cooled Condensing Unit 50Hz
Leave a Message
Product Description
user name working condition Number of units: 　
　 Te: -40°C Tc: 35°C prepared by: 　
Compilation date: 　
Order Supplementary Instructions: Made by:380V/3P/50HZ,Lingering agent:R507,Cooling capacity: kwinput power:kw
serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK6153-50 　 1 tower Bitzer
1.2 Vent 1-5/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANF0SS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN50 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN40 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual 0&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN40 　 1 indivual AMG
three, Cold cladding system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 80Lift 　 1 indivual Swift
4.1 Liquid supply pipe 28 　 1 set 　
4.3 Dry filter barrel interface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-1/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual 0&F
4.12 Liquid line stop valve 28Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN50 　 1 set domestic
6.3 Suction filter barrel 10017Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual 0&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN50 　 1 indivual AMG
seven, Oil cable system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box open, Schneider contactor,PLC,Kunlun state 1 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-sealed screw type compressed wood CSK6163-60 　 1 tower Bitzer
1.2 Vent 1-5/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANF0SS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN50 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN40 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual 0&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN40 　 1 indivual AMG
three, Cold cladding system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 80Lift 　 1 indivual Swift
4.1 Liquid supply pipe 28 　 1 set 　
4.3 Dry filter barrel interface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-1/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual 0&F
4.12 Liquid line stop valve 28Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN50 　 1 set domestic
6.3 Suction filter barrel 10017Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual 0&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN50 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box open, Schneider contactor,P -C,Kunlun state 1 　 　
　 labor cost 　 　 　 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK7153-70 　 1 tower Bitzer
1.2 Vent 2-1/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANF0SS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN65 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN50 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual 0&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN50 　 1 indivual AMG
three, Condensing system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 150Lift 　 1 indivual Swift
4.1 Liquid supply pipe 35 　 1 set 　
4.3 Dry filter barrel interface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-1/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual 0&F
4.12 Liquid line low check valve 35Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN65 　 1 set domestic
6.3 Suction filter barrel 10021Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual 0&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual 0&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN65 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box F,Schneider contactor, PLC,Kunlun is not 1 　 　
　 labor cost 　 　 　 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK7163-80 　 1 tower Bitzer
1.2 Vent 2-1/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANFOSS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN65 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN50 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual O&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN50 　 1 indivual AMG
three, Cold cladding system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 150Lift 　 1 indivual Swift
4.1 Liquid supply pipe 35 　 1 set 　
4.3 Dry filter barrel interface 　 1 indivual line peak
4.4 Liquid supply solenoid valve 1-3/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual O&F
4.12 Liquid line stop valve 35Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN65 　 1 set domestic
6.3 Suction filter barrel 10021Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual O&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN65 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box open, Schneider contactor,PLC,Kunlun state 1 　 　
　 labor cost 　 　 　 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK7173-90 　 1 tower Bitzer
1.2 Vent 2-1/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANFOSS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN65 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN50 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual O&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN50 　 1 indivual AMG
three, Condensing system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 150Lift 　 1 indivual Swift
4.1 Liquid supply pipe 42 　 1 set 　
4.3 Dry filter barrel 9613Gfflinterface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-5/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual O&F
4.12 Liquid line low check valve 42Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN65 　 1 set domestic
6.3 Suction filter barrel 10021Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual O&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN65 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box : open, Schneider contactor,PLC,Kunlun state/ 1 　 　
　 labor cost 　 　 　 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK7173-100 　 1 tower Bitzer
1.2 Vent 2-1/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANFOSS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN65 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN50 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual O&F
2.4 Steel seat 1/4〃 NPT(Yin fly pattern) 1 indivual O&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN50 　 1 indivual AMG
three, Cold cladding system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 200Lift 　 1 indivual Swift
4.1 Liquid supply pipe 42 　 1 set 　
4.3 Dry filter barrel 9613Gfflinterface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-5/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual O&F
4.12 Liquid line stop valve 42Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN65 　 1 set domestic
6.3 Suction filter barrel 10021Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual O&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN65 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　
　 Electric control box ^Open, Schneider Contactor, PLC,Kunlun on-state negative 1 　 　
　 labor cost 　 　 　 　 　





serial number name Specification model or drawing number Technical description (code name) quantity unit manufacturer
　 Compressor system: 　 　 　 　 　
1.1 Semi-hermetic screw compressor CSK7193-110 　 1 tower Bitzer
1.2 Vent 2-1/8" Compressor comes with 1 indivual 　
1.3 Dual voltage control KP15 060-1264 1 indivual DANFOSS
1.4 CEOConnector valve 　 Compressor comes with 1 indivual 　
1.5 Suction valve DN65 Compressor comes with 1 indivual 　
two, Exhaust pipe system: 　 　 　 　 　
2.1 exhaust header DN50 　 1 set 　
2.2 High pressure gauge 0-3.6Mpa 　 1 indivual domestic
2.3 Steel angle valve F-T1 　 1 indivual O&F
2.4 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
2.5 safety valve 3/8〃NPT 　 1 indivual castel
2.6 safety valve ball valve 3/8〃NPT 　 1 indivual 　
2.7 hand valve 1/4〃 　 2 indivual Hong Sen
2.8 High pressure sensor 　 control box belt 1 indivual 　
2.10 Exhaust stop check valve DN50 　 1 indivual AMG
three, Cold cladding system: 　 　 　 　 　
Four, Liquid supply pipe system: 　 　 　 　 　
　 Horizontal reservoir 200Lift 　 1 indivual Swift
4.1 Liquid supply pipe 42 　 1 set 　
4.3 Dry filter barrel 9613Gfflinterface 　 1 indivual line peak
4.4 Liquid supply solenoid valve T-5/8"with coil 　 1 indivual Hong Sen
4.5 filter drier D48 　 2 indivual O&F
4.12 Liquid line stop valve 42Ball valve 　 2 indivual Hong Sen
five, Evaporator System: 　 　 　 　 　
　 　 　 　 　 　 　
six, Return trachea system: 　 　 　 　 　
6.1 return trachea DN65 　 1 set domestic
6.3 Suction filter barrel 10021Gfflinterface 　 1 indivual line peak
6.5 Suction filter element FRE-100 　 1 indivual O&F
6.6 Suction filter element1 FRE-100W 　 1 indivual O&F
6.7 Low pressure pressure sensor PP11 　 1 indivual Emerson
6.8 Steel angle valve F-T1 　 1 indivual O&F
6.9 Steel seat 1/4〃 NPT(female thread) 1 indivual O&F
6.10 Low pressure gauge 0-1.6Mpa 　 1 indivual domestic
6.11 Poke check valve DN65 　 1 indivual AMG
seven, Hernia system: 　 　 　 　 　
7.7 Air-cooled oil-cooled FNH22 　 0 　 　
7.8 Bypass Solenoid Valve 7/8"With coil 　 0 　 　
　 Excipients 　 　 1 　 　
　 frame 　 　 1 　 　

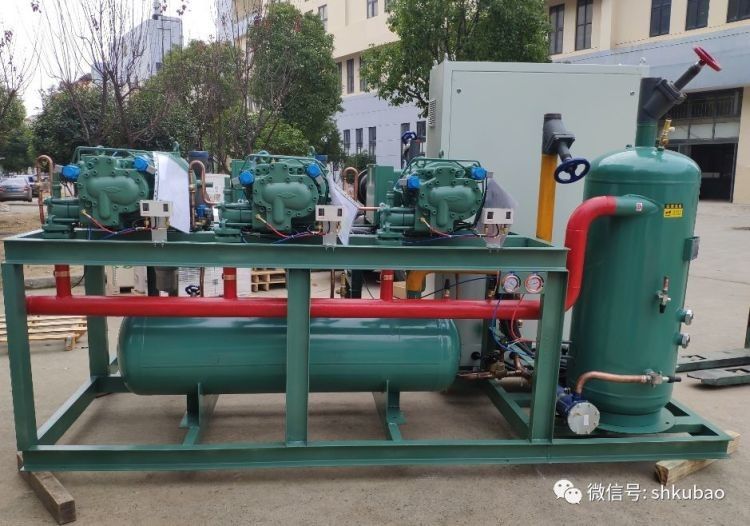

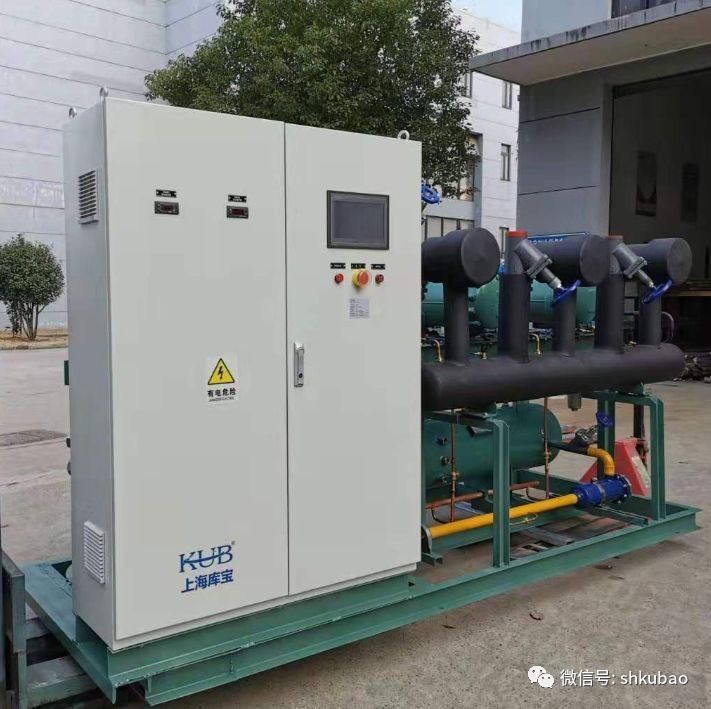

Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 0Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 1Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 2 Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 3Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 4Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 5Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 6Air Cooled Screw Refrigeration Condensing Unit Medium Temperature Parallel 7

Tags:

fridge condensing unit

commercial refrigerator condenser

cool room condensing unit
