CAJ2464Z Compressor Refrigeration Condensing Unit Fridge Cooling Unit

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number CAJ2464Z
Minimum Order Quantity 1Piece
Price Consult
Packaging Details Pallet packaging
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Condensing Unit
Brand Name KUB Certification CE
Product Name Air Cooled Condensing Unit Application Refrigeration Parts
Color Black Model CAJ2464Z
Condenser Air Cooled Condenser Made Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Place Of Origin China Warranty 1 Year
After-sales Service Provided Online Support Refrigerant R404a
Compressor Tecumseh Compressor Voltage 220V/1Ph/50Hz
Horse Power 1.5HP Cooling Type Air
High Light

Compressor Fridge Cooling Unit

,

Fridge Compressor Condensing Unit

,

Refrigeration Small Condensing Unit

Leave a Message
Product Description

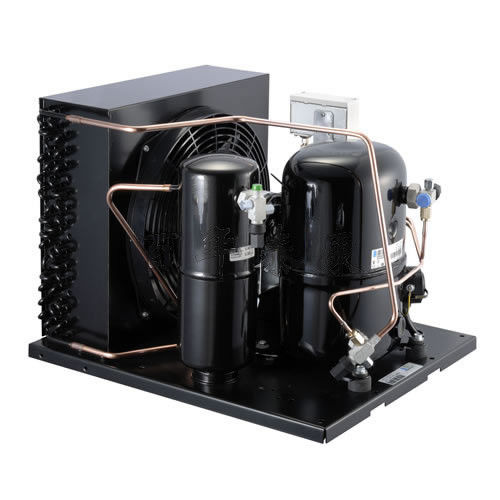

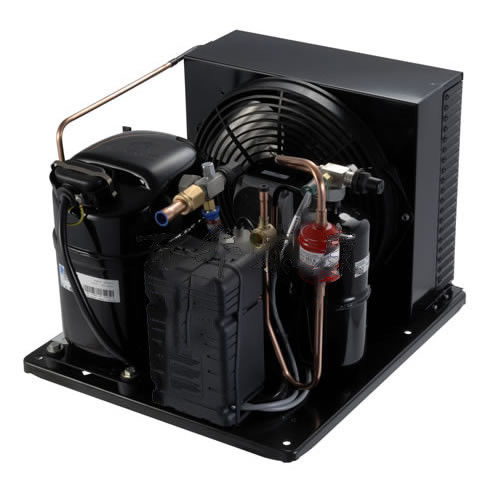

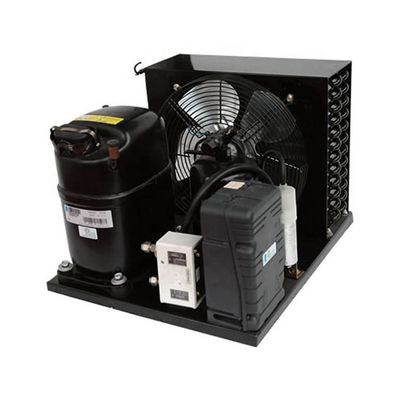

CAJ2464Z tecumseh compressor small condensing unit



Our wide range of condensing units is backed by 75+ years of experience. From small evaporative condensate units to large outdoor condensing units, you'll find the right product from Tecumseh.

What is a Condensing Unit?

A condensing unit typically is a high side assembly of a refrigeration system. It is an assembly of compressor, condenser, fan motor, controls and a mounting plate. It has the function of a heat exchanger to cool down and condensate the incoming refrigerant vapor into liquid and a fan for blowing outside air through the heat exchanger section to cool the refrigerant inside. Condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial scale units used in factory processes.

Why Tecumseh Condensing Unit?

Ready to install - Tecumseh continues to pioneer the design and development of condensing units for various applications. We offer a complete range of air and water-cooled, indoor and outdoor condensing units for commercial refrigeration applications.



The fully enclosed condensing unit is suitable for various working fluids such as R22, R134a and R404A. The cooling capacity of the unit is from 100W to 30000W, the evaporating temperature is -45°C to +15°C, and the high, medium and low temperature series are complete. At present, the number of units that have been produced has reached more than 2,000. It is the first choice for refrigeration in various industries such as supermarkets, dairy, kitchens, cold storage, fire protection, gas purification, medical treatment and environmental experiments.
The company is willing to meet the needs of customers with the best quality, the shortest delivery time, the most perfect and fast service!


Product Description:



Tesumseh condensing unit is with original Tecumseh hermetic compressor. With advantage of small capacity, Tecumseh condensing unit is the first choice for small cold room. Like 1/8HP, 1/6HP, 1/5HP, 1/4HP, etc. Applicable for med-high temperature and med-low temperature. Widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc.



Feature:



1. Tecumseh hermetic compressor

2. With full range, air cooled & water cooled.

3. All the accessories are world famous brand, which with reliable quality.

4. Wide application, suitable for different refrigerant.

5. Optional configuration is acceptable.



Package details and loading show:



packed with woode case;package size:0.55*0.41*0.45m;gross weight:41KG.



Europe Tecumseh fully enclosed air-cooled condensing unit performance table





Model HP OUT TEMP℃ Cooling capacity(W) PIPER
Evaporation temperature ℃
-20 -15 -10 -5 0 7.2 10 15 Suction Liquid
CAJ2446ZBR 1 32 180 360 547 750 1047 1205 1456 1724 12.7 1/2 9.5 3/8
CAJ/TAJ2446ZBR 1 1/2 32 128 459 771 1080 1491 1692 1995 2296 15.9 5/8 9.5 3/8
TFH2480ZBR 2 32 435 852 1233 1628 2223 2519 2980 3147 15.9 5/8 9.5 3/8
TFH2511ZBR 3 32 395 992 1520 2105 2892 3301 3895 4485 15.9 5/8 9.5 3/8
TAG2516ZBR 4 32 941 1631 2354 3146 4317 4940 5941 7011 22.2 7/8 9.5 3/8
TAG2522ZBR 6 32 1307 2146 3020 3971 5368 6107 7291 8553 28.6 1 1/8 9.5 3/8



Model Europe Tecumseh Condensing unit assembly size and electrical performance table
amount of oil cm³ Air volume m³/h Reservoir dm³ (V) NW Kg Working Maximum Input
current current power
1Ph 3Ph A A W
CAJ2446ZBR 887 1130 2.35 220   39 4.35 8.73 833
CAJ/TAJ2446ZBR 887 980 2.35 220 380 40 6.18 11.2 1198
TFH2480ZBR 1625 2200 3.9   380 60 2.79 4.33 1639
TFH2511ZBR 1625 2250 3.9   380 60 3.64 5.43 2031
TAG2516ZBR 1960 4800 6   380 106 5.18 10.7 3151
TAG2522ZBR 1960 4800 6   380 110 6.09 14.9 3799
Model Europe Tecumseh Condensing unit assembly size and electrical performance table
Dimensions GAS Cylinder displacement cm³ picture
A B C D E F
mm mm mm mm mm mm
CAJ2446ZBR 310 485 340 430 310 385 R404A 26.15 5
CAJ/TAJ2446ZBR 310 490 340 430 310 385 R404A 34.45 5
TFH2480ZBR 415 630 450 510 430 190 R404A 53.2 8
TFH2511ZBR 415 630 450 510 430 190 R404A 74.25 8
TAG2516ZBR 452 618 469 1002 405 854 R404A 112.5 11
TAG2522ZBR 464 642 469 1002 405 854 R404A 134.8 11
