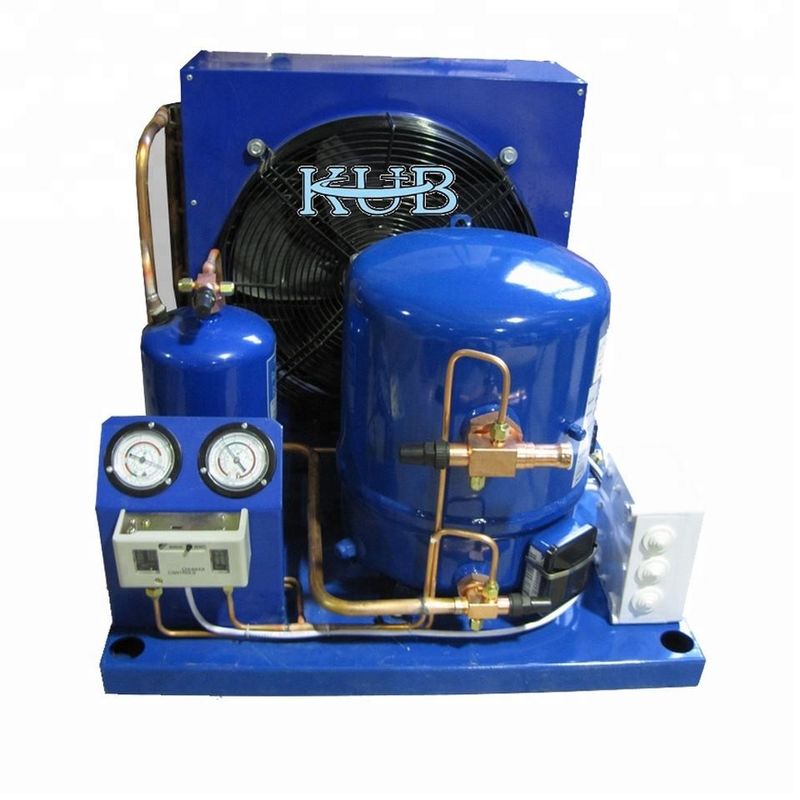

MTZ64M Hermetic Compressor Condensing Unit For Cold Storage

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number MTZ64
Minimum Order Quantity 1Piece
Price Consult
Packaging Details Pallet packaging
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New Weight (KG) 150
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Core Components Compressor Place Of Origin Shanghai, China
Warranty 1 Year Refrigerant R404a
Product Name Cold Room Condensing Unit Application Refrigeration Parts
Voltage 380V/3Ph/50Hz Temperature 10 ~-18
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Machinery Test Report Provided
Warranty Of Core Components 1 Year Type Condensing Unit
Brand Name KUB After-sales Service Provided Online Support
Compressor Hermetic Compressor Condenser Type Air Cooler
Condenser Air Cooled Condenser Made
High Light

Cold Storage Condensing Unit MTZ64M

,

Cold Storage Compressor Condenser Unit

,

Hermetic Cooler Condenser Unit

Leave a Message
Product Description

KUB FH42 MTZ64M MTZ64 compressor condensing unit Cold storage condensing units



Compressor model MTZ64 Compressor gas

R404a





Unit Model Compressor Model Power HP Refrigerant Cooling w Air condenser
Cooling surface (m²) Air Row (m³/h) Fan Dia (mm) power (w)
MGM26 MT28 2.5 R22 4700
MGM36 MT36 3.0 R22 6010
MGM50 MT50 4.2 R22 7400
MGM64 MT64 5.3 R22 9780
MGM80 MT80 6.7 R22 12380
MGM100 MT100 8.3 R22 14340
MGM125 MT125 10.0 R22 19190
MGM160 MT160 13.3 R22 24090

KUB FH22 MT28H MT28 2.5 R22 4700 22 1*3000 1x400 380V
KUB FH28 MT36H MT36 3.0 R22 6010 28 2*1800 2x350 380V
KUB FH42 MT50H MT50 4.0 R22 7400 42 2*3000 2x400 380V
KUB FH49 MT64H MT64 5.0 R22 9780 49 2*3000 2x400 380V
KUB FH60 MT80H MT80 6.7 R22 12380 60 2*4500 2x450 380V
KUB FH60 MT100H MT100 8.0 R22 14340 80 4*3000 4x400 380V
KUBFH100MT125H MT125 10.0 R22 19190 100 4*3000 4x400 380V
KU8 FH130 MT160H MT160 13.0 R22 24090 130 4*3000 4x400 380V

KUB FH18 MTZ28M MT28 2.5 R22 2730 18 1*3000 1x400 380V
KUB FH22 MTZ36M MT36 3.0 R22 3560 22 1*3000 1X400 380V
KUB FH33 MTZ50M MT50 4.0 R22 4280 33 2*3000 2x400 380V
KUB FH42 MTZ64M MT64 5.0 R22 5690 42 2*3000   380V
KUB FH49 MTZ80M MT80 6.7 R22 7330 49 2*3000 2x400 380V
KUB FH60MTZ100M MT100 8.0 R22 8210 60 4*3000 4x400 380V
KUB FH80MTZ125M MT125 10.0 R22 11450 80 4*3000 4x400 380V
KUBFH130MTZ160M MT160 13.0 R22 14460 120 4*3000 4x400 380V





Unit Model Evaporatinfl Temperature ( ) Evaporatinfl Temperature ( )
-20 -15 -10 -5 0 5 10
MGM26
MGM36 3070 4110 5300 6630
MGM50 3740 4950 6430 8240
MGM64 4710 6400 7520 10750
MGM80 6000 8150 10650 13530
MGM100 7180 9700 12700 16260
MGM125 9800 13000 16860 21380
MGM160 12460 16430 21190 26830
KUB FH22 MT28H     3660 4700 5890 7220 8720
KUB FH28 MT36H     4710 6010 7470 9090 10900
KUB FH42 MT50H     5680 7400 9470 11940 14860
KUB FH49 MT64H     7570 9780 12370 15370 18830
KUB FH60 MT80H     9670 12380 15500 19060 23110
KUB FH60 MT100H     11010 14340 18270 22870 28190
KUB FH100 MT125H     14990 19190 24120 29880 36540
KUB FH130 MT160H     18850 24090 30290 37560 46000
  -5 -10 -15 -20 -25 -30 -35
KUB FH18MTZ28M 4700 3660 2730
KUB FH22 MTZ36M 6010 4710 3560
KUB FH33 MTZ50M 7400 5680 4280 3140
KUB FH42 MTZ64M 9780 7570 5690 4100
KUB FH49 MTZ80M 12580 9670 7330 5320
KUB FH60 MTZ100M 14340 11010 8210 S870
KUB FH80 MTZ125M 19190 14990 114S0 8480
KUB FH130 MTZ160M 24090 18850 14460 10810





Unit Model Connection spec(mm) Dimension(mm) Power Source
inlet outlet Pipe L W H 50/60Hz
MGM26 12 10 600 700 S7S 380/3P
MGM36 16 10 600 700 575 380/3P
MGM50 22 12 1010 710 575 380/3P
MGM64 22 12 1050 710 675 380/3P
MGM80 28 16 1050 710 775 380/3P
MGM100 28 16 12S0 810 87S 380/3P
MGM125 28 16 1250 810 980 380/3P
MGM160 28 16 1250 810 1200 380/3P

KUS FH22 MT28H 12 10 700 600 500 380/3P
KUB FH28 MT36H 16 10 1050 710 530 380/3P
KUB FH42 MT50H 22 12 1050 710 580 380/3P
KUB FH49 MT64H 22 12 1050 710 580 380/3P
KUB FH60 MT80H 22 12 1250 710 680 380/3P
KUB FH80 MT100H 28 16 1010 810 980 380/3P
KUB FH100 MT125H 28 16 1010 810 1280 380/3P
KUB FH130 MT160H 28 16 1010 810 1280 380/3P

KUB FH18 MTZ28M 12 10 700 600 580 380/3P
KUB FH22 MTZ36M 16 10 1050 710 530 380/3P
KUB FH33 MTZ50M 22 12 1050 710 580 380/3P
KUB FH42 MTZ64M 22 12 1050 710 580 380/3P
KUB FH49 MTZ80M 22

12

1050 710 680 380/3P
KUB FH60MTZ100M 28 16 1010 810 960 380/3P
KUB FH80 MTZ125M 28 16 1010 810 1280 380/3P
KUB FH130MTZ160M 28 16 1010 810 1280 380/3P
