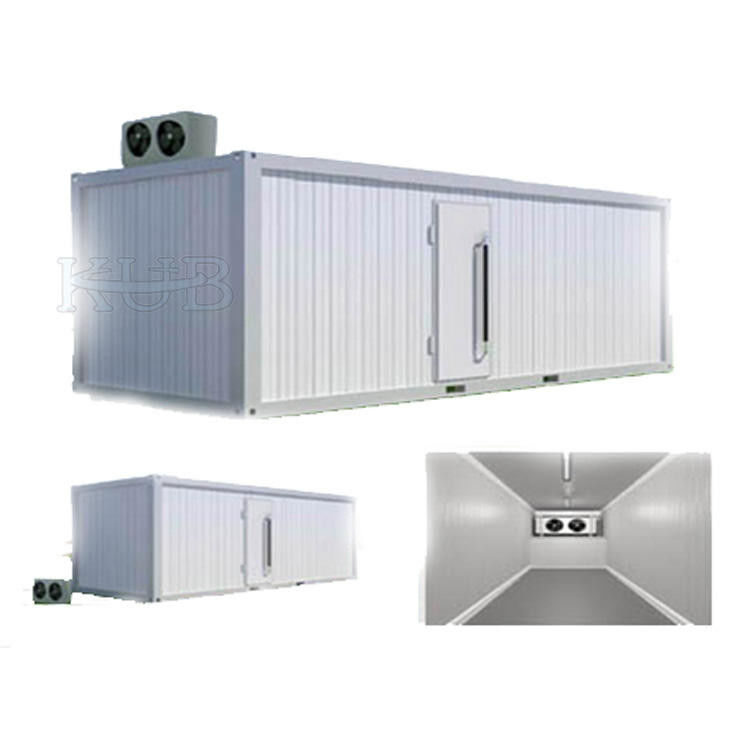

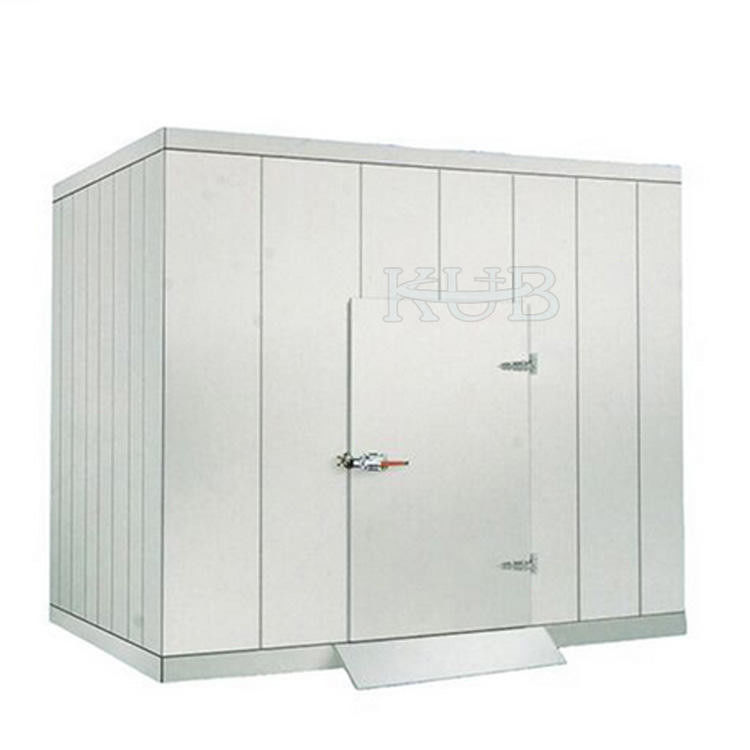

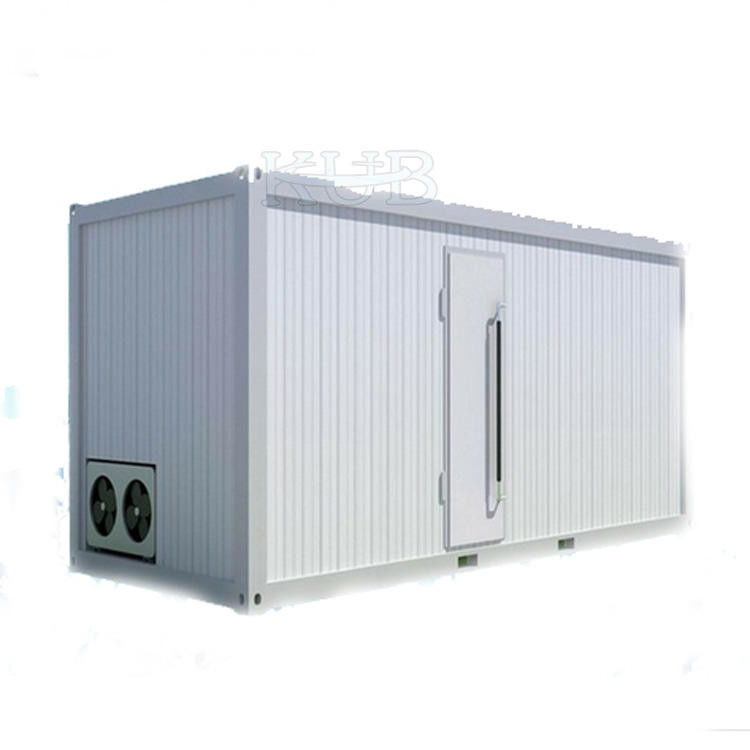

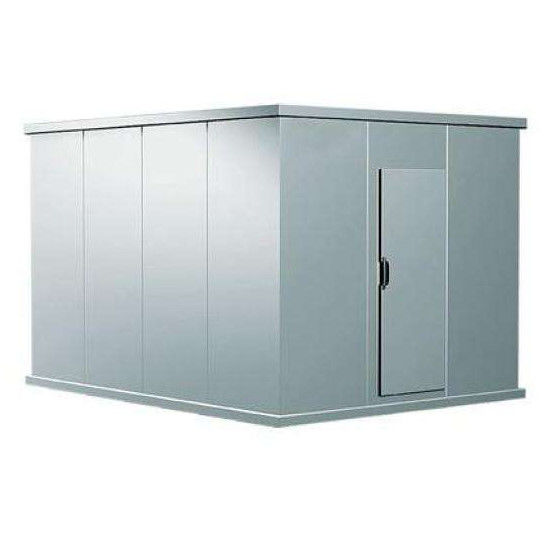

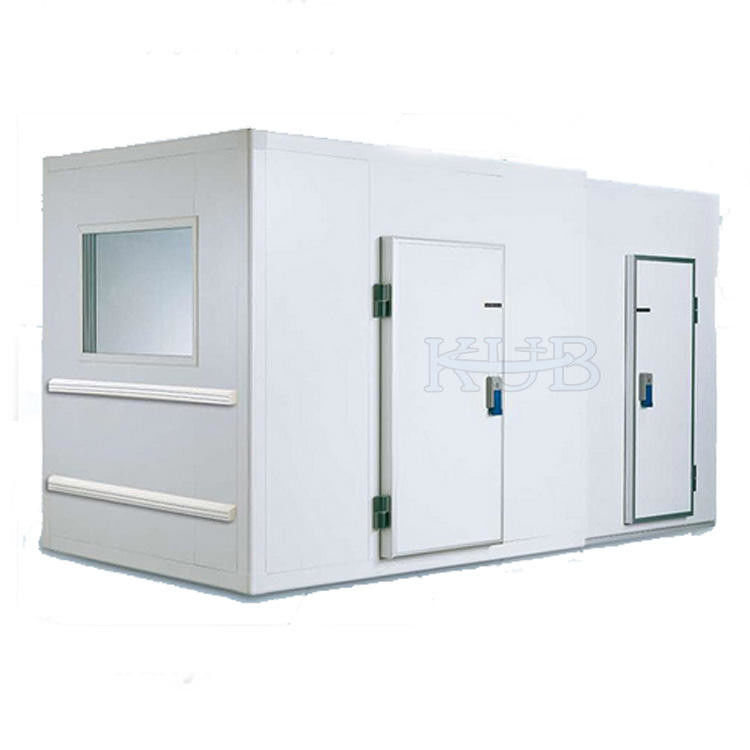

20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel

20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel

Blast Freezer Cold Room

20 Cubic Blast Cold Storage Room

Freezer Cold Room Insulation Panel

Place of Origin:

Shanghai, China

Brand Name:

KUB

Certification:

CE

Model Number:

KUB500

Contact Us
Request A Quote
20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel
20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel
Product Details
Applicable Industries::
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Place Of Origin::
Shanghai, China
Voltage:
380v 50hz, 380V 50HZ
Weight:
2000 KG
Key Selling Points::
Easy To Operate
Panel Thickness::
150mm
Machinery Test Report::
Provided
Warranty Of Core Components::
1 Year
Feature::
Cold Room
Product Name::
Cold Storage Room
Refrigerant:
R404A
Cold Room Doors::
Hinger Swing Door
Advantage::
Long Life
Condition:
New
Temperature:
-20℃
Brand Name::
KUB
Dimension(L*W*H)::
4*2*2.5m
Warranty::
ONE YEAR
Compressor Brand::
Famous
Cooling Capacity::
Other
Video Outgoing-inspection::
Provided
Core Components::
Compressor
Usage:
Cold Storage
After-sales Service Provided::
Online Support
Application::
Cold Storage Room Freezer Room
Panel:
150Mm PU Panels
Condensing Unit::
Air-cooled Condensing Unit
Keywords::
Freezer Room Used
Highlight:

Blast Freezer Cold Room

,

20 Cubic Blast Cold Storage Room

,

Freezer Cold Room Insulation Panel

Payment & Shipping Terms
Minimum Order Quantity
1Piece
Price
Consult
Packaging Details
Pallet packaging
Delivery Time
15days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Year
RELATED PRODUCTS
Good price EK309S Cold Storage Parts Refrigeration Suction Line Filter Drier online Video

EK309S Cold Storage Parts Refrigeration Suction Line Filter Drier

Get Best Price
Good price KUB-4 Cold Storage Parts Refrigeration Manifold Pressure Gauge online Video

KUB-4 Cold Storage Parts Refrigeration Manifold Pressure Gauge

Get Best Price
Good price YL-110 Balance Window Circular Cold Storage Parts Pressure Relief online Video

YL-110 Balance Window Circular Cold Storage Parts Pressure Relief

Get Best Price
Good price TEX5 067B3263 Shanghai factory provide refrigeration parts power assembly R22 thermal expansion online Video

TEX5 067B3263 Shanghai factory provide refrigeration parts power assembly R22 thermal expansion

Get Best Price
CONTACT US
13588563336
kub02@shkubao.com
86-021-53750132
Contact Now
Product Description

20 cubic minus 20 degrees blast freezer cold storage low temperature freezer cold room

Cold storage support custom production, please contact me for more parameters



NO. ITEM DESCRIPTION QTY Unit Price (USD) Amount(USD)
Exterior Protection Structure
Cold room External dimensions 4*2*2.5m=20m³ Temperature : -20degree 150mm panels
1

Insulation Panel

Thickness: 150mm/0.40mm,

Two side painted steel

 46 35/square 1610
2 Hinged door

800*1800mm

Plastic frame half buried

door

Two side painted steel

 1 400/set 400
3 LED light 8w 220v 50hz 1 10/pcs 10
Refrigeration System
4

Condensing unit

Box type air cooler

condensing unit

Use compressor

compressor YF35E1G

5HP R404A 380V 3PH 50HZ

 1 780/set 780
5

Evaporator

Model: DD/40

Refrigerant gas: R 404A

Fan voltage :380v 3ph 50hz

electric defrost

 1 450/set 450
6

Expansion Valve

TE2 R404A

 1 45/set 45
7 Control box

Model: ECB5060(5HP)

380V 3PH 50HZ

 1 150/pcs 150
8 Pipe

Copper pipes

19mm

10m/room/set

 1 20/m 200
9 Pipe

Copper pipes

12mm

10m/room/set

 10 15/m 150
  TOTAL (EXW Shanghai factory price )     3795







20 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 020 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 120 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 220 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 320 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 420 Cubic Cold Storage Parts Low Temperature Blast Freezer Cold Room With Insulation Panel 5
