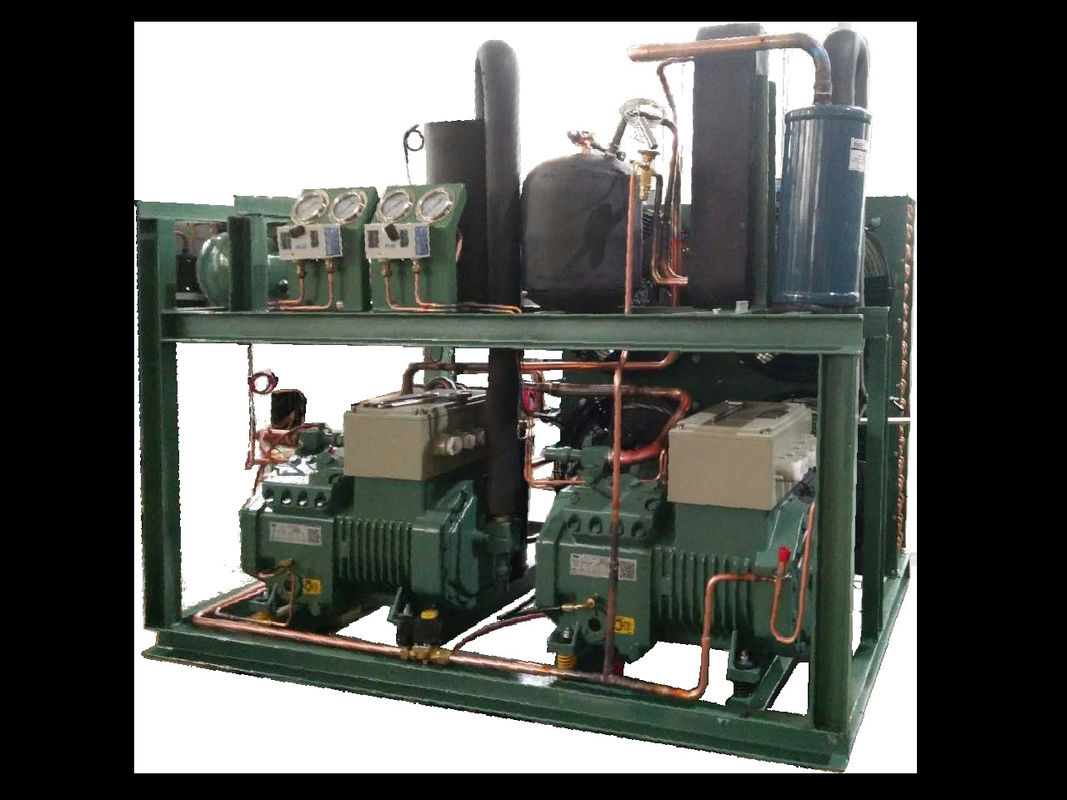

20HP Cascade Cold Room Refrigeration Unit Low Temperature Condensing Unit

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number 8HP/10HP/12HP15HP/20HP
Minimum Order Quantity 1Pieces
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New Weight (KG) 200
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Core Components Compressor Place Of Origin Shanghai, China
Warranty 1 Year Refrigerant R404A/R23
Temperature Low Temperature Original Made In China
MOQ 1 Package Wooden Case
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location None
Machinery Test Report Provided Warranty Of Core Components 1 Year
Type Condensing Unit Brand Name KUB
Product Name Refrigeration Unit Voltage 380v 220v
Application Cold Storage After Warranty Service 12 Months
Condenser Type Air Cooler Condenser
High Light

Cold Room Refrigeration Unit Low Temperature

,

Cascade Low Temperature Condensing Unit

,

Cold Room Refrigeration Unit 20HP

Leave a Message
Product Description
Supply Ability
Supply Ability
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden
Port
shanghai
Lead Time:
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 20 25 To be negotiated

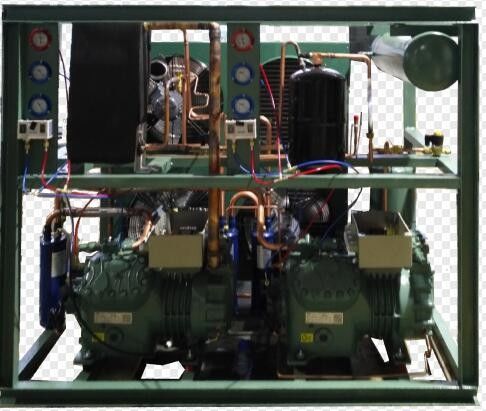

8HP to 20HP cold room refrigeration unit low temperature refrigeration condensing unit cascade refrigerator unit

Customized products, if you need more parameters, please contact the factory

Application scenarios: occasions that require low temperature applications, such as blood plasma freezing, test cold storage, electronic factory aerospace simulation test, according to different customer needs, generally divided into several requirements, there are -60 degrees, -70 degrees, some -110 degrees, we can provide to customers. Main features: compressors include Bitzer piston, Taikang piston, Shenyang Copeland piston, Bitzer screw and other famous brand compressors, all of which can be used as cascade units, and small ones are generally air-cooled.

Compressor Horsepower First stage R404A Second stage R23 “-70℃ refrigeration capacity KW
8HP 4YD10Y 4YD8Y 4.5
10HP 4YD12Y 4YD10Y 5
12HP 4YD15Y 4YD12Y 6.1
15HP 4YD20Y 4YD15Y 9.2
20HP 4YD20Y 4YD20Y 10.5

We provide many different types of cascade units, the following is a partial list of models:

The cascade refrigeration cycle is mainly composed of two complete refrigeration systems, a high-temperature part and a low-temperature part. Among them, the evaporator of the high temperature part is the condenser of the low temperature part, so it is called the evaporative condenser, and the rest is basically the same as the general refrigeration device.

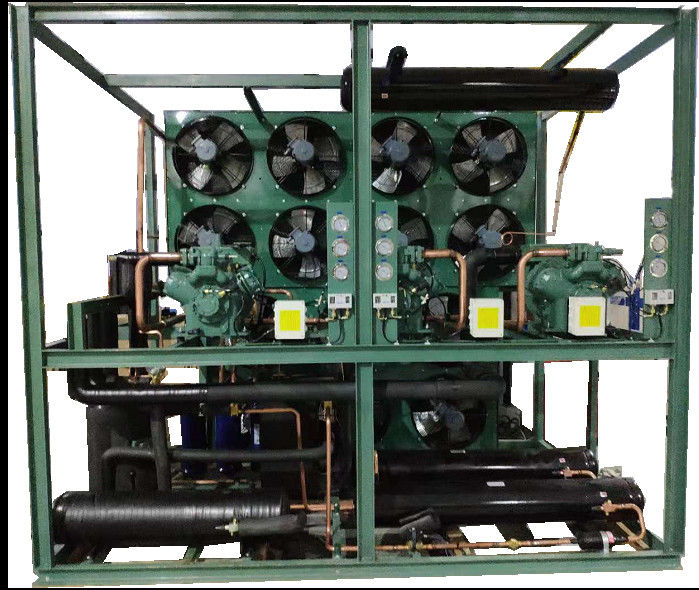

8HP to 20HP cold room refrigeration unit low temperature refrigeration condensing unit cascade refrigerator unit

(1) Filter drier: It can remove the moisture and impurities in the liquid refrigerant from the condenser, and prevent the formation of ice blockage and dirty blockage at the expansion valve or filter drier.

(2) Solenoid valve: It automatically cuts off the liquid supply to prevent excessive refrigerant from entering the evaporator after shutdown, so as to avoid wet stroke or liquid shock when the machine is turned on next time.

(3) Regenerator: heat exchange between the supply liquid and the return air, supercool the liquid refrigerant, increase the refrigeration capacity per unit mass, and at the same time increase the superheat of the return air to prevent the wet stroke and liquid hammer of the compressor.

(4) Oil separator: Separate the lubricating oil from the compressor exhaust and return it to the crankcase to prevent the oil from entering the heat exchanger and affecting the heat transfer efficiency, while ensuring the lubrication of the compressor.
