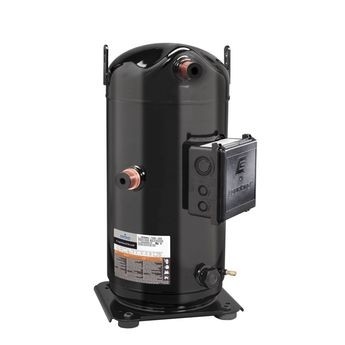

R410A Parallel Scroll Air Conditioner Compressor 3 Phase
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V-420V,50HZ | Warranty | 1 Year |
|---|---|---|---|
| Refrigerating Capacity | 118.4 Kw | Power Frequency Phase Number | 50Hz，3 Phase |
| Cryogen | R410A | ||
| Highlight | 3 Phase Air Conditioner Compressor,Parallel Scroll Air Compressor,R410A Scroll AC Compressor |
||
Product Description
ZP485KCE-TWD air conditioner compressor Parallel compressor R22/407C/R410A
The Copeland Scroll commercial AC compressor family is designed for superior efficiency and performance. The product's light, compact design can offer significant applied cost savings.
Features
Commercial (3-phase only) fixed speed compressor
Optimized for R22/407C/R410A
On-board CoreSense technology provides protection, diagnostics and communication capabilities
Emerson / Emerson Copeland / Valley scroll compressor ZP / VP series, the application of 3KW (zp14) to 180kW (zp725) single compressor, double compressor parallel and three compressor parallel technology expands the capacity of the system to 430kw and 650kw.
Valley scroll compressor ZP / VP series, R410A refrigerant is applicable. Valley scroll compressor is perfectly applied to split machine, roof machine, unit machine and chiller system in the industry. The axial and radial flexibility technology of the scroll compressor makes the scroll compressor have a greater tolerance to the passage of liquid refrigerant and impurities, so as to improve the reliability of the compressor. Furthermore, Emerson / Emerson's professional experience in multi compressor parallel makes us have unique advantages in the solution of large-scale air-cooled and water-cooled systems.
Cooling Capacity, kW
| Cond °C |
-20.0 | -15.0 | -10.0 | -5.0 | 0.0 | 5.0 | 10.0 | 12.5 | 15.0 |
| 25.0 | 56.30 | 68.70 | 83.10 | 99.90 | 119.00 | 141.50 | 166.50 | ||
| 30.0 | 53.20 | 65.10 | 79.00 | 95.10 | 113.50 | 135.00 | 159.00 | 172.50 | 186.50 |
| 35.0 | 49.90 | 61.40 | 74.60 | 90.00 | 108.00 | 128.00 | 151.00 | 164.00 | 177.50 |
| 40.0 | 46.60 | 57.40 | 70.10 | 84.70 | 101.50 | 121.00 | 143.00 | 155.00 | 168.00 |
| 45.0 | 53.30 | 65.30 | 79.00 | 95.00 | 113.00 | 134.00 | 145.50 | 158.00 | |
| 50.0 | 60.20 | 73.10 | 88.00 | 105.00 | 124.50 | 135.50 | 147.00 | ||
| 55.0 | 66.70 | 80.50 | 96.50 | 115.00 | 125.00 | 135.50 | |||
| 60.0 | 72.50 | 87.10 | 104.00 | 113.50 | 123.00 | ||||
| 65.0 | 63.50 | 76.70 | 91.90 | 100.50 | 109.50 |
Power, kW
| Cond °C |
-20.0 | -15.0 | -10.0 | -5.0 | 0.0 | 5.0 | 10.0 | 12.5 | 15.0 |
| 25.0 | 17.90 | 18.30 | 18.80 | 19.40 | 20.20 | 21.20 | 22.40 | ||
| 30.0 | 19.85 | 20.30 | 20.70 | 21.30 | 21.90 | 22.80 | 23.90 | 24.50 | 25.20 |
| 35.0 | 22.00 | 22.40 | 22.90 | 23.30 | 24.00 | 24.70 | 25.60 | 26.20 | 26.80 |
| 40.0 | 24.40 | 24.80 | 25.30 | 25.70 | 26.30 | 26.90 | 27.80 | 28.30 | 28.80 |
| 45.0 | 27.50 | 28.00 | 28.40 | 28.90 | 29.50 | 30.30 | 30.70 | 31.20 | |
| 50.0 | 31.00 | 31.50 | 31.90 | 32.50 | 33.10 | 33.50 | 34.00 | ||
| 55.0 | 34.90 | 35.30 | 35.80 | 36.40 | 36.80 | 37.20 | |||
| 60.0 | 39.10 | 39.60 | 40.20 | 40.50 | 40.80 | ||||
| 65.0 | 43.40 | 43.90 | 44.40 | 44.70 | 45.00 |
Current at 400 V, A
| Cond °C |
-20.0 | -15.0 | -10.0 | -5.0 | 0.0 | 5.0 | 10.0 | 12.5 | 15.0 |
| 25.0 | 35.63 | 36.12 | 36.71 | 37.45 | 38.39 | 39.61 | 41.16 | ||
| 30.0 | 38.06 | 38.57 | 39.14 | 39.83 | 40.69 | 41.79 | 43.19 | 44.02 | 44.94 |
| 35.0 | 40.82 | 41.38 | 41.95 | 42.60 | 43.39 | 44.39 | 45.65 | 46.40 | 47.24 |
| 40.0 | 43.98 | 44.59 | 45.18 | 45.81 | 46.56 | 47.47 | 48.61 | 49.29 | 50.04 |
| 45.0 | 48.27 | 48.89 | 49.53 | 50.24 | 51.08 | 52.12 | 52.73 | 53.41 | |
| 50.0 | 53.15 | 53.80 | 54.49 | 55.29 | 56.24 | 56.79 | 57.41 | ||
| 55.0 | 58.69 | 59.38 | 60.14 | 61.02 | 61.53 | 62.10 | |||
| 60.0 | 64.96 | 65.70 | 66.54 | 67.00 | 67.52 | ||||
| 65.0 | 71.29 | 72.03 | 72.83 | 73.27 | 73.75 |
Suction Mass Flow, g/s
| Cond °C |
-20.0 | -15.0 | -10.0 | -5.0 | 0.0 | 5.0 | 10.0 | 12.5 | 15.0 |
| 25.0 | 307.00 | 370.00 | 442.00 | 525.00 | 621.00 | 729.00 | 851.00 | ||
| 30.0 | 304.00 | 367.00 | 440.00 | 524.00 | 619.00 | 728.00 | 850.00 | 917.00 | 988.00 |
| 35.0 | 300.00 | 364.00 | 437.00 | 521.00 | 616.00 | 725.00 | 848.00 | 915.00 | 986.00 |
| 40.0 | 296.00 | 360.00 | 433.00 | 517.00 | 612.00 | 721.00 | 844.00 | 911.00 | 983.00 |
| 45.0 | 355.00 | 428.00 | 512.00 | 607.00 | 716.00 | 839.00 | 906.00 | 977.00 | |
| 50.0 | 422.00 | 506.00 | 601.00 | 709.00 | 832.00 | 899.00 | 971.00 | ||
| 55.0 | 498.00 | 593.00 | 701.00 | 823.00 | 891.00 | 963.00 | |||
| 60.0 | 584.00 | 691.00 | 814.00 | 882.00 | 954.00 | ||||
| 65.0 | 574.00 | 682.00 | 805.00 | 873.00 | 945.00 |
