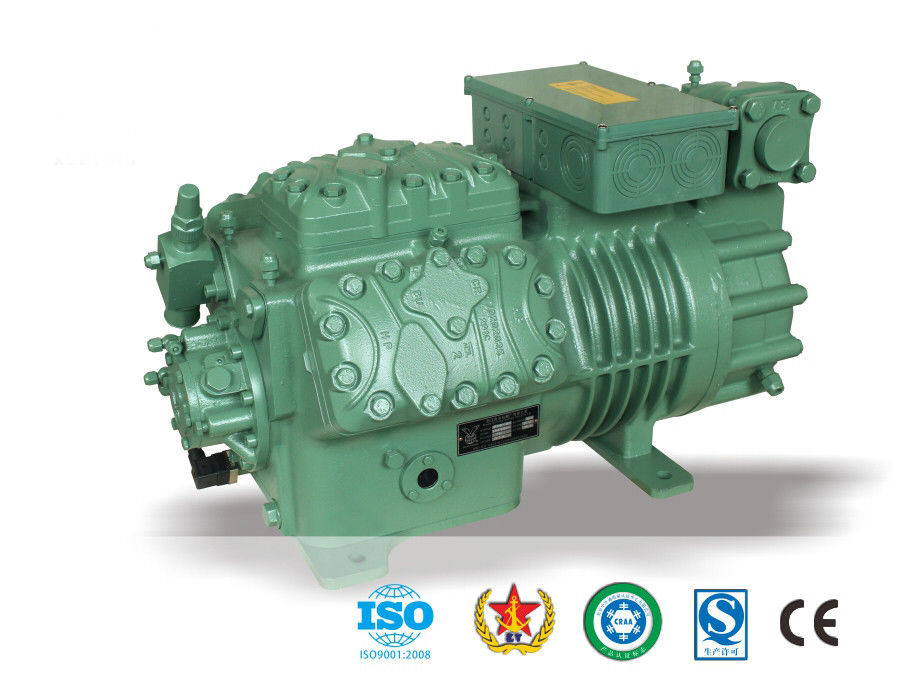

Semi Hermetic Piston Cold Storage Compressor 50HP BF50G6-151.6
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V/50HZ | Refrigerant | R404A/R507/R22 |
|---|---|---|---|
| MOQ | 1pcs | Warranty | 1 Year |
| Weight (KG) | 300 | ||
| Highlight | Cold Storage Compressor 50HP,Semi Hermetic Piston Cold Storage Compressor,Cold Storage Compressor BF50G6-151.6 |
||
Product Description
Technical Parameters
| Compressor model |
Nominal Power of Motor HP/KW |
Displacement (50HZ)m/h |
Number of Cylinder X Diameter X stroke mm |
Oil injection volume L |
Power supply V /Φ /HZ |
Electrical parameter |
Crankcase Heater (220V)W |
Oil supply method |
Weight Kg |
||
| pressure | High pressure |
Max operating current A |
Starting current /rotor locked current A |
||||||||
| BF50G6-151.6 | 50/37 | 151.6 | 6× Φ82 ×55 |
4.75 | 380~ YY420 /3/50 440~ YY480 /3/60 |
92 | 226/404 | 140 | Pump lubrication |
241 | |
The List Of Refrigerating Capacity
| Model | Condensing Temperature |
Refrigerating capacity Q0(KW) | ||||||||||||||
| Evaporating temperature ℃ | ||||||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | -45 | -50 | ||
| BF50G6-151.6 | 30 | 201.1 | 184.7 | 169.5 | 155.2 | 129.4 | 107.1 | 87.7 | 71.0 | 56.5 | 44.5 | 34.2 | ||||
| 40 | 182.1 | 167.2 | 153.3 | 140.3 | 116.9 | 96.5 | 78.8 | 63.6 | 50.5 | 39.4 | 30.0 | |||||
| 50 | 163.9 | 150.4 | 137.8 | 126.0 | 104.8 | 86.3 | 70.3 | 56.5 | 44.7 | 34.6 | ||||||
Indicate that the compressor must be attached with cooling or limited suction temperature.
Indicate that the compressor must be attached with cooling temperature and the maximum suction superheat degree should be less than 20 DEG C.
Indicate that the compressor must be attached with CIC system.
When the frequency is 60Hz, the refrigerating capacity is increased by 20%.
Aspirator,exhaust valve take-over
| Model | BF22Z6-95.3 | BF33G6-95.3 | BF25Z6-110.5 | BF35G6-110.5 | BF30Z6-126.8 | BF40G6-126.8 | BF40Z6-151.6 | BF50G6-151.6 |
| D1 mm | φ35(1 3/8") | φ35(1 3/8") | φ35(1 3/8") | φ35(1 3/8") | φ35(1 3/8") | φ35(1 3/8") | φ42(1 5/8") | φ42(1 5/8") |
| D2 mm | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") | φ54(2 1/8") |
