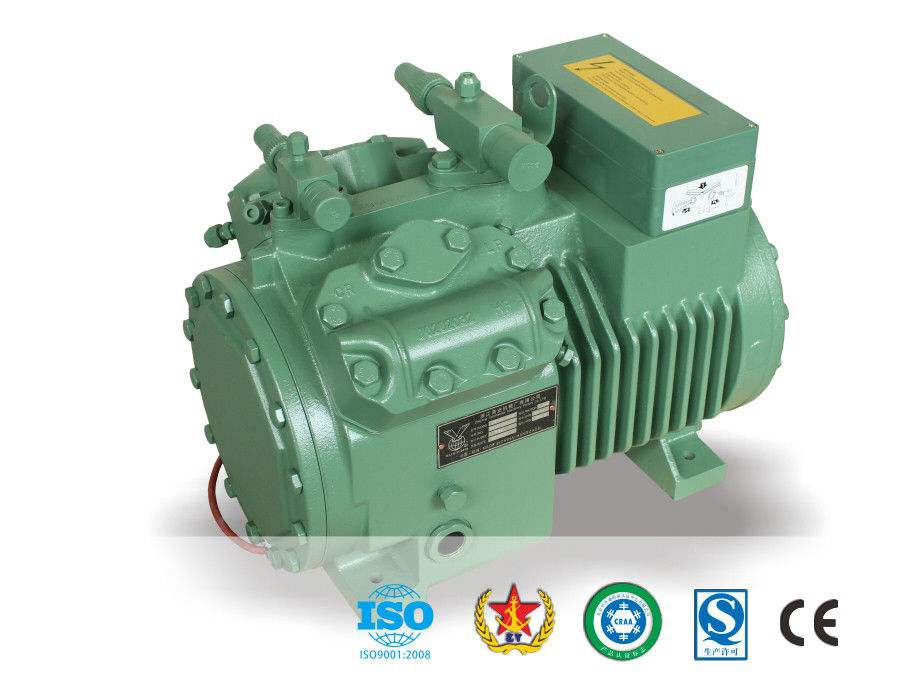

5HP Semi Hermetic Cold Storage Compressor BF5G4-18.1 For Cold Room
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V/50HZ | Refrigerant | R404A/R507/R22 |
|---|---|---|---|
| MOQ | 1pcs | Warranty | 1 Year |
| Weight (KG) | 300 | ||
| High Light | 5HP Semi Hermetic Cold Storage Compressor,Cold Room Semi Hermetic Compressor,Piston Semi Hermetic Compressor |
||
Product Description
5HP BF5G4-18.1 Made in China cold room compressor semi hermetic refrigeration compressor piston compressor
Technical Parameters
| Compressor model |
Nominal Power of Motor HP/KW |
Displacement (50HZ)m/h |
Number of Cylinder X Diameter X stroke mm |
Oil injection volume L |
Power supply V /Φ /HZ |
Electrical parameter |
Crankcase Heater (220V)W |
Oil supply method |
Weight Kg |
||
| pressure | High pressure |
Max operating current A |
Starting current /rotor locked current A |
||||||||
| BF5G4-18.1 | 5/3.7 | 18.05 | 4× Φ41 ×39.3 |
2.0 | 380~ 420YY /3/50 440~ 480YY /3/60 |
10.8 | 62.2 | 120 | entrifugal lubrication |
86 | |
The List Of Refrigerating Capacity
| Model | Condensing Temperature |
Refrigerating capacity Q0(KW) | ||||||||||||||
| Evaporating temperature ℃ | ||||||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | -45 | -50 | ||
| BF5G4-18.1 | 30 | 24.3 | 22.3 | 20.4 | 18.7 | 15.5 | 12.7 | 10.3 | 8.3 | 7.0 | 5.5 | 4.3 | 3.1 | 2.3 | ||
| 40 | 21.8 | 19.9 | 18.2 | 16.6 | 13.7 | 11.2 | 9.0 | 7.1 | 6.0 | 4.6 | 3.5 | 2.5 | 1.7 | |||
| 50 | 19.1 | 17.5 | 15.9 | 14.5 | 11.9 | 9.6 | 7.6 | 5.9 | 4.9 | 3.7 | 2.7 | 1.9 | ||||
Indicate that the compressor must be attached with cooling or limited suction temperature.
Indicate that the compressor must be attached with cooling temperature and the maximum suction superheat degree should be less than 20 DEG C.
Indicate that the compressor must be attached with CIC system.
When the frequency is 60Hz, the refrigerating capacity is increased by 20%.
