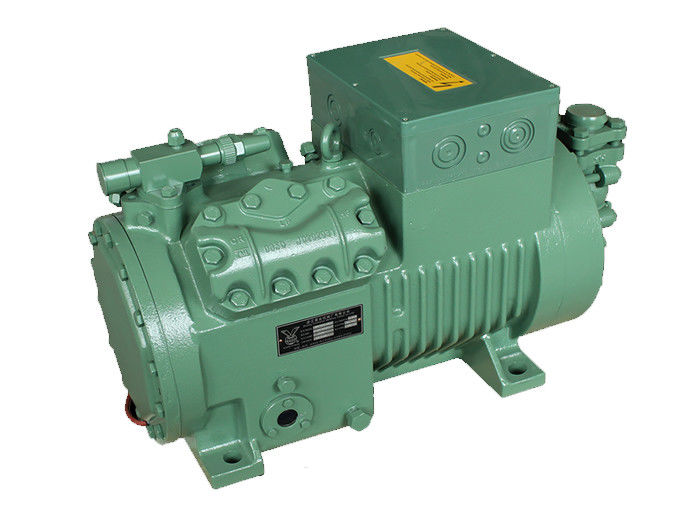

380V R22 3HP BR3Z4-18.1 Cold Storage Compressor Piston Type

  • 380V R22 3HP BR3Z4-18.1 Cold Storage Compressor Piston Type
  • 380V R22 3HP BR3Z4-18.1 Cold Storage Compressor Piston Type
Place of Origin Shanghai, China
Brand Name XUEYING
Certification CE
Model Number BR3Z4-18.1
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 30days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V/50HZ Refrigerant R404A/R507/R22
MOQ 1pcs Warranty 1 Year
Weight (KG) 300
High Light

BR3Z4-18.1 Cold Storage Compressor

,

3HP Cold Storage Compressor

,

Piston Type Cold Storage Compressor
Leave a Message
Product Description

3HP BR3Z4-18.1 Made in China cold room compressor semi hermetic refrigeration compressor piston compressor

Technical Parameters

Compressor
model		 Nominal Power
of Motor
HP/KW		 Displacement
(50HZ)m/h		 Number of
Cylinder
X
Diameter
X
stroke
mm		 Oil
injection
volume
L		 Power
supply
V
/Φ
/HZ		 Electrical
parameter		 Crankcase
Heater
(220V)W		 Oil
supply
method		 Weight
Kg
pressure High
pressure		 Max
operating
current
A		 Starting
current
/rotor
locked
current A
BF3Z4-18.1 3/2.2   18.05 4×
Φ41
×39.3		 2.0 380~
420YY
/3/50

440~
480YY
/3/60



 9.2 44.2 120 Centrifugal
lubrication		 82



The List Of Refrigerating Capacity
Model Condensing
Temperature		 Refrigerating capacity Q0(KW)
Evaporating temperature ℃
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45 -50
BF3Z4-18.1 30           12.7 10.3 8.3 7.0 5.5 4.2 3.1 2.3
40           11.2 9.0 7.1 6.0 4.6 3.5 2.5 1.7
50           9.6 7.6 5.9 4.9 3.7 2.7 1.9





Indicate that the compressor must be attached with cooling or limited suction temperature.



Indicate that the compressor must be attached with cooling temperature and the maximum suction superheat degree should be less than 20 DEG C.



Indicate that the compressor must be attached with CIC system.
When the frequency is 60Hz, the refrigerating capacity is increased by 20%.
