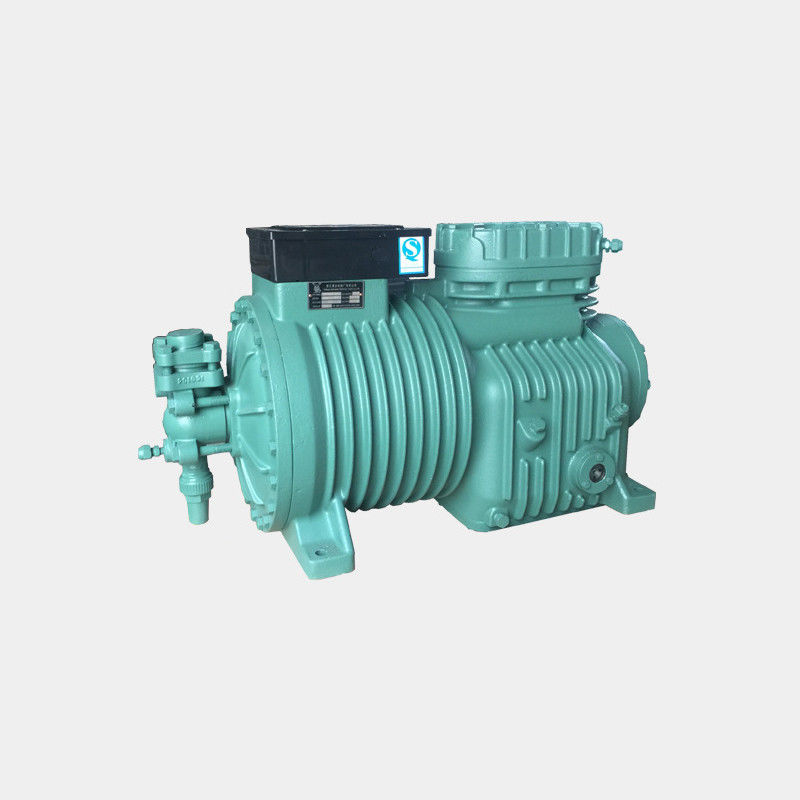

BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor

  • BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor
  • BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor
Place of Origin Shanghai, China
Brand Name XUEYING
Certification CE
Model Number BF8G2-26.8
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 30days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V/50HZ Refrigerant R404A/R507/R22
MOQ 1pcs Warranty 1 Year
Weight (KG) 300
Highlight

BF8G2-26.8 Cold Room Compressor

,

R507 Cold Room Compressor

,

8HP Semi Hermetic Piston Compressor
Leave a Message
Product Description

8HP BF8G2-26.8 Made in China cold room compressor semi hermetic refrigeration compressor piston compressor

Technical Parameters

Compressor
model		 Nominal Power
of Motor
HP/KW		 Displacement
(50HZ)m/h		 Number of
Cylinder X
Diameter X
stroke
mm		 Oil
injection
volume
L		 Power supply
V/Φ/HZ		 Electrical
parameter		 Crankcase
Heater
(220V)W		 Oil
supply
method		 Weight
Kg
pressure High
pressure		 Max
operating
current
A		 Starting
current
/rotor
locked
current A
BF8G2-26.8 8/5.5   26.8 2×Φ64×48 3.5 380~420/3/50
440~480/3/60		 13 41/74 120 Splash
lubrication		 154



THE LIST OF REFRIGERATING CAPACITY
Model Condensing
Temperature		 Refrigerating capacity Q0(KW)
Evaporating temperature ℃
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45 -50
BF8G2-26.8 30 36.0 33.0 29.8 27.0 21.5 19.3 15.4 12.4 9.6 7.3 5.4 3.8 2.5
40 32.2 29.5 26.6 24.8 19.8 17.0 13.4 10.5 8.2 6.0 4.4





Indicate that the compressor must be attached with cooling or limited suction temperature.



Indicate that the compressor must be attached with cooling temperature and the maximum suction superheat degree should be less than 20 DEG C.



Indicate that the compressor must be attached with CIC system.
When the frequency is 60Hz, the refrigerating capacity is increased by 20%



BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 0







Explanation of Dimension marking in the drawing
Model A B D1 D2 H L M P S W
BF8G2-26.8 280 380 25.4 31.7 448 585 160 297 390 330



BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 1BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 2BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 3BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 4BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 5BF8G2-26.8 Cold Room Compressor 8HP Semi Hermetic Piston Compressor 6
