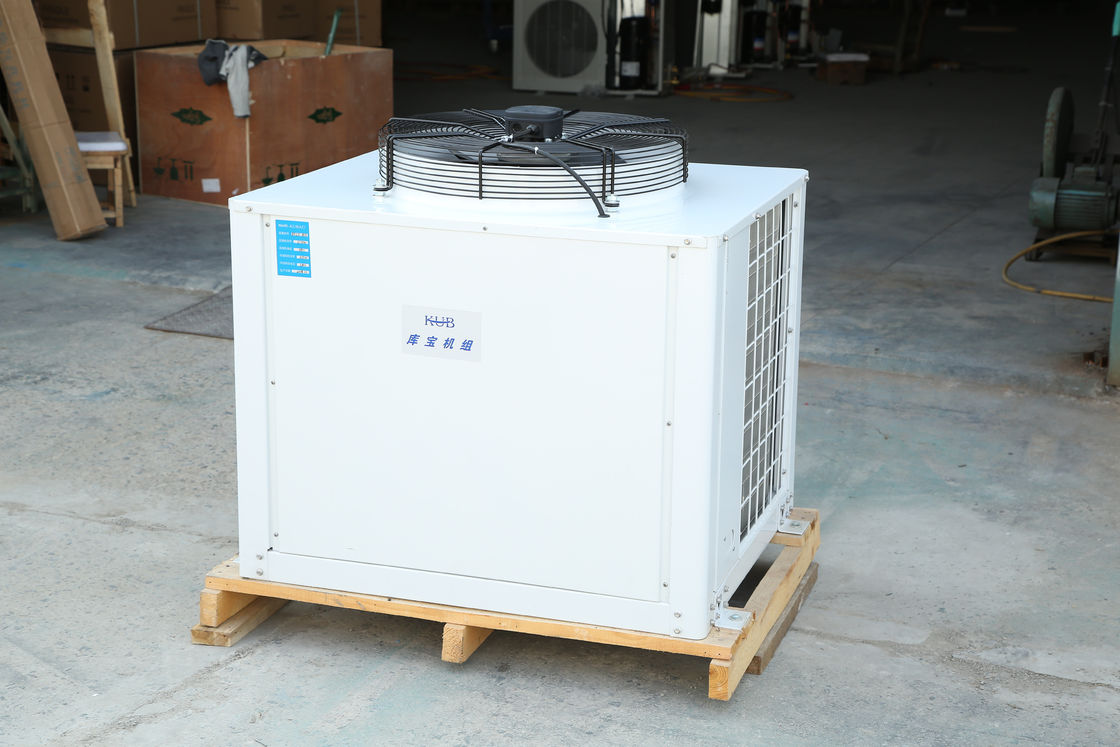

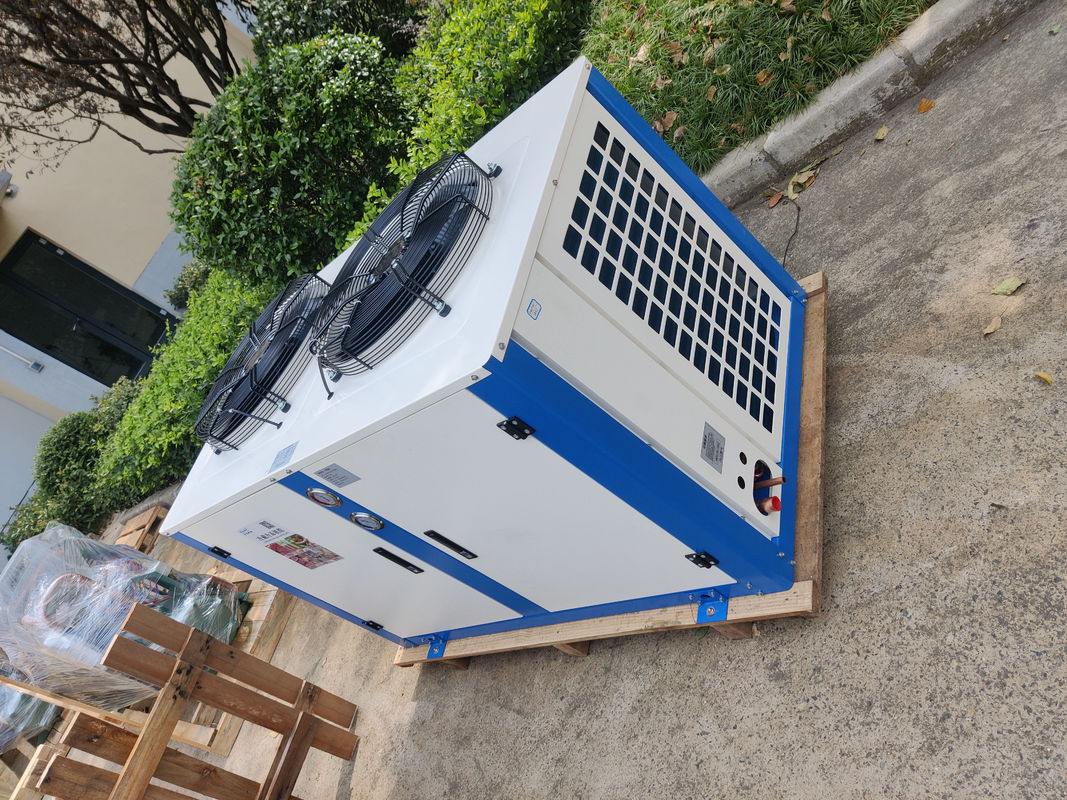

Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants

  • Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants
  • Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants
  • Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants
Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Condensing Unit After-sales Service Provided Engineers Available To Service Machinery Overseas
Refrigerant R404a Cooling Capacity From 1800W To 95600W
Voltage 380V/3Ph/50Hz Product Name Bitzer Condensing Unit
High Light

Box Type Semi Hermetic Condensing Unit

,

Cold Room Semi Hermetic Condensing Unit

,

Restaurants Semi Hermetic Condensing Unit
Leave a Message
Product Description

1. Produc t de sc ription:
According to demands of market, we design th is new series XJB -E on basis of XJB series. This new series products feature box
type structure with hermetic compressor and control box, which is compact and pleasant looking, applicable to cold display ca ses,
cold storage rooms, ice producers etc. The ap plicable temperature ranges are: -5℃~ 15℃, -5℃~5℃ and -15~-25℃. They can be
widely used in hotels, restaurants, medicines, agricu ltural, chemicals industries all other place where cold storage is needed.
Features of these series products:
◆ Electric compon ents were added on the basis of old XJB series ,including condensing unit, main control board, cold room
temp control board and operation board. Cold room temp control board and operation board are optional.
◆ Main control board can start/stop compressor by system low voltage, be suitable for super market, milk container, water
chiller etc. If all optional included, system can control compressor by temp., with function of temp. and defrosting adjustme nt.
The complete set of control system can be used for col d room directly, no extra controller required.
◆ With multi protections including phase protection, phase lack, over current, too constant start of compressor, discharge
temp and system high/low temp.
◆ With fan speed regulator, to adjust condensing fan ac cording to condensing temp.
◆ With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.
◆ With system alarm function. When fault effects, the system will make alarm beep sound to remind user.
◆ The operation board can show temp., setting, defrosting control, operation system data checking and coldroom temp.
alarm functions. It can be installed apart from condensing units for remote control.



Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 0

3. Ma in c ompone nts
①Compressor ②oil heating belt ③Vibration Eliminator ④ Oil Separator ⑤condenser ⑥liquid receiver ⑦ filter ⑧ sight glass
⑨solenoid valve ⑩H/L pressure gauge mechanical pressure switch Oil pressure protection oil/liquid accumulator Low
pressure control (for compressor)
XJB03MB⋯XJB09MB.XJB02MBY⋯XJB06MBY .XJB04LBY⋯XJB06LBY:
Standard :①.②.⑤.⑥.⑦. ⑧.⑩. ；
XJB10MB⋯XJB20MB.XJB09MBY⋯XJB14MBY .XJB09LBY⋯XJB14LBY:
Standard :①.②. ⑤.⑥.⑦.⑧. ⑩. ；Optional :④.
XJB25MB⋯XJB30MB.XJB18MBY⋯XJB23MBY.XJB18LBY⋯XJB34LBY:
Standard :①.②.③.④.⑤.⑥.⑦.⑧. ⑩. . ；Optional :
For condensing units with main controller only, is standard



4. Spe c ific a tions
1.Medi um Temperature series (Applicable for Te -5~-20℃):
1)R22 units

Model XJB03MB -E XJB04MB -E XJB05MB -E XJB06MB -E XJB07MB -E XJB09MB -E
Room temperature -5℃ ~5 ℃
Power supply 380V/3Ph/50HZ
Compressor model 2DES-3 2CES -4 4FES-5 4EES-6 4DES-7 4CES -9
Condenser Fan Qty 1 1 1 1 1 1
Fan Voltage(V) 220 220 220 220 220 220
Fan Input(W) 240 240 240 460 460 550
Cap.& input Te-5℃ Cap(W) 7850 9660 10300 13100 15660 19290
input(W) 2.97 3.65 3.83 4.9 5.8 7.22
Te-10℃ Cap(W) 6330 7820 8270 10540 12630 15610
input(W) 2.76 3.4 3.56 4.54 5.4 6.72
Te-15℃ Cap(W) 5040 6250 6540 8360 10400 12460
input(W) 2.53 3.12 3.25 4.14 4.94 6.16
Pipe Gas dia.(mm) φ22 φ22 φ22 φ28 φ28 φ28
Liquid dia.(mm) φ12 φ12 φ12 φ12 φ12 φ12
Overall sizes L (mm) 967 967 967 967 967 967
W (mm) 675 675 675 825 825 825
H (mm) 815 815 815 1035 1035 1035
Install sizes(A×B)(mm) 570×635 570×635 570×635 570×785 570×785 570×785



Model XJB12MB -E XJB15MB -E XJB20MB -E XJB25MB -E XJB30MB -E
Room temperature -5℃ ~5 ℃
Power supply 380V/3Ph/50HZ
Compressor model 4TES-12 4PES-15 4NES-20 4HE-25 4GE -30
Condenser Fan Qty 2 2 2 2 2
Fan Voltage(V) 220 220 220 220 220
Fan Input(W) 460×2 460×2 550×2 780×2 780×2
Cap.& input Te
-5℃		 Cap(W) 25200 28800 34000 45400 52600
input(W) 8.83 10.05 11.81 15.86 18.28
Te
-10℃		 Cap(W) 20200 23000 27200 36400 42400
input(W) 8.15 9.23 10.88 14.66 16.93
Te
-15℃		 Cap(W) 15920 17990 21400 28800 33600
input(W) 7.39 8.32 9.86 13.33 15.44
Pipe Gas dia.(mm) φ35 Φ42 φ42 φ54 φ54
Liquid dia.(mm) φ16 φ16 φ22 φ22 φ22
Overall sizes L (mm) 1354 1354 1870 1870 1870
W (mm) 825 825 925 925 925
H (mm) 1235 1235 1235 1235 1235
Install sizes (A×B) (mm) 950×785 950×785 755×885 755×885 755×885

Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp .45℃；
2)All fan motor for evaporator should with power supply 220V AC.



Model XJB02MBY -E XJB03MBY -E XJB04MBY -E XJB05MBY -E XJB06MBY -E
Room temperature -5℃ ~5 ℃
Power supply 380V/3Ph/50HZ
Compressor model 2DES-2Y 2CES -3Y 4EES-4Y 4DES-5Y 4CES -6Y
Condenser Fan Qty 1 1 1 1 1
Fan Voltage(V) 220 220 220 220 220
Fan Input(W) 240 240 460 460 550
Cap.& input Te
-5℃		 Cap(W) 7770 9590 13220 15800 19150
input(W) 3.41 4.16 5.76 6.8 8.13
Te
-10℃		 Cap(W) 6220 7700 10560 12610 15250
input(W) 3.13 3.84 5.34 6.3 7.51
Te
-15℃		 Cap(W) 4900 6100 8330 9940 11980
input(W) 2.84 3.5 4.87 5.75 6.82
Pipe Gas dia.(mm) φ22 φ22 φ28 φ28 φ28
Liquid dia.(mm) φ12 φ12 φ12 φ12 φ12
Overall sizes L (mm) 967 967 967 967 967
W (mm) 675 675 825 825 825
H (mm) 815 815 1035 1035 1035
Install sizes(A×B)(mm) 570×635 570×635 570×785 570×785 570×785



Model XJB09MBY -E XJB12MBY -E XJB14MBY -E XJB18MBY -E XJB23MBY -E
Room temperature -5℃ ~5 ℃
Power supply 380V/3Ph/50HZ
Compressor model 4TES-9Y 4PES-12Y 4NES-14Y 4HE-18Y 4GE -23Y
Condenser Fan Qty 2 2 2 2 2
Fan Voltage(V) 220 220 220 220 220
Fan Input(W) 460×2 460×2 550×2 780×2 780×2
Cap.& input Te-5℃ Cap(W) 24200 27600 32900 44200 51000
input(W) 10.18 11.29 13.63 18.39 22.0
Te-10℃ Cap(W) 19160 21800 26100 35400 41100
input(W) 9.28 10.27 12.48 16.89 20.1
Te-15℃ Cap(W) 14960 16850 20300 28000 32600
input(W) 8.32 9.17 11.23 15.3 18.21
Pipe Gas dia.(mm) φ35 φ35 Φ35 Φ42 φ54
Liquid dia.(mm) φ16 φ16 φ22 φ22 φ22
Overall sizes L (mm) 1354 1354 1870 1870 1870
W (mm) 825 825 925 925 925
H (mm) 1235 1235 1235 1235 1235
Install sizes(A×B)(mm) 950×785 950×785 755×885 755×885 755×885

Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp.45 ℃；
2)All fan motor for eva porator should with power supply 220V AC.



Model XJB04LBY-E XJB05LBY-E XJB06LBY-E XJB09LBY-E XJB12LBY-E XJB14LBY-E
Room temperature -15℃ ~-30℃
Power supply 380V/3Ph/50 HZ
Co mpressor model 4EES-4Y 4DES-5Y 4CES -6Y 4TES-9Y 4PES-12Y 4NES-14Y
Condenser Fan Qty 1 1 1 1 1 1
Fan Voltage(V) 220 220 220 220 220 220
Fan Input(W) 240 240 240 550 550 550
Te
-25℃		 Cap(W) 4940 5900 7040 8620 9500 11700
input(W) 3.84 4.55 5.36 6.35 6.88 8.58
Te
-30℃		 Cap(W) 3690 4400 5220 6310 6830 8550
input(W) 3.32 3.94 4.61 5.38 5.74 7.24
Te
-35℃		 Cap(W) 2680 3200 3760 4460 4710 6030
input(W) 2.8 3.34 3.89 4.46 4.64 5.94
Te
-40℃		 Cap(W) 1880 2250 2610 3000 3060 4060
input(W) 2.3 2.76 3.2 3.61 3.62 4.72
Pipe Gas dia.(mm) φ28 φ28 φ28 φ35 φ35 φ35
Liquid dia.(mm) φ12 φ12 φ12 φ16 φ16 φ22
Overall sizes L (mm) 967 967 967 967 967 967
W (mm) 675 675 675 825 825 825
H (mm) 815 815 815 1235 1235 1235
Install sizes(A×B)(mm) 570×635 570×635 570×635 570×785 570×785 570×785



Model XJB18LBY-E XJB23LBY-E XJB28LBY-E XJB34LBY-E
Room temperature -15℃ ~-30 ℃
Power supply 380V/3Ph/50 HZ
Compressor model 4HE-18Y 4GE -23Y 6HE-28Y 6GE -34Y
Condenser Fan Qty 2 2 2 2
Fan Voltage(V) 220 220 220 220
Fan Input(W) 460×2 460×2 550×2 780×2
Te
-25℃		 Cap(W) 16690 19670 23500 29700
input(W) 12.0 14.27 17.13 21.8
Te
-30℃		 Cap(W) 12450 14820 17760 22600
input(W) 10.35 12.33 14.78 18.95
Te
-35℃		 Cap(W) 9000 10870 12980 16680
input(W) 8.75 10.46 12.46 16.19
Te
-40℃		 Cap(W) 6220 7690 9070 11910
input(W) 7.23 8.71 10.22 13.56
Pipe Gas dia.(mm) φ42 Φ42 φ54 φ54
Liquid dia.(mm) φ22 φ22 φ22 φ22
Overall sizes L (mm) 1354 1354 1870 1870
W (mm) 825 825 925 925
H (mm) 1235 1235 1235 1235
Install sizes(A×B)(mm) 950×785 950×785 755×885 755×885

Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp.45 ℃；
2)All fan motor for evaporator should with power supply 220V AC.

Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 1



Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 2Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 3Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 4Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 5Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 6Cold Room Box Type Semi Hermetic Condensing Unit For Restaurants 7
