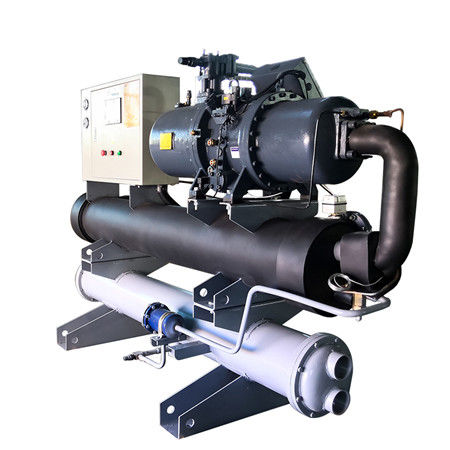

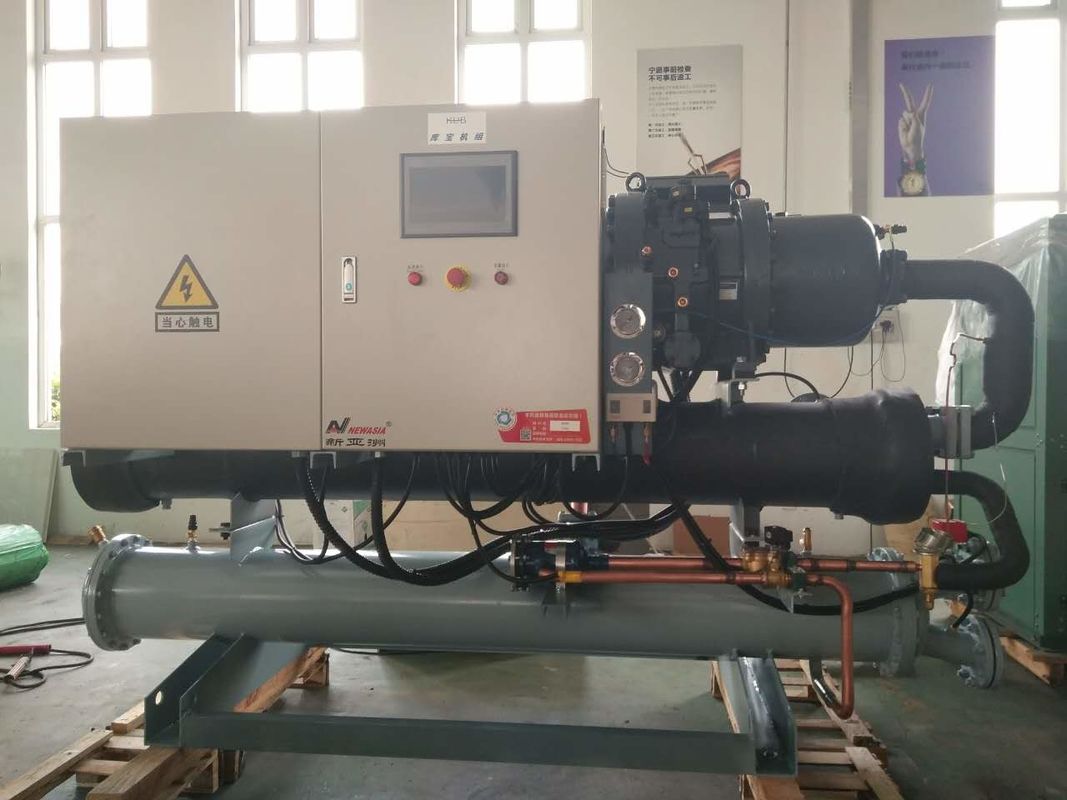

380V 270HP Screw Compressor Water Cooled Chiller High Efficiency

  • 380V 270HP Screw Compressor Water Cooled Chiller High Efficiency
  • 380V 270HP Screw Compressor Water Cooled Chiller High Efficiency
  • 380V 270HP Screw Compressor Water Cooled Chiller High Efficiency
  • 380V 270HP Screw Compressor Water Cooled Chiller High Efficiency
Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V/3Ph/50Hz Warranty 1 Year
After Warranty Service Online Support After-sales Service Provided Online Support
High Light

270HP Screw Water Cooled Chiller

,

380V Screw Water Cooled Chiller

,

27m3/H Refrigeration Condensing Unit
Leave a Message
Product Description

The BLG -M series screw temperature condensing unit can meet large, used in freezers with temperature is -5~5℃. Product features: With BITZER CSH screw compressors, high efficiency, long life, low vibration and low noise characteristics; Units fully equipped, with the main refrigeration and control components world famous brands and high reliability
With multi protection devices for compres sors wrong direction, overheating, overload, discharge temperature, oil level and high and low pressure, and thus ensuring high reliability of operation;
With CIC system, that will make the liquid line solenoid valve opens for liquid cooling when the disch arge temperature exceeds the set value.
With multiple levels of capacity regulation, adapting different cooling load, reduce energy consumption;
With PLC control and touch screen, can realize remote monitoring based on user ‘ requirements.



380V 270HP Screw Compressor Water Cooled Chiller High Efficiency 0



1 R22 Products
Model BLG S-50M BLG S-60M BLG S-70M BLG S-80M BLG S-90M BLG S-100M
Temperature (℃) -5℃~5℃
Power supply 380V/50HZ
Compressor model CSH6553-50 CSH6563 -60 CSH7553-70 CSH7563 -80 CSH7573-90 CSH7583 -100
Cap. & input Te 0℃ Cap (KW) 104.3 130.9 153.6 178.5 215.0 236.0
Input(KW) 29.6 36.8 44.4 50.1 57.8 66.2
Te -5℃ Cap (KW) 86.3 108.3 127.4 148.2 179.2 195.6
input(KW) 28.3 35.2 42.7 48.4 55.9 64.0
Te -10℃ Cap (KW) 70.5 88.5 104.3 121.5 147.7 160.4
input(KW) 26.9 33.4 41.3 47.0 54.2 62.1
Condenser Type Shell＆Copper Tube
Water flow (m3/h) 27 34 40 46 55 60
Cooling Pipe Dia. Rp2-1/2 Rp3 DN80 DN80 DN100 DN100
connect Gas in (mm) φ54 φ54 φ76 φ76 φ76 φ76
Liquid dia. (mm) φ28 φ28 φ35 φ35 φ35 φ35
Overall sizes L(mm) 1610 2110 2110 2550 2550 2550
W(mm) 900 900 900 900 900 900
H(mm) 1150 1150 1200 1200 1200 1200
Condensing temp 4 0℃



Model BLG S2-100M BLG S2-120M BLG S2-140M BLG S2-160M BLG S2-180M BLG S2-200M
Temperature(℃) -5℃~5℃
Power 380V/50HZ
Compressor model CSH6553 -50 CSH6563-60 CSH7553 -70 CSH7563 -80 CSH7573 -90 CSH7583 -100
Cap. & input Te 0℃ Cap (KW) 208.6 261.8 307.2 357.0 430.0 472.0
input(KW) 59.2 73.6 88.8 100.2 115.6 132.4
Te -5℃ Cap (KW) 172.6 216.6 254.8 296.4 358.4 391.2
input(KW) 56.6 70.4 85.4 96.8 111.8 128.0
Te -10℃ Cap (KW) 141.0 177.0 208.6 243.0 295.4 320.8
input(KW) 53.8 66.8 82.6 94.0 108.4 124.2
C ondenser Type shell＆Copper Tube
Water flow (m3/h) 54 67 80 91 110 120
Cooling Pipe Dia . DN100 DN100 DN125 DN125 DN125 DN150
connect Gas in (mm) φ89 φ89 φ108 φ108 φ108 φ108
Liquid dia. (mm) φ35 φ42 φ42 φ42 φ54 φ54
Overallsi L(mm) 2600 2900 2900 3100 3400 3400
W(mm) 1300 1300 1300 1300 1300 1300
H(mm) 1600 1600 1700 1700 1700 1700



Model BLG S3-150M BLG S3-18M BLG S3-21M BLG S3-240M BLG S3-270M BLG S3-30M
Temperature(℃) -5℃~5℃
Power 380V/50HZ
Compressor model CSH6553 -50 CSH6563-60 CSH7553 -70 CSH7563 -80 CSH7573-90 CSH7583 -100
Cap. & input Te 0℃ Cap (KW) 312.9 392.7 460.8 535.5 645.0 708.0
input(KW) 88.8 110.4 133.2 150.3 173.4 198.6
Te -5℃ Cap (KW) 258.9 324.9 382.2 444.6 537.6 586.8
input(KW) 84.9 105.6 128.1 145.2 167.7 192.0
Te -10℃ Cap (KW) 211.5 265.5 312.9 364.5 443.1 481.2
input(KW) 80.7 100.2 123.9 141.0 162.6 186.3
Condenser Type shell＆Copper Tube
Water flow (m3/h) 80 100 120 137 164 181
Cooling Pipe Dia . DN125 DN125 DN150 DN150 DN150 DN150
connect Gas in (mm) 2*φ76 2*φ76 2*φ89 2*φ89 2*φ108 2*φ108
Liquid dia. (mm) φ42 φ54 φ54 φ54 φ67 φ67
Overallsi zes L(mm) 3000 3400 3400 3400 3600 3600
W(mm) 1960 1960 1960 1960 1960 1960
H(mm) 2000 2000 2100 2100 2100 2100
Condensing temp 40℃



2 R404A Products
Model BLG S-50MY BLG S-60MY BLG S-70MY BLG S-80MY BLG S-90MY
Temperature(℃) -5℃~5℃
Power 380V/50HZ
Compressor model CSH6553 -50Y CSH6563 -60Y CSH7553 -70Y CSH7563 -80Y CSH7573 -90Y
Cap. & input Te 0℃ Cap (KW) 109.7 137.8 160.7 182.7 211.0
input(KW) 34.7 43.4 48.8 55.5 63.2
Te -5℃ Cap (KW) 89.6 112.6 130.6 148.6 172.8
input(KW) 34.0 42.3 47.5 53.2 61.5
Te -10℃ Cap (KW) 72.4 91.0 105.0 119.6 140.1
input(KW) 33.2 41.3 46.3 51.5 59.9
c ondenser Type Shell＆Copper Tube
water flow (m3/h ) 29 36 42 48 55
Cool ing Pipe Dia . Rp2-1/2 Rp3 DN80 DN80 DN100
connect Gas in (mm) φ54 φ54 φ76 φ76 φ76
Liquid dia .(mm) φ28 φ28 φ35 φ35 φ35
Overall sizes L(mm) 1610 2110 2110 2550 2550
W(mm) 900 900 900 900 900
H(mm) 1150 1150 1200 1200 1200
Condensing temp 40℃



Model BLG S2-100MY BLG S2-120MY BLG S2-140MY BLG S2-160MY BLG S2-180MY
Temperature(℃) -5℃~5℃
Power 380V/50HZ
Compressor model CSH6553 -50Y CSH6563 -60Y CSH7553 -70Y CSH7563 -80Y CSH7573 -90Y
Cap. & input Te 0℃ Cap (KW) 219.4 275.6 321.4 365.4 422.0
input(KW) 69.4 86.8 97.6 111.0 126.4
Te -5℃ Cap (KW) 179.2 225.2 261.2 297.2 345.6
input(KW) 68.0 84.6 95.0 106.4 123.0
Te -10℃ Cap (KW) 144.8 182.0 210.0 239.2 280.2
input(KW) 66.4 82.6 92.6 103.0 118.8
Condenser Type Shell＆Copper Tube
water flow (m3/h ) 58 73 84 95 110
Cooling Pipe Dia . DN100 DN100 DN125 DN125 DN125
connect Gas in (mm) φ89 φ89 φ108 φ108 φ108
Liquid dia .(mm) φ35 φ42 φ42 φ42 φ54
Overall sizes L(mm) 2600 2900 2900 3100 3400
W(mm) 1300 1300 1300 1300 1300
H(mm) 1600 1600 1700 1700 1700
Condensing temp 40℃



Model BLG S3-150MY BLG S3-180MY BLG S3-210MY BLG S3-240MY BLG S3-270MY
Temperature℃ -5℃~5℃
Power 380V/50HZ
Compressor model CSH6553-50Y CSH6563 -60Y CSH7553 -70Y CSH7563 -80Y CSH7573 -90Y
Cap. & input Te 0℃ Cap (KW) 329.1 413.4 482.1 548.1 633.0
input(KW) 104.1 130.2 146.4 166.5 189.6
Te
-5℃		 Cap (KW) 268.8 337.8 391.8 445.8 518.4
input(KW) 102.0 126.9 142.5 159.6 184.5
Te
-10℃		 Cap (KW) 217.2 273.0 315.0 358.8 420.3
input(KW) 99.6 123.9 138.9 154.5 179.7
Condenser Type Shell＆C opper Tube
water flow (m3/h ) 87 110 126 143 165
Cooling Pipe Dia . DN125 DN125 DN150 DN150 DN150
connect Gas in (mm) 2*φ76 2*φ76 2*φ89 2*φ89 2*φ108
Liquid dia (mm) φ42 φ54 φ54 φ54 φ67
Overall L(mm) 3000 3400 3400 3400 3600
W(mm) 1960 1960 1960 1960 1960
H(mm) 2000 2000 2100 2100 2100
Condensing temp 40℃
