1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement

  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
Place of Origin Shanghai, China
Brand Name maneurop
Certification CE
Model Number MLZ038
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Refrigerant R404A/R507A,R134a,R22 Horse Power 5HP
Displacement [m3/h 2 Oil Charge 1.6L
Weight [kg 2 Oil Type PVE
Highlight

1.6L Oil Refrigerator Compressor

,

Refrigerator Compressor 5hp

,

PVE Oil Type Refrigerator Compressor
Leave a Message
Product Description

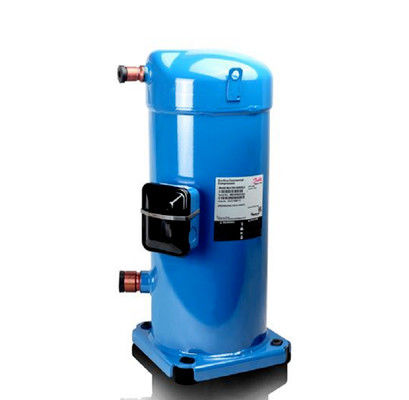

5hp maneurop refrigerator compressor,5hp maneruop compressor model MLZ038







MLZ038T4A. Cooling capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 5.776 7.017 8.524 10.32 12.44 　 　 　 　
15.0 5.553 6.782 8.260 10.01 12.07 14.45 　 　 　
20.0 5.296 6.504 7.944 9.641 11.62 13.92 16.55 　 　
25.0 5.008 6.186 7.578 9.211 11.11 13.31 15.82 18.68 　
30.0 4.692 5.831 7.166 8.725 10.53 12.62 15.01 17.73 20.8
35.0 4.351 5.441 6.711 8.187 9.896 11.86 14.12 16.68 19.59
40.0 　 5.020 6.215 7.600 9.200 11.04 13.15 15.56 18.28
45.0 　 4.571 5.683 6.966 8.447 10.15 12.11 14.35 16.89
50.0 　 　 5.115 6.288 7.643 9.204 11.00 13.06 15.4
55.0 　 　 　 5.571 6.788 8.196 9.821 11.69 13.83
60.0 　 　 　 　 5.888 7.133 8.578 10.25 12.17



MLZ038T4A. Power consumption [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 1.671 1.694 1.729 1.780 1.847 　 　 　 　
15.0 1.876 1.891 1.917 1.956 2.012 2.085 　 　 　
20.0 2.113 2.120 2.137 2.166 2.209 2.269 2.348 　 　
25.0 2.385 2.385 2393 2.412 2.444 2.491 2.556 2.641 　
30.0 2.698 2.691 2.691 2.700 2.721 2.756 2.807 2.876 2.968
35.0 3.056 3.043 3.036 3.035 3.045 3.068 3.105 3.160 3.235
40.0 　 3.446 3.431 3.422 3.422 3.433 3.457 3.497 3.556
45.0 　 3.904 3.882 3.865 3.855 3.854 3.866 3.892 3.935
50.0 　 　 4.394 4.369 4.349 4.338 4.337 4.350 4.378
55.0 　 　 　 4.938 4.910 4.889 4.876 4.875 4.888
60.0 　 　 　 　 5.542 5.511 5.487 5.473 5.472



MLZ038T4A. Heating capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 7.328 8.571 10.08 11.89 14.06 　 　 　 　
15.0 7.317 8.562 10.04 11.80 13.88 16.34 　 　 　
20.0 7.290 8.535 9.989 11.69 13.67 16.00 18.76 　 　
25.0 7.246 8.491 9.915 11.55 13.44 15.64 18.22 21.28 　
30.0 7.184 8.429 9.823 11.40 13.19 15.25 17.66 20.49 23.77
35.0 7.102 8.347 9.712 11.22 12.93 14.86 17.08 19.69 22.8
40.0 　 8.241 9.577 11.02 12.62 14.45 16.50 18.88 21.71
45.0 　 8.106 9.413 10.81 12.30 14.01 15. 91 18.08 20.61
50.0 　 　 9.213 10.56 11.99 13.54 15.31 17.27 19.54
55.0 　 　 　 10.26 11.63 13.09 14.70 16.48 18.49
60.0 　 　 　 　 11.21 12.59 14.06 15.69 17.49



MLZ038T4A. Current [A]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.589 3.592 3.598 3.610 3.632 　 　 　 　
15.0 3.931 3.944 3.959 3.980 4.010 4.054 　 　 　
20.0 4.263 4.281 4.301 4.326 4.361 4.408 4.472 　 　
25.0 4.607 4.626 4.647 4.672 4.707 4.753 4.816 4.899 　
30.0 4.987 5.004 5.021 5.042 5.072 5.113 5.171 5.248 5.348
35.0 5.428 5.437 5.447 5.459 5.480 5.512 5.560 5.627 5.716
40.0 　 5.951 5.948 5.948 5.956 5.974 6.008 6.060 6.134
45.0 　 6.570 6.550 6.533 6.523 6.523 6.538 6.571 6.626
50.0 　 　 7.275 7.237 7.205 7.183 7.175 7.185 7.216
55.0 　 　 　 8.084 8.026 7.977 7.942 7.924 7.928
60.0 　 　 　 　 9.010 8.930 8.864 8.814 8.785



MLZ038T4A. COP [W/W]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.46 4.14 4.93 5.80 6.74 　 　 　 　
15.0 2.96 3.59 4.31 5.12 6.00 6.93 　 　 　
20.0 2.51 3.07 3.72 4.45 5.26 6.13 7.05 　 　
25.0 2.10 2.59 3.17 3.82 4.55 5.34 6.19 7.07 　
30.0 1.74 2.17 2.66 3.23 3.87 4.58 5.35 6.16 7.01
35.0 1.42 1.79 2.21 2.70 3.25 3.87 4.55 5.28 6.06
40.0 　 1.46 1.81 2.22 2.69 3.22 3.81 4.45 5.14
45.0 　 1.17 1.46 1.80 2.19 2.63 3.13 3.69 4.29
50.0 　 　 1.16 1.44 1.76 2.12 2.54 3.00 3.52
55.0 　 　 　 1.13 1.38 1.68 2.01 2.40 2.83
60.0 　 　 　 　 1.06 1.29 1.56 1.87 2.22



MLZ038T4A. Mass flow [kg/h]
Tc/Te -30.0 -250 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 116.5 142.1 173.5 211.3 256.5 　 　 　 　
15.0 116.7 143.2 175.3 213.8 259.5 313.4 　 　 　
20.0 116.3 143.5 176.2 215.3 261.5 315.9 379.6 　 　
25.0 115.3 143.1 176.3 215.8 262.3 317.1 381.3 456.3 　
30.0 113.7 142.0 175.5 215.2 262.0 317.0 381.5 456.8 545.4
35.0 111.4 140.0 173.7 213.6 260.4 315.5 380.2 456.0 545.1
40.0 　 137.2 171.0 210.7 257.5 312.5 377.2 453.4 543.2
45.0 　 133.5 167.2 206.7 253.2 308.0 372.6 449.0 539.5
50.0 　 　 162.3 201.4 247.4 301.8 366.3 442.8 534.2
55.0 　 　 　 194.7 240.1 294.1 358.4 435.3 527.7
60.0 　 　 　 　 231.6 285.0 349.2 426.8 521.1

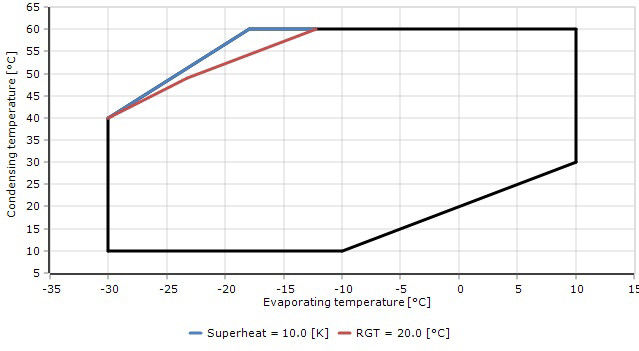

Te = Evaporating temperature [°C]

Tc = Condensing temperature [°C]
