9HP scroll air compressor R134A For Commercial Water Chiller

Place of Origin Shanghai, China
Brand Name Maneurop
Certification CE
Model Number MLZ066
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Refrigerant R22,R134A,R404,R507 Displacement [m3/h 2
Warranty 1 Year Power 9HP
Weight [kg 2 Oil Type PVE
High Light

9HP Scroll Air Compressor

,

Scroll Air Compressor R134A

,

Commercial Water Chiller Scroll Compressor

Leave a Message
Product Description

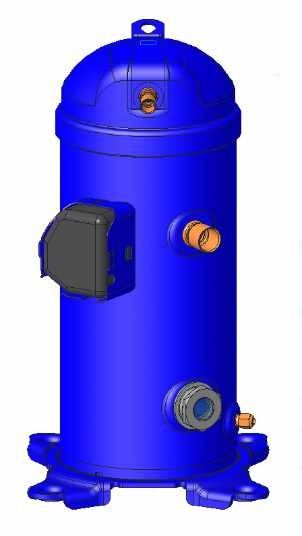

9HP Maneurop scroll Compressor used for commercial water chiller MLZ066







MLZ066T4A. Cooling capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 10.26 12.78 15.84 19.49 23.78
15.0 9.665 12.12 15.07 18.57 22.67 27.41
20.0 9.062 11.43 14.27 17.61 21.51 26.03 31.20
25.0 8.449 10.73 13.43 16.61 20.31 24.58 29.48 35.05
30.0 7.827 10.01 12.58 15.58 19.06 23.09 27.69 32.94 38.9
35.0 7.197 9.271 11.69 14.51 17.77 21.54 25.85 30.76 36.3
40.0   8.516 10.78 13.41 16.44 19. 93 23.94 28.50 33.7
45.0   7.744 9.846 12.27 15.06 18.28 21.97 26.18 31.0
50.0     8.886 11.10 13.64 16.57 19.94 23.78 28.2
55.0       9.894 12.18 14.82 17.85 21.32 25.3
60.0         10.68 13.01 15.70 18.79 22.4



MLZ066T4A. Power consumption [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.238 3.262 3.314 3.401 3.527
15.0 3.600 3.611 3.649 3.719 3.827 3.976
20.0 3.992 3.993 4.019 4.075 4.165 4.294 4.468
25.0 4.432 4.426 4.441 4.483 4.558 4.669 4.822 5.023
30.0 4.937 4.924 4.930 4.961 5.022 5.117 5.252 5.431 5.7
35.0 5.522 5.505 5.504 5.526 5.575 5.655 5.773 5.933 6.1
40.0   6.184 6.179 6.193 6.231 6.299 6.402 6.545 6.7
45.0   6.980 6.970 6.978 7.009 7.066 7.156 7.282 7.5
50.0     7.896 7.900 7.923 7.972 8.050 8.163 8.3
55.0       8.973 8.992 9.033 9.101 9.202 9.3
60.0         10.23 10.27 10.33 10.42 10.5



MLZ066T4A. Heating capacity [kW]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 13.35 15.95 19.07 22.77 27.16
15.0 13.06 15.62 18.65 22.19 26.33 31.21
20.0 12.78 15.32 18.25 21.63 25.55 30.12 35.49
25.0 12.53 15.04 17.88 21.09 24.81 29.08 34.05 39.94
30.0 12.28 14.78 17.51 20.54 24.09 28.10 32.69 38.08 44.5
35.0 12.04 14.53 17.20 20.03 23.35 27.17 31.40 36.31 42.2
40.0   14.29 16. 92 19.60 22.67 26.23 30.18 34.64 39.9
45.0   14.04 16.62 19.25 22.07 25.34 29.03 33.07 37.8
50.0     16.33 18.96 21.57 24.54 27.97 31.61 35.8
55.0       18.56 21.17 23.85 26.95 30.26 34.0
60.0         20.69 23.27 26.02 29.06 32.3



MLZ066T4A.Current [A]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 9.978 9.887 9.823 9.782 9.762
15.0 10.35 10.29 10.26 10.26 10.27 10.30
20.0 10.68 10.65 10.65 10.67 10.71 10.77 10.85
25.0 11.01 11.01 11.03 11.07 11.13 11.21 11.30 11.41
30.0 11.41 11.42 11.46 11.51 11.58 11.67 11.77 11.89 12.0
35.0 11. 91 11. 93 11. 97 12.03 12.11 12.20 12.31 12.43 12.6
40.0   12.59 12.63 12.69 12.76 12.85 12. 95 13.07 13.2
45.0   13.45 13.48 13.53 13.59 13.67 13.76 13.86 13. 97
50.0     14.57 14.60 14.64 14.70 14.78 14.86 14.9
55.0       15.95 15. 97 16.00 16.05 16.10 16.2
60.0         17.62 17.62 17.63 17.65 17.7



MLZ066T4A. COP [W/W]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 3.17 3.92 4.78 5.73 6.74
15.0 2.69 3.36 4.13 4.99 5.92 6.90
20.0 2.27 2.86 3.55 4.32 5.17 6.06 6.98
25.0 1.91 2.43 3.02 3.71 4.46 5.26 6.11 6.98
30.0 1.58 2.03 2.55 3.14 3.80 4.51 5.27 6.07 6.9
35.0 1.30 1.68 2.12 2.63 3.19 3.81 4.48 5.18 5.9
40.0   1.38 1.75 2.17 2.64 3.16 3.74 4.36 5.0
45.0   1.11 1.41 1.76 2.15 2.59 3.07 3.60 4.2
50.0     1.13 1.41 1.72 2.08 2.48 2.91 3.4
55.0       1.10 1.35 1.64 1.96 2.32 2.7
60.0         1.04 1.27 1.52 1.80 2.1



MLZ066T4A. Mass flow [kg/h]
Tc/Te -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0
10.0 206.8 258.8 322.4 399.0 490.0
15.0 203.1 255.8 319.7 396.4 487.4 594.6
20.0 199.1 252.3 316.5 393.1 483.9 590.7 715.8
25.0 194.6 248.3 312.6 389.1 479.5 585.9 710.5 856.1
30.0 189.6 243.7 308.0 384.2 474.1 579.9 703.9 849.1 1019
35.0 184.2 238.5 302.7 378.4 467.7 572.7 695.9 840.6 1011
40.0   232.7 296.6 371.7 460.2 564.2 686.6 830.7 1001
45.0   226.2 289.7 364.0 451.5 554.4 675.9 819.3 989.3
50.0     282.0 355.4 441.6 543.4 663.9 806.8 977.2
55.0       345.9 430.9 531.5 651.2 794.0 965.5
60.0         420.0 519.8 639.1 782.7 956.8

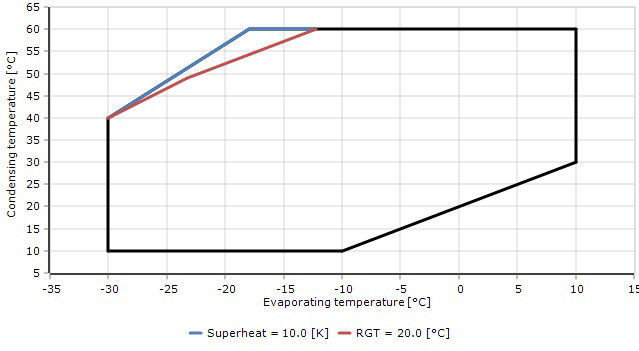

Te = Evaporating temperature [°C]

Tc = Condensing temperature [°C]
