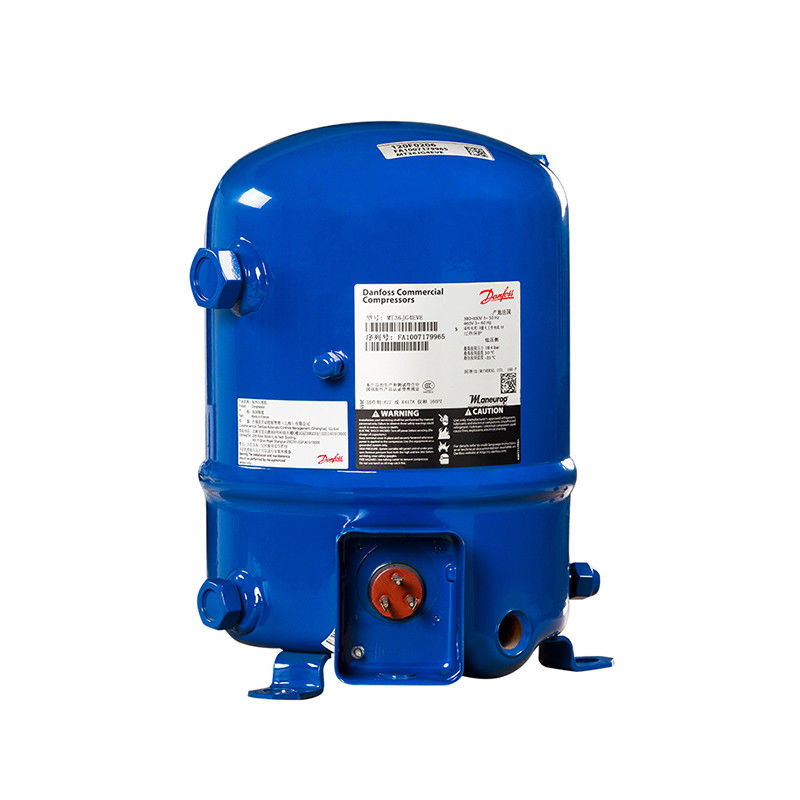

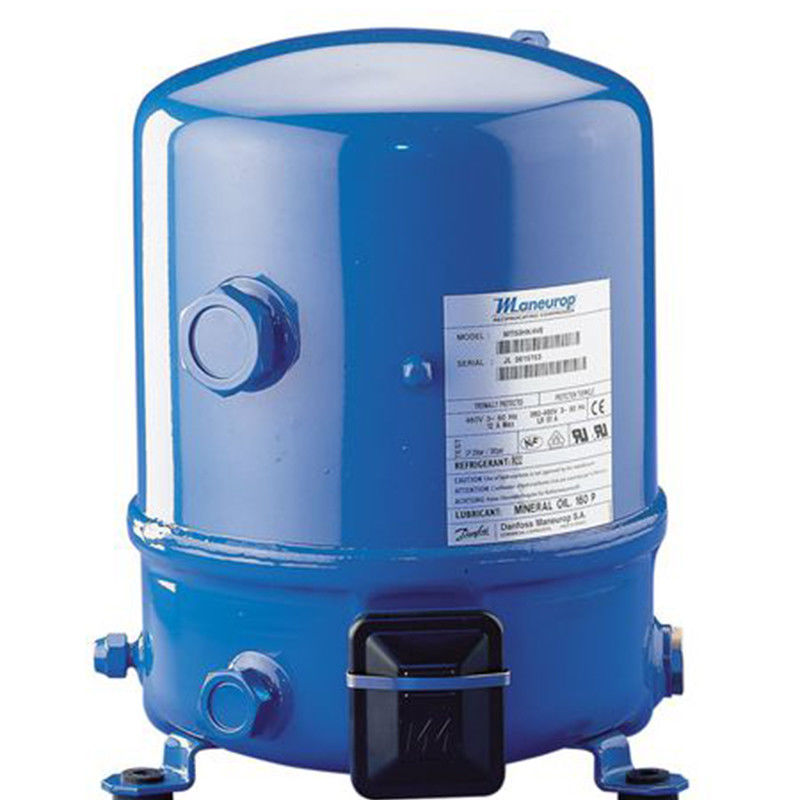

2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders

  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
Place of Origin Shanghai, China
Brand Name Maneurop
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Refrigerant R22 Color Blue
Cylinder Count 4 Weight [kg 2
Displacement [m3/h 2 Warranty 1 Year
Highlight

R22 Hermetic Compressor

,

2m3/H Displacement Hermetic Compressor

,

4 Cylinders Hermetic Compressor
Leave a Message
Product Description
MT125-4. Cooling capacity [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 8.795 11.71 15.22 19.42 24.39 30.19 36.92 44.65 53.46
35.0 7.858 10.65 14.01 18.02 22.76 28.30 34.73 42.12 50.56
40.0 6.998 9.650 12.83 16.63 21.12 26.37 32.48 39.51 47.54
45.0 6.226 8.714 11.70 15.26 19.47 24.42 30.17 36.82 44.43
50.0 　 7.853 10.62 13.92 17.83 22.45 27.83 34.07 41.24
55.0 　 　 9.596 12.62 16.22 20.47 25.46 31.27 37.97
60.0 　 　 　 11.37 14.63 18.50 23.08 28.43 34.64
65.0 　 　 　 　 13.07 16.55 20.69 25.56 31.25



MT125-4. Power consumption [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 4.821 5.395 5.939 6.430 6.848 7.172 7.381 7.453 7.367
35.0 5.081 5.689 6.276 6.822 7.305 7.705 7.999 8.168 8.189
40.0 5.301 5.950 6.588 7.196 7.752 8.234 8.622 8.894 9.030
45.0 5.476 6.173 6.870 7.547 8.182 8.754 9.243 9.626 9.884
50.0 　 6.352 7.115 7.868 8.590 9.259 9.856 10.36 10.74
55.0 　 　 7.316 8.153 8.969 9.743 10.45 11.08 11.60
60.0 　 　 　 8.396 9.313 10.20 11.03 11.79 12.46
65.0 　 　 　 　 9.617 10.62 11.59 12.49 13.30



MT125-4. Heating capacity [kW]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 13.62 17.10 21.16 25.85 31.24 37.37 44.30 52.10 60.83
35.0 12.94 16.34 20.29 24.84 30.06 36.01 42.73 50.29 58.74
40.0 12.30 15.60 19.42 23.83 28.87 34.61 41.10 48.40 56.57
45.0 11.70 14.89 18.57 22.81 27.65 33.17 39.42 46.44 54.31
50.0 　 14.21 17.73 21.78 26.42 31.71 37.69 44.43 51.98
55.0 　 　 16. 91 20.77 25.18 30.22 35.92 42.35 49.57
60.0 　 　 　 19.76 23.94 28.70 34.11 40.23 47.10



MT125-4. Current [A]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 8.575 9.272 9.982 10.66 11.26 11.74 12.05 12.15 11. 99
35.0 8.901 9.654 10.44 11.21 11.92 12.53 12.99 13.26 13.29
40.0 9.182 10.00 10.88 11.75 12.59 13.35 13.97 14.43 14.66
45.0 9.404 10.31 11.28 12.28 13.26 14.18 14.98 15.63 16.08
50.0 　 10.56 11.65 12.78 13.91 15.00 16.00 16.86 17.54
55.0 　 　 11. 95 13.24 14.54 15.81 17.01 18.10 19.02
60.0 　 　 　 13.63 15.11 16.59 18.01 19.33 20.52
65.0 　 　 　 　 15.64 17.32 18.98 20.55 22.01



MT125-4. COP [W/W]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 1.82 2.17 2.56 3.02 3.56 4.21 5.00 5.99 7.26
35.0 1.55 1.87 2.23 2.64 3.12 3.67 4.34 5.16 6.17
40.0 1.32 1.62 1.95 2.31 2.72 3.20 3.77 4.44 5.26
45.0 1.14 1.41 1.70 2.02 2.38 2.79 3.26 3.83 4.50
50.0 　 1.24 1.49 1.77 2.08 2.42 2.82 3.29 3.84
55.0 　 　 1.31 1.55 1.81 2.10 2.44 2.82 3.27
60.0 　 　 　 1.35 1.57 1.81 2.09 2.41 2.78
65.0 　 　 　 　 1.36 1.56 1.79 2.05 2.35



MT125-4. Mass flow [kg/h]
Tc/Te -25.0 -20.0 -15.0 -10.0 -5.0 0 5.0 10.0 15.0
30.0 191.5 251.5 322.7 406.5 504.2 616.9 745.9 892.5 1058
35.0 178.1 237.9 308.7 391.8 488.5 600.1 727.9 873.1 1037
40.0 165.4 224.7 294.6 376.5 471.7 581.7 707.6 850.9 1013
45.0 153.9 212.1 280.5 360.6 453.8 561.5 685.2 826.1 985.6
50.0 　 200.4 266.6 344.3 434.9 539.8 660.5 798.4 955.0
55.0 　 　 253.4 328.0 415.1 516.6 633.7 768.0 920.9
60.0 　 　 　 311.7 394.8 491.9 604.6 734.5 883.2
65.0 　 　 　 　 373.9 465.8 573.3 698.1 841.7



2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders 02m3/H Displacement R22 Hermetic Compressor With 4 Cylinders 12m3/H Displacement R22 Hermetic Compressor With 4 Cylinders 22m3/H Displacement R22 Hermetic Compressor With 4 Cylinders 32m3/H Displacement R22 Hermetic Compressor With 4 Cylinders 4
