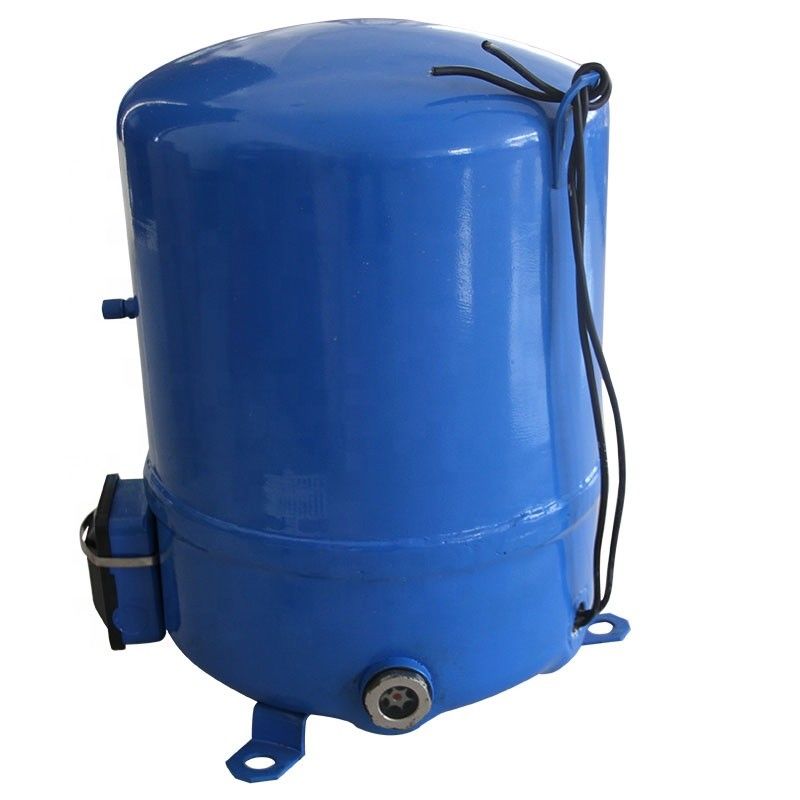

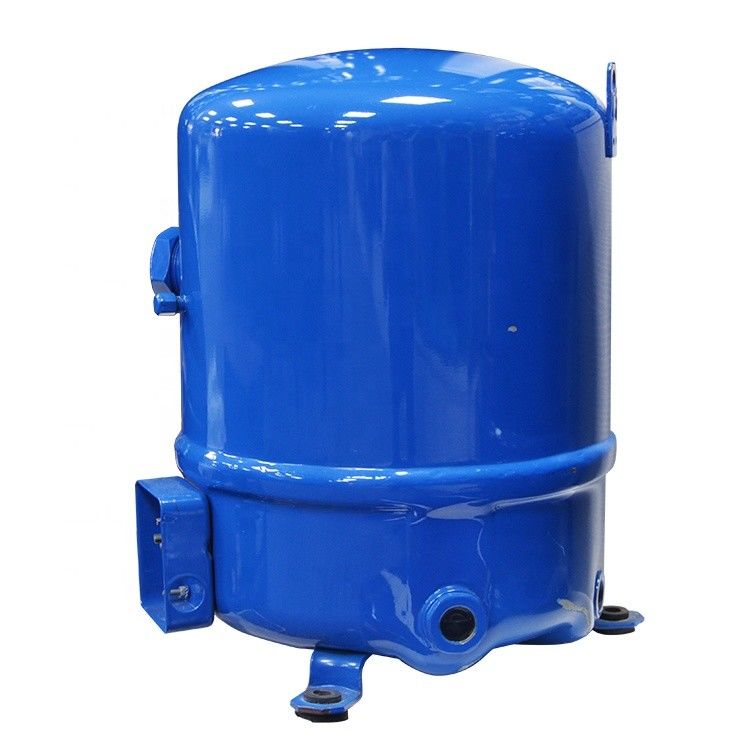

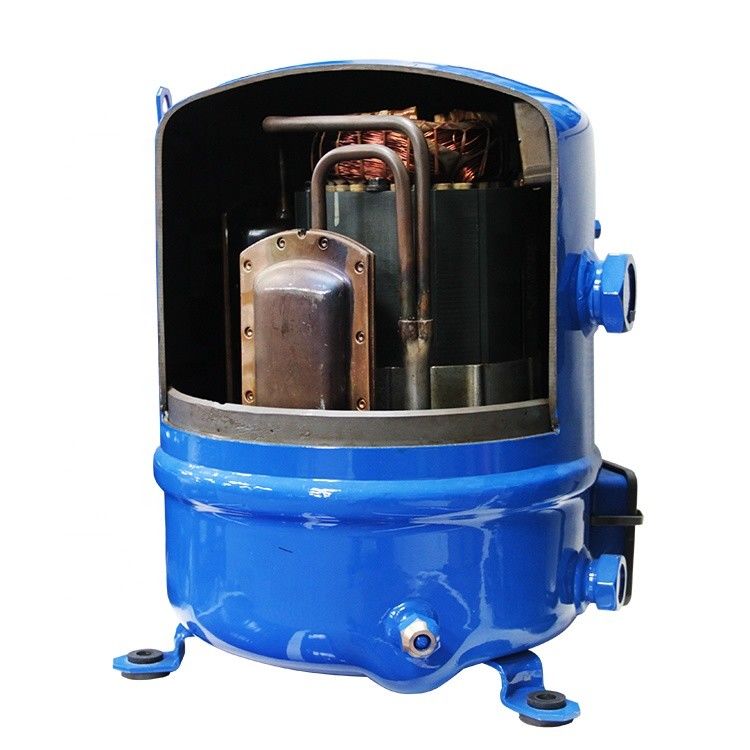

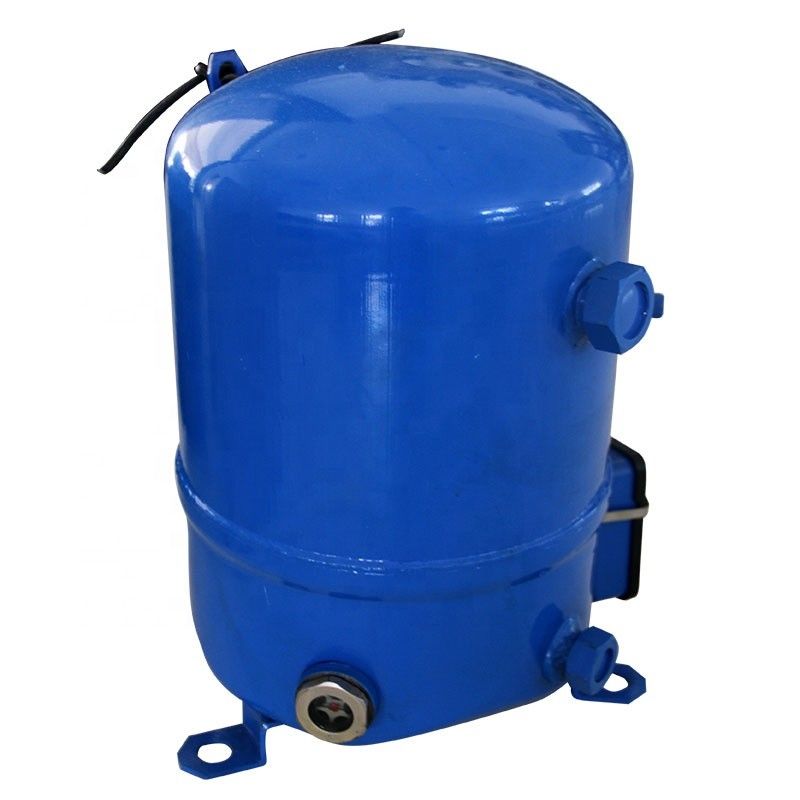

Name: 50hz R22 Refrigerant Air Conditioner Compressor High Pressure Blue Color
Brand: Shanghai KUB Refrigeration Equipment Co., Ltd.
SKU: MT160-4
Price: 419.00 USD
Availability: InStock

Home > Products > Cold Storage Compressor >

50hz R22 Refrigerant Air Conditioner Compressor High Pressure Blue Color

R22 Refrigerant Air Conditioner Compressor

2.2kw Air Conditioner Compressor

Blue Color Air Conditioner Compressor

Place of Origin:

Shanghai, China

Brand Name:

Maneurop

Certification:

Model Number:

MT160-4

Request A Quote

Product Details

Applicable Industries::

Condensing Unit

Refrigerant::

R404A/R134A

Application::

Cold Storage Room Freezer Room

Voltage:

380V/3Ph/50Hz

Cooling Capacity::

2.2~14.46kw

Type:

Compressor

Color:

Blue

Highlight:

R22 Refrigerant Air Conditioner Compressor

2.2kw Air Conditioner Compressor

Blue Color Air Conditioner Compressor

Payment & Shipping Terms

Minimum Order Quantity

Price

Consult

Packaging Details

Pallet packaging

Delivery Time

15days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Year

1/2HP R404a Refrigeration Compressor NEK2150GK 464W

Get Best Price

Video

4EES-6 Hot sell 6HP compressor R22 compressor piston refrigeration compressor

Get Best Price

Video

BFS51 BFCA-0500 Cold room compressor condensing unit 5hp refrigeration compressor

Get Best Price

Video

BFS151 BFCA-1500 China factory provide cold room compressor condensing unit semi hermetic 15hp refrigeration compressor

Get Best Price

13588563336

kub02@shkubao.com

86-021-53750132

Contact Now

Product Description

MT160-4. Cooling capacity [kW]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	11.25	14.82	19.16	24.37	30.56	37.84	46.31	56.08	67.25
35.0	10.09	13.51	17.66	22.63	28.54	35.49	43.59	52.94	63.64
40.0	9.026	12.27	16.19	20.90	26.50	33.09	40.79	49.68	59.88
45.0	8.059	11.10	14.78	19.19	24.45	30.65	37.91	46.33	56.00
50.0		10.01	13.41	17.50	22.39	28.18	34.98	42.89	52.01
55.0			12.11	15.86	20.35	25.70	32.00	39.37	47.91
60.0				14.26	18.33	23.21	28.99	35.80	43.72
65.0					16.34	20.72	25.96	32.17	39.44

MT160-4. Power consumption [kW]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	6.153	6.858	7.525	8.129	8.643	9.042	9.300	9.391	9.289
35.0	6.462	7.210	7.934	8.607	9.205	9.700	10.07	10.28	10.32
40.0	6.723	7.523	8.312	9.064	9.753	10.35	10.84	11.19	11.37
45.0	6.928	7.789	8.652	9.492	10.28	11.00	11.61	12.10	12.44
50.0		8.000	8.948	9.885	10.79	11.63	12.38	13.02	13.52
55.0			9.191	10.23	11.26	12.23	13.13	13.93	14.60
60.0				10.54	11.69	12.80	13.86	14.82	15.68
65.0					12.07	13.33	14.55	15.70	16.75

MT160-4. Heating capacity [kW]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	17.40	21.68	26.68	32.50	39.20	46.88	55.61	65.47	76.54
35.0	16.56	20.72	25.59	31.24	37.75	45.19	53.66	63.22	73.95
40.0	15.75	19.79	24.51	29.97	36.26	43.45	51.63	60.87	71.25
45.0	14. 99	18.89	23.43	28.68	34.73	41.65	49.53	58.43	68.44
50.0		18.01	22.36	27.39	33.18	39.81	47.36	55.90	65.52
55.0			21.31	26.09	31.61	37.93	45.13	53.30	62.51
60.0				24.79	30.02	36.01	42.85	50.62	59.40

MT160-4. Current [A]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	12. 97	13.71	14.46	15.16	15.77	16.26	16.58	16.69	16.54
35.0	13.32	14.11	14. 92	15.72	16.45	17.08	17.56	17.85	17. 90
40.0	13.60	14.46	15.37	16.27	17.14	17.92	18.58	19.06	19.34
45.0	13.82	14.77	15.78	16.81	17.83	18.78	19.63	20.33	20.84
50.0		15.01	16.14	17.32	18.50	19.64	20.70	21.63	22.39
55.0			16.45	17.78	19.15	20.49	21.77	22.95	23.97
60.0				18.20	19.76	21.32	22.84	24.28	25.59
65.0					20.32	22.11	23.89	25.61	27.22

MT160-4.COP [W/W]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	1.83	2.16	2.54	3.00	3.54	4.19	4.98	5.97	7.24
35.0	1.56	1.87	2.23	2.63	3.10	3.66	4.33	5.15	6.17
40.0	1.34	1.63	1.95	2.31	2.72	3.20	3.76	4.44	5.27
45.0	1.16	1.43	1.71	2.02	2.38	2.79	3.26	3.83	4.50
50.0		1.25	1.50	1.77	2.08	2.42	2.83	3.29	3.85
55.0			1.32	1.55	1.81	2.10	2.44	2.83	3.28
60.0				1.35	1.57	1.81	2.09	2.42	2.79
65.0					1.35	1.55	1.78	2.05	2.35

MT160-4. Mass flow [kg/h]
Tc/Te	-25.0	-20.0	-15.0	-10.0	-5.0	0	5.0	10.0	15.0
30.0	245.1	318.3	406.1	510.0	631.8	773.1	935.6	1121	1331
35.0	228.7	301.9	389.1	492.1	612.7	752.6	913.6	1097	1305
40.0	213.3	285.7	371.7	473.2	592.0	729.9	888.7	1070	1276
45.0	199.2	270.1	354.2	453.5	569.8	705.0	860.9	1039	1242
50.0		255.5	336.9	433.1	546.1	677.8	830.2	1005	1204
55.0			320.0	412.2	521.0	648.4	796.4	967.0	1162
60.0				391.1	494.8	616.9	759.5	924.8	1115
65.0					467.4	583.1	719.4	878.4	1062
