R404a Box Type Air Conditioning Units Defrosting Adjustment Explosion-proof type energy regulation

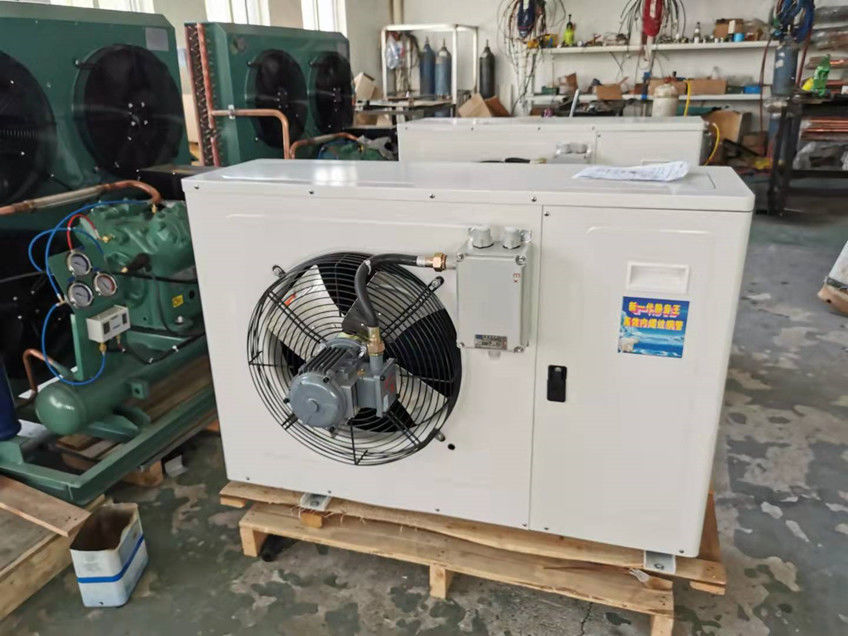

XJQ -E Series Box Type Condensing Units
1. Product description :
According to demands of market, we design this new series XJQ-E on basis of XJQ series. This new series products feature box type structure with hermetic compressor and control box, which is Compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:-5C~ 15°C, -5°C~5°C and -15~-25°C. They can bewidely used in hotels, restaurants, medicines, agricu ltural, chemicals i ndustries all other place where cold storage is needed.Features of these series products:
◆ Electric components were added on the basis of old XJQ series,induding condensing unit, main control board, cold roomtemp control board and operation board. Cold room temp control board and operation board are optional.
◆ Main control board can start/stop compressor by system low voltage, be suitable for super market, milk container,water chiller etc. If all optional included, system can control compressor by tem p., with function of temp. and defrosting adjustment. The complete set of control system can be used for cold room directly, no extra controller required.
◆ With multi protections incuding phase protection, phase lack, over current, too constant start of compressor, discharge temp and system high/low temp.
◆ With fan speed regulator, to adjust condensing fan according to condensing temp.
◆ With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.
◆ With system alarm function. When fault effects, the system will make alarm beep sound to remind user.
◆ The operation board can show temp. setting, defrosting control, operation system data checking and cold room temp. alarm functions. It can be installed apart from condensing units for remote control.

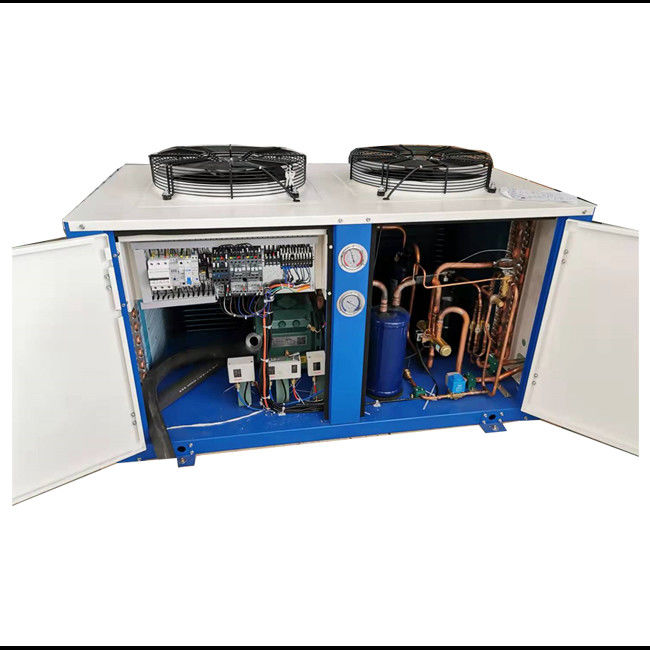

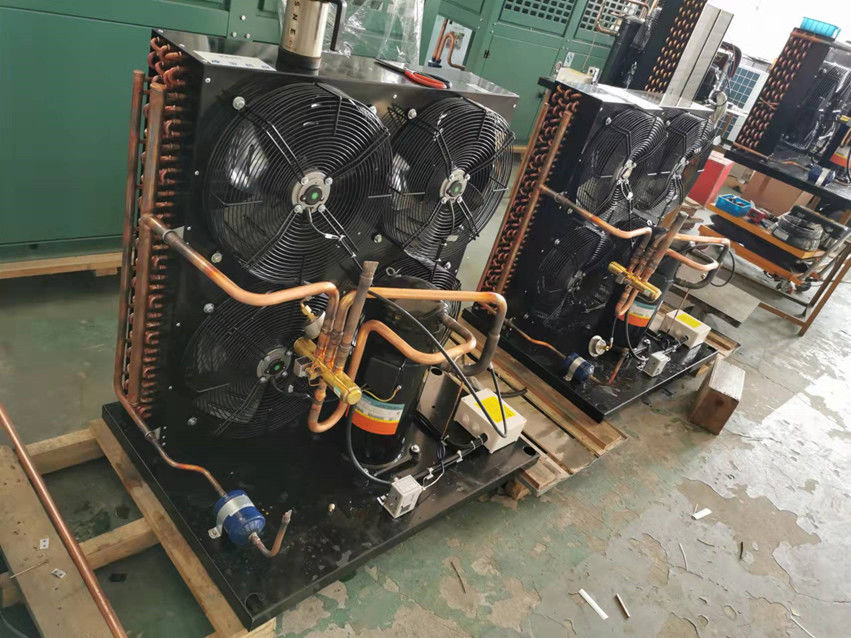

3. Main components
①Compressor②suction and discharge valves③oil heating belt④condenser ⑤liquid receiver⑥Drier&filter⑦sight glasses⑧solenoid valve⑨dia phragm type pressure switch OH/L pressure gauge① in/out pipe connection valve12 liquidinjection valve③ enhanced gas injection④ mechanical type low voltage control
XJQ02H -XJQ05H: Item ①.④.⑤.⑥.⑦.⑧.⑨.D.O; optional: ④
XJQ08H -XJQ15H: ltem ①.②.③.④.⑤.⑥.⑦.⑨.面; optional: ④
XJQ02M -XJQ07M : Item ①.④.⑤.⑥.⑦.⑧.⑨.D.①; optional: ④
XJQ08M -XJQ15M : Item①.②③.④.⑤.⑥.⑦.⑧.⑨.O; optionalI
XJQ02L-XJQ07L: Item ①.②.③.④.⑤.⑥.⑦.⑧.⑨.0.①. ;
XJQ05L-XJQ15L: Item ①.②.③.④.⑤⑥.⑦.⑧.⑨.0.. ; optional: ④
For condensing units without solenoid valve, we suggest user to install solenoid valve near expansion valve.
Notice: Please select s evaporator fan motor with 220V power supply.

Remark: 1) Cooling capacity at condensing temp. 45°C; 2) 220V/50Hz power models are available for 2HP~4HP units, of which ZB26KQ will be used for 4 HP model units.3) Evaporator must use 220V single phase fan motor.

Remark: 1) Cooling capacity at condensing temp. 45°C; 2) 220V/50Hz power models are available for 2HP~4HP units, of whichZB26KQ will be used for4 HP model units. 3) Evaporator must use 220V single phase fan mo tor.

Remark :1) Cooling capacity at condensing temp. 45 ℃; 2) 220V/50Hz power models are available for 2HP~4HP units, of whichZB26KQ will be used for 4 HP model units. 3) Evaporator must use 220V single phase fan motor .

Remark :Cooling capacity at condensing temperture 45℃,insuction temperture 18℃;2) 2HP model are availiable220V/50HZ power;3)Optional evaporator must use 220V fan motor.

Remark: Cooling capacity at condensing temperture 45℃,insuction temperture 20℃;2)Evaporator must use 220V fan motor.
