xType | Compressor | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Refrigerant | R404a | Cooling Capacity | From 1800W To 95600W |
Voltage | 380V/3Ph/50Hz | Product Name | Bitzer Condensing Unit |
Highlight | Hot Gas Defrosting Refrigeration Equipment,R404a Refrigeration Equipment,1800W Refrigeration Equipment |

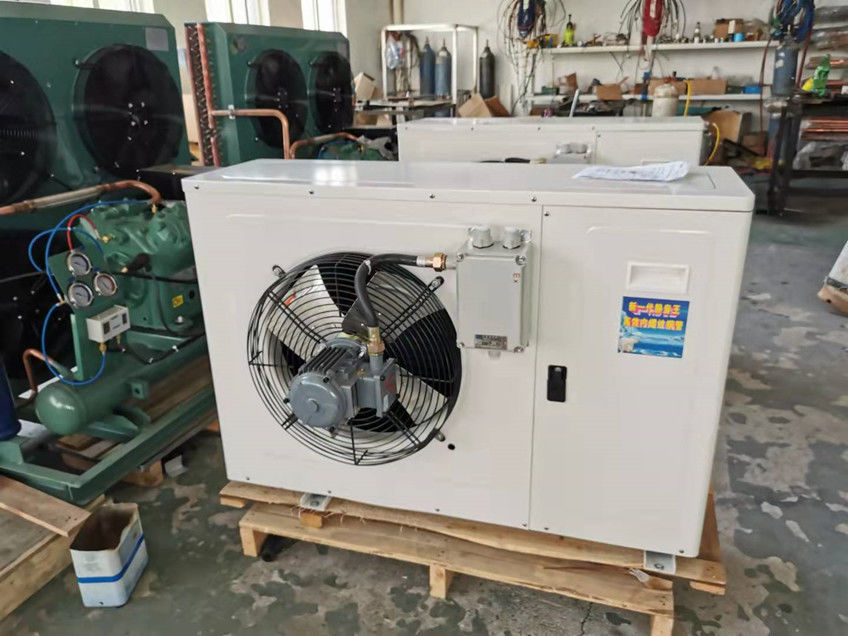

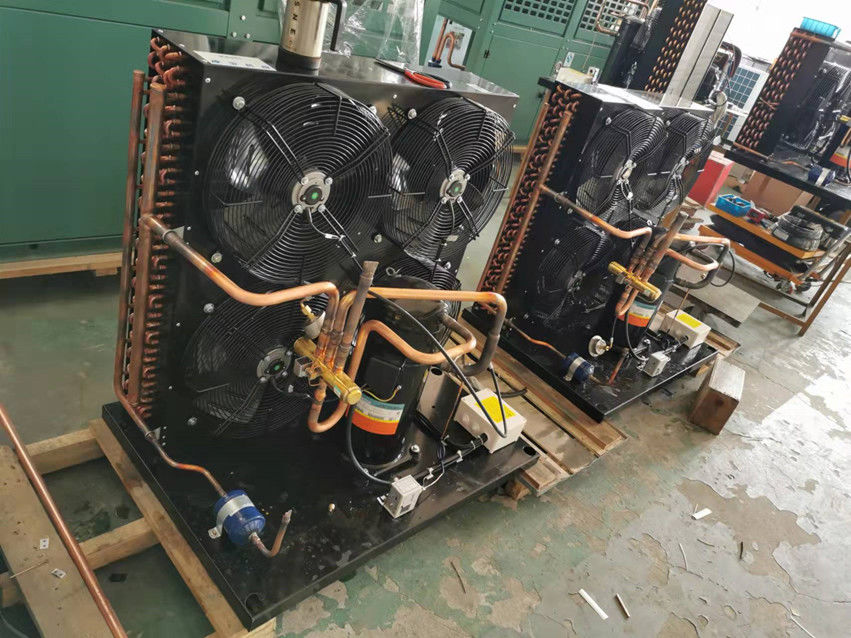

XJB -E Series Box type Semi -hermetic Condensing Units
1.Produc t de sc ription:
According to demands of market, we design th is new series XJB -E on basis of XJB series. This new series products feature box type structure with hermetic compressor and control box, which is compact and pleasant looking, applicable to cold display ca ses, cold storage rooms, ice producers etc. The ap plicable temperature ranges are: -5℃~ 15℃, -5℃~5℃ and -15~-25℃. They can be widely used in hotels, restaurants, medicines, agricu ltural, chemicals industries all other place where cold storage is needed. Features of these series products:
- ◆ Electric compon ents were added on the basis of old XJB series ,including condensing unit, main control board, cold room temp control board and operation board. Cold room temp control board and operation board are optional.
◆ Main control board can start/stop compressor by system low voltage, be suitable for super market, milk container, water chiller etc. If all optional included, system can control compressor by temp., with function of temp. and defrosting adjustme nt. The complete set of control system can be used for col d room directly, no extra controller required.
◆ With multi protections including phase protection, phase lack, over current, too constant start of compressor, discharge temp and system high/low temp.
◆ With fan speed regulator, to adjust condensing fan ac cording to condensing temp.
◆ With operation data display function, to check operation current of compressor, discharge temp. and condensing temp.
◆ With system alarm function. When fault effects, the system will make alarm beep sound to remind user.
◆ The operation board can show temp., setting, defrosting control, operation system data checking and coldroom temp. alarm functions. It can be installed apart from condensing units for remote control.
3. Ma in c ompone nts
①Compressor ②oil heating belt ③Vibration Eliminator ④ Oil Separator ⑤condenser ⑥liquid receiver ⑦ filter ⑧ sight glass
⑨solenoid valve ⑩H/L pressure gauge mechanical pressure switch Oil pressure protection oil/liquid accumulator Low
pressure control (for compressor)
XJB03MB⋯XJB09MB.XJB02MBY⋯XJB06MBY .XJB04LBY⋯XJB06LBY:
Standard :①.②.⑤.⑥.⑦. ⑧.⑩. ;
XJB10MB⋯XJB20MB.XJB09MBY⋯XJB14MBY .XJB09LBY⋯XJB14LBY:
Standard :①.②. ⑤.⑥.⑦.⑧. ⑩. ;Optional :④.
XJB25MB⋯XJB30MB.XJB18MBY⋯XJB23MBY.XJB18LBY⋯XJB34LBY:
Standard :①.②.③.④.⑤.⑥.⑦.⑧. ⑩. . ;Optional :
For condensing units with main controller only, is standard
4. Spe c ific a tions
1.Medi um Temperature series (Applicable for Te -5~-20℃):
1)R22 units
Model | XJB03MB-E | XJB04MB-E | XJB05MB-E | XJB06MB-E | XJB07MB-E | XJB09MB-E | ||
Room temperature | -5℃~5℃ | |||||||
Power supply | 380V/3Ph/50Hz | |||||||
Compressor model | 2DES-3 | 2CES-4 | 4FES-5 | 4EES-6 | 4DES-7 | 4CES-9 | ||
Condenser | Fan Qty | 1 | 1 | 1 | 1 | 1 | 1 | |
Fan voltage(v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Fan Input(w) | 240 | 240 | 240 | 460 | 460 | 550 | ||
Cap.& input | Te-5℃ | Cap(w) | 7850 | 9660 | 10300 | 13100 | 15660 | 19290 |
input(w) | 2.97 | 3.65 | 3.83 | 4.9 | 5.8 | 7.22 | ||
Te-10c | Cap(w) | 6330 | 7820 | 8270 | 10540 | 12630 | 15610 | |
input(w) | 2.76 | 3.4 | 3.56 | 4.54 | 5.4 | 6.72 | ||
Te-15℃ | Cap(w) | 5040 | 6250 | 6540 | 8360 | 10400 | 12460 | |
input(w) | 2.53 | 3.12 | 3.25 | 4.14 | 4.94 | 6.16 | ||
Gas dia.(mm) | 22 | 22 | 22 | 28 | 28 | 28 | ||
Liquid dia.(mm) | 12 | 12 | 12 | 12 | 12 | 12 | ||
overall sizes | L(mm) | 967 | 967 | 967 | 967 | 967 | 967 | |
w(mm) | 675 | 675 | 675 | 825 | 825 | 825 | ||
H(mm) | 815 | 815 | 815 | 1035 | 1035 | 1035 | ||
Install slzes (AxB) (mm) | 570×635 | 570×635 | 570×635 | 570×785 | 570×785 | 570×785 |
Model | XJB12MB-E | XJB15MB-E | XJB20MB-E | XB25MB-E | XJB30MB-E | ||
Room temperature | -5℃~5℃ | ||||||
Power supply | 380V/3Ph/50Hz | ||||||
compressor model | 4TES12 | 4PES-15 | 4NES-20 | 4HE-25 | 4GE-30 | ||
Condenser | Fan Qty | 2 | 2 | 2 | 2 | 2 | |
Fan voltage(v) | 220 | 220 | 220 | 220 | 220 | ||
Fan Input(w) | 460×2 | 460×2 | 550×2 | 780×2 | 780×2 | ||
Cap.& input | Te-5℃ | Cap(w) | 25200 | 28800 | 34000 | 45400 | 52600 |
input(w) | 8.83 | 10.05 | 11.81 | 15.86 | 18.28 | ||
Te-10℃ | Cap(w) | 20200 | 23000 | 27200 | 36400 | 42400 | |
input(w) | 8.15 | 9.23 | 10.88 | 14.66 | 16.93 | ||
Te-15℃ | Cap(w) | 15920 | 17990 | 21400 | 28800 | 33600 | |
input(w) | 7.39 | 8.32 | 9.86 | 13.33 | 15.44 | ||
Pipe | Gas dla.(mm) | 35 | 42 | 42 | p54 | 54 | |
Liquid dia.(mm) | 16 | 16 | p22 | p22 | 22 | ||
overall sizes | L (mm) | 1354 | 1354 | 1870 | 1870 | 1870 | |
w (mm) | 825 | 825 | 925 | 925 | 925 | ||
H(mm) | 1235 | 1235 | 1235 | 1235 | 1235 | ||
lnstall sizes (A×B)(mm) | 950×785 | 950x785 | 755x885 | 755×885 | 755×885 |
Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp .45℃;
2)All fan motor for evaporator should with power supply 220V AC.
Model | XB02MBY-E | XB03MBY-E | XB04MBY-E | XBO5MBY-E | XBO6MBY-E | ||
Room temperature | -5℃~5℃ | ||||||
Power supply | 380V/3Ph/50Hz | ||||||
Compressor model | 2DES-2Y | 2CES-3Y | 4EES-4Y | 4DES-5Y | 4CES-6Y | ||
Condenser | Fan Qty | 1 | 1 | 1 | 1 | 1 | |
Fan VoltageV) | 220 | 220 | 220 | 220 | 220 | ||
Fan Input(w | 240 | 240 | 460 | 460 | 550 | ||
Cap.& input | Te-sc | Cap(w) | 7770 | 9590 | 13220 | 15800 | 19150 |
input(w) | 3.41 | 4.16 | 5.76 | 6.8 | 8.13 | ||
Te-10℃ | Cap(w) | 6220 | 7700 | 10560 | 12610 | 15250 | |
input(w) | 3.13 | 3.84 | 5.34 | 6.3 | 7.51 | ||
Te-15℃ | Cap(w) | 4900 | 6100 | 8330 | 9940 | 11980 | |
input(w) | 2.84 | 3.5 | 4.87 | 5.75 | 6.82 | ||
Pipe | Gas dia.(mm) | 22 | 22 | 28 | 28 | 28 | |
Liquid dia.(mm) | 12 | 12 | 12 | 12 | 12 | ||
Overall sizes | L(mm) | 967 | 967 | 967 | 967 | 967 | |
w(mm) | 675 | 675 | 825 | 825 | 825 | ||
H(mm) | 815 | 815 | 1035 | 1035 | 1035 | ||
Install sizes(A×B)(mm) | 570x635 | 570x635 | 570×785 | 570x785 | 570x785 |
Model | XJBO9MBY-E | XJB12MBY-E | XJB14MBY-E | XB18MBY-E | XJB23MBY-E | ||
Room temperature | -5℃~5℃ | ||||||
Power supply | 380V/3Ph/50Hz | ||||||
compressor model | 4TES-9Y | 4PES-12Y | 4NES-14Y | 4HE-18Y | 4GE-23Y | ||
Condenser | Fan Qty | 2 | 2 | 2 | 2 | 2 | |
Fan Voltage(v) | 220 | 220 | 220 | 220 | 220 | ||
Fan Input(w) | 460×2 | 460×2 | 550×2 | 780×2 | 780×2 | ||
Cap.& input | Te-5c | Cap(w) | 24200 | 27600 | 32900 | 44200 | 51000 |
input(w) | 10.18 | 11.29 | 13.63 | 18.39 | 22 | ||
Te-10℃ | Cap(w) | 19160 | 21800 | 26100 | 35400 | 41100 | |
Input(w) | 9.28 | 10.27 | 12.48 | 16.89 | 20.1 | ||
Te-15℃ | cap(w) | 14960 | 16850 | 20300 | 28000 | 32600 | |
input(w) | 8.32 | 9.17 | 11.23 | 15.3 | 18.21 | ||
Pipe | Gas dia.(mm) | 35 | 35 | 35 | 42 | 54 | |
Llquld dla.(mm) | 16 | 16 | 22 | 22 | 22 | ||
Overall sizes | L(mm) | 1354 | 1354 | 1870 | 1870 | 1870 | |
w(mm) | 825 | 825 | 925 | 925 | 925 | ||
H (mm) | 1235 | 1235 | 1235 | 1235 | 1235 | ||
Install sizes(A×B)(mm) | 950×785 | 950×785 | 755x885 | 755×885 | 755x885 |
Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp.45 ℃;
2)All fan motor for eva porator should with power supply 220V AC.
Model | XJB04LBY-E | XJBO5LBY-E | XJBO6LBY-E | XJBO9LBY-E | XJB12LBY-E | XJB14LBY-E | ||
Room temperature | -15℃~-30℃ | |||||||
Power supplv | 380V/3Ph/50 Hz | |||||||
Co mpressor model | 4EES-4Y | 4DES-5Y | 4CES-6Y | 4TES9Y | 4PES-12Y | 4NES-14Y | ||
Condenser | Fan Qty | 1 | 1 | 1 | 1 | 1 | 1 | |
Fan Voltage(v) | 220 | 220 | 220 | 220 | 220 | 220 | ||
Fan Input(w) | 240 | 240 | 240 | 550 | 550 | 550 | ||
Te-25℃ | Cap(w) | 4940 | 5900 | 7040 | 8620 | 9500 | 11700 | |
input(w) | 3.84 | 4.55 | 5.36 | 6.35 | 6.88 | 8.58 | ||
Te-30°℃ | Cap(w) | 3690 | 4400 | 5220 | 6310 | 6830 | 8550 | |
input(w) | 3.32 | 3.94 | 4.61 | 5.38 | 5.74 | 7.24 | ||
Te-35℃ | Cap(w) | 2680 | 3200 | 3760 | 4460 | 4710 | 6030 | |
input(w) | 2.8 | 3.34 | 3.89 | 4.46 | 4.64 | 5.94 | ||
Te-40℃ | Cap(W) | 1880 | 2250 | 2610 | 3000 | 3060 | 4060 | |
input(w) | 2.3 | 2.76 | 3.2 | 3.61 | 3.62 | 4.72 | ||
Pipe | Gas dia.(mm) | 28 | 28 | 28 | 35 | 35 | 35 | |
Liquid dia.(mm) | 12 | 12 | 12 | 16 | 16 | 22 | ||
Overall sizes | L (mm) | 967 | 967 | 967 | 967 | 967 | 967 | |
w (mm) | 675 | 675 | 675 | 825 | 825 | 825 | ||
H(mm) | 815 | 815 | 815 | 1235 | 1235 | 1235 | ||
Install sizes(A×B)(mm) | 570×635 | 570×65 | 570×635 | 570×785 | 570×785 | 570×785 |
Model | XJB18LBY-E | XJB23LBY-E | XJB28LBY-E | XJB34LBY-E | ||
Room temperature | -15℃ ~-30 c | |||||
Power supply | 380V/3Ph/50 Hz | |||||
Compressor model | 4HE-18Y | 4GE-23Y | 6HE-28Y | 6GE-34Y | ||
Condenser | Fan Qty | 2 | 2 | 2 | 2 | |
Fan Voltage(v) | 220 | 220 | 220 | 220 | ||
Fan lnput(w) | 460×2 | 460×2 | 550×2 | 780×2 | ||
Te-25℃ | Cap(w) | 16690 | 19670 | 23500 | 29700 | |
Input(w) | 12 | 14.27 | 17.13 | 21.8 | ||
Te-30℃ | Cap(w) | 12450 | 14820 | 17760 | 22600 | |
input(w) | 10.35 | 12.33 | 14.78 | 18.95 | ||
Te-35℃ | cap(W) | 900o | 10870 | 12980 | 16680 | |
Input(w) | 8.75 | 10.46 | 12.46 | 16.19 | ||
Te-4o℃ | Cap(w) | 6220 | 7690 | 9070 | 11910 | |
input(w) | 7.23 | 8.71 | 10.22 | 13.56 | ||
Pipe | Gas dia.(mm) | 42 | 42 | 54 | 54 | |
Liquid dia.(mm) | 22 | 22 | 22 | 22 | ||
Overall sizes | L(mm) | 1354 | 1354 | 1870 | 1870 | |
w (mm) | 825 | 825 | 925 | 925 | ||
H(mm) | 1235 | 1235 | 1235 | 1235 | ||
Install sizes(A×B)(mm) | 950×785 | 950×785 | 755×885 | 755x885 |
Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp.45 ℃;
2)All fan motor for evaporator should with power supply 220V AC.
