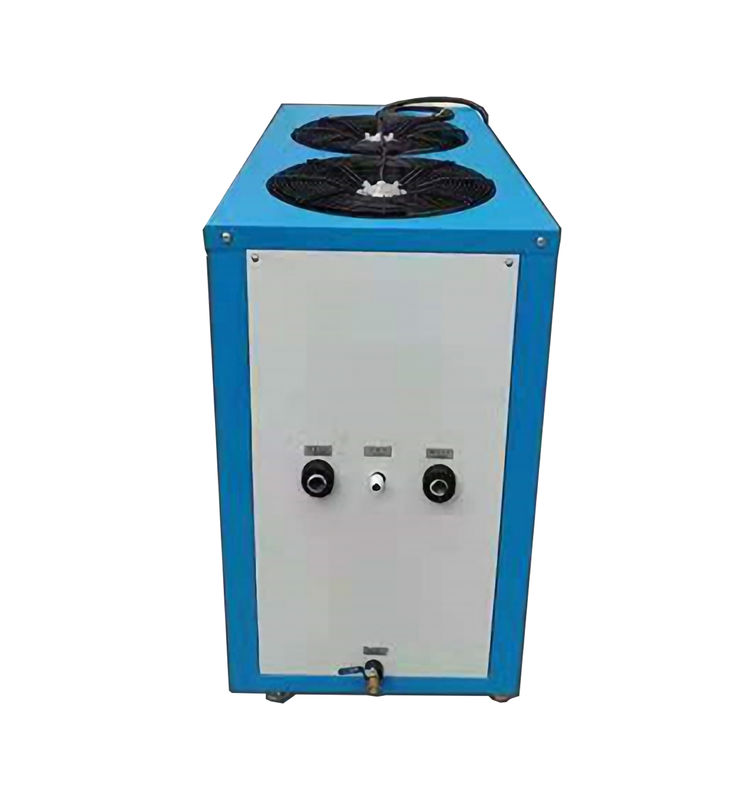

R22 5HP Compressor Air Cooled Water Chiller With 52L Tank

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number 5HP
Minimum Order Quantity 1
Packaging Details The wooden packaging Parameters Configuration power supply 3AC-380V-50HZ cooling capacity Kcal/h 11910 Kw 14 refrigerant types R22 Control method capillaries compressor types scroll Adjustable Power(KW) 3.75*1 condenser types Warp type high effici
Delivery Time 20
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Set/Sets per Year
Product Details
Weight (KG) 180 Refrigerant R22/R404A
Color Blue Application Machine
Voltage 380V 50HZ Warranty 1 Year
High Light

5HP Compressor Air Cooled Water Chiller

,

R22 Air Cooled Water Chiller

,

52L Tank Air Cooled Water Chiller

Leave a Message
Product Description

Parameters
  Configuration
power supply 3AC-380V-50HZ
cooling
capacity
Kcal/h 11910
Kw 14
refrigerant types R22
Control
method
capillaries
compressor types scroll Adjustable
Power(KW) 3.75*1
condenser types Warp type high efficiency radiator Custom production
Fan air volume(M/H) 9800 Adjustable
Motor power KW 0.45*2
evaporator types Tank Coil Type
copper
tube
water pump Charge pipe diameter ((DN) 15(4 points) taiwan
Cold water pipe diameter(DN) 25(1")
Freezing water(L/MIN) 100
Water tank capacity(L) 52
Power(KW) 0.375
Head(M) 18
security
protection
controller Compressor delayed start protection
pump reversal protection
Overcurrent protection
Phase sequence/phase loss protection
High and low pressure protection
Pump overload protection
Compressor overload protection
Bump
Controller
High and low voltage meters
filter
Phase sequence relay Schneider
AC contactors
main switch
Description
of the whole
machine
Weight(KG) 180 Length without body tube
Surface treatment Electrostatic spraying
Dimension(CM) 118*58*106



Specifications and technical parameters of kub-14af air-cooled chiller (5 pieces)
Serial number name Specification type performance parameter
1   model KUB-14AF
2 Refrigerating capacity 1Unit 1 kW 14(evaporation temperature 0 ℃, condensation temperature 40 ℃)
3 Cold media water
4 cryogen R22
5 Power Supply V 3N-380-50HZ
6 Overall power KW 3.5
7 Matching cable   Power line 2.5m2
8 Whole machine current A 8A
9 compressor type vortex
10 Cooling fan type External rotor axial flow fan
11 condenser type Aluminum fin sleeve copper tube type
  Condensing motor power KW 2*0.25
13 evaporator type Plate heat exchanger
15 Water tank volume
16 Make up port (DN)
17 Chilled water inlet and outlet pipe (DN) 25 1inch
18 Temperature digital display microcomputer controller Display status Full Chinese (English) display, real-time dynamic display
19 Pump power KW 0.55
20 Pump head rice 23
21 Chilled water flow Cubic meter / hour 4
22 Alarm device Abnormal temperature Alarm and shut down the compressor
23 Protector Reverse phase of power supply The power phase detection prevents the compressor from reversing
24 Protector safeguard High and low pressure protection antifreeze protection Overtemperature protection exhaust too high
25 Protector overload protection Thermal relay protection motor
26 Protector Compressor overheating The internal protector protects the compressor
27 Protector short circuit air switch
28 Overall dimension Length * width * height (mm) 1160*800*850
29 Machine weight KG 350
