Home > Products > Air Cooled Condensing Unit >

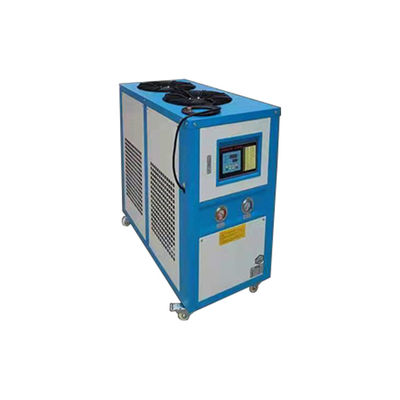

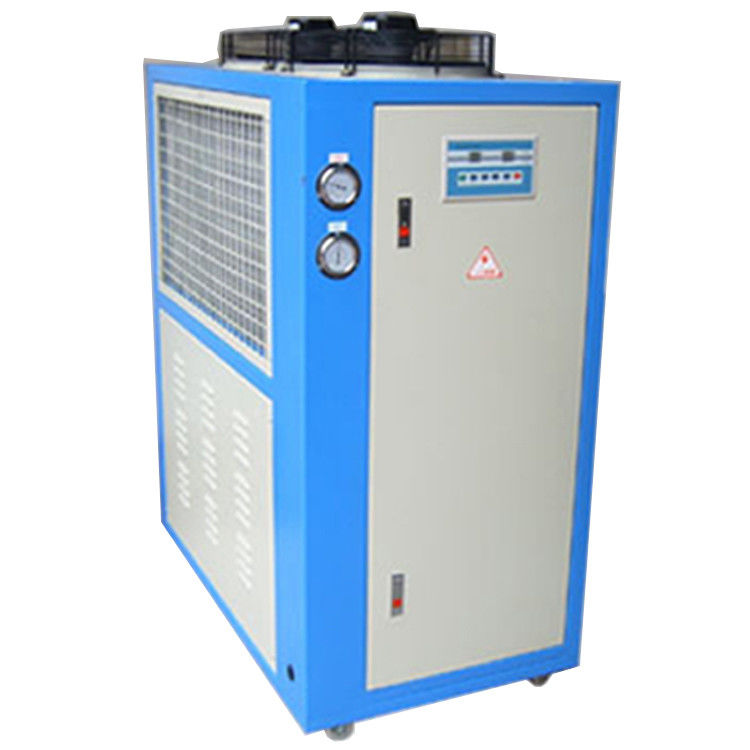

3HP air Cooled Condensing Units R404A Hermetic chiller

3HP air Cooled Condensing Units R404A Hermetic chiller

3HP Water Cooled Condensing Units

R404A Hermetic Condensing Unit

380V Hermetic Condensing Unit

Place of Origin:

Shanghai.China

Brand Name:

KUB

Certification:

CE

Model Number:

3HP

Contact Us
Request A Quote
3HP air Cooled Condensing Units R404A Hermetic chiller
3HP air Cooled Condensing Units R404A Hermetic chiller 3HP air Cooled Condensing Units R404A Hermetic chiller
Product Details
Voltage::
380V 50HZ
Refrigerant::
R22/R404A
Weight (KG)::
150
Cooling Capacity:
7146Kcal/h
Highlight:

3HP Water Cooled Condensing Units

,

R404A Hermetic Condensing Unit

,

380V Hermetic Condensing Unit

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden packaging
Delivery Time
20
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Set/Sets per Year
RELATED PRODUCTS
Good price Industrial Air Cooler with 32000W Cooling Capacity R22/R134a/R404a Refrigerant and 380V/3Ph/50Hz Voltage online

Industrial Air Cooler with 32000W Cooling Capacity R22/R134a/R404a Refrigerant and 380V/3Ph/50Hz Voltage

Get Best Price
Good price Industrial Air Cooler with 32000W Cooling Capacity 1 Year Warranty and R22/R134a/R404a Refrigerant for Cold Storage Rooms online

Industrial Air Cooler with 32000W Cooling Capacity 1 Year Warranty and R22/R134a/R404a Refrigerant for Cold Storage Rooms

Get Best Price
Good price Thermal Aluminum Low Temperature 40Hp Air Cooling Deep Freezer Copper Evaporator online

Thermal Aluminum Low Temperature 40Hp Air Cooling Deep Freezer Copper Evaporator

Get Best Price
Good price Best Quality Rotary Air Cooler Evaporator for Restaurant Refrigeration Tube Evaporator Core Motor Component with Compressor online

Best Quality Rotary Air Cooler Evaporator for Restaurant Refrigeration Tube Evaporator Core Motor Component with Compressor

Get Best Price
CONTACT US
13588563336
kub02@shkubao.com
86-021-53750132
Contact Now
Product Description

3HP air Cooled Condensing Units R404A Hermetic chiller 0




Parameters		   Configuration
power supply 3AC-380V-50HZ
cooling
capacity		 Kcal/h 7146
Kw 8.1
refrigerant types R22
Control
method		 capillaries
compressor types scroll Adjustable
Power(KW) 2.2*1
condenser types Warp type high efficiency radiator Custom production
Fan air volume(M/H) 3100 Adjustable
Motor power KW 0.164*2
evaporator types Tank Coil Type
copper
tube
water pump Charge pipe diameter ((DN) 15(4 points) taiwan
Cold water pipe diameter(DN) 25(1")
Freezing water(L/MIN) 100
Water tank capacity(L) 52
Power(KW) 0.375
Head(M) 18
security
protection		 controller Compressor delayed start protection
pump reversal protection
Overcurrent protection
Phase sequence/phase loss protection
High and low pressure protection
Pump overload protection
Compressor overload protection		 Bump
Controller
High and low voltage meters
filter
Phase sequence relay Schneider
AC contactors
main switch
Description
of the whole
machine		 Weight(KG) 150 Length without body tube
Surface treatment Electrostatic spraying
Dimension(CM) 105*50*99





3HP air Cooled Condensing Units R404A Hermetic chiller 13HP air Cooled Condensing Units R404A Hermetic chiller 23HP air Cooled Condensing Units R404A Hermetic chiller 33HP air Cooled Condensing Units R404A Hermetic chiller 43HP air Cooled Condensing Units R404A Hermetic chiller 53HP air Cooled Condensing Units R404A Hermetic chiller 63HP air Cooled Condensing Units R404A Hermetic chiller 7
