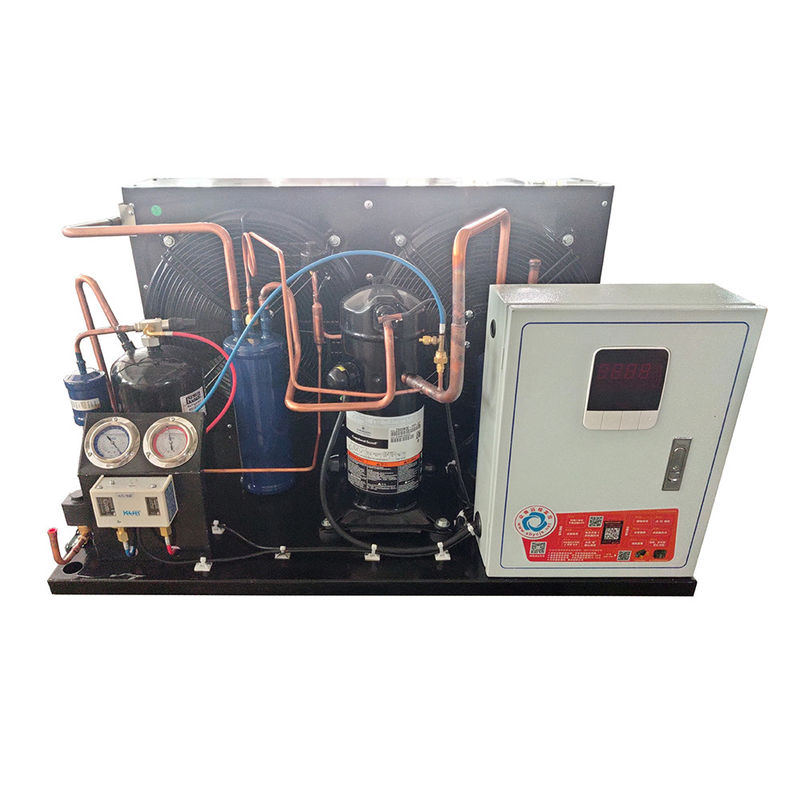

Vortex Refrigeration Integrated Power Box 380V Commercial Condensing Unit 3000m3/H

  • Vortex Refrigeration Integrated Power Box 380V Commercial Condensing Unit 3000m3/H
  • Vortex Refrigeration Integrated Power Box 380V Commercial Condensing Unit 3000m3/H
  • Vortex Refrigeration Integrated Power Box 380V Commercial Condensing Unit 3000m3/H
Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number ZSI09KQE
Minimum Order Quantity 1
Packaging Details Pallet packaging
Delivery Time 25
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 380V50Hz Structure Type Vortex
Weight 22kg Compressor Brand Copeland
Energy Efficiency Ratio 3.4wh Remote Control YES
High Light

Vortex Refrigeration Integrated Power Box

,

3000m3/H Integrated Power Box

,

3.4wh Commercial Condensing Unit
Leave a Message
Product Description

Zsi09kqe refrigeration equipment integrated control box commercial condensing unit

◆ Application For Various Cold Storage, Meat Prodessing Store,Commercial Cold Room , Vegetable,Fruit And Meat Preservation, Dairy Products Cooling, Medicine Stores,Seeds  Processing Store EtC,Temperature Range From +5°C To -23°C

◆ Low Noise, Low Vibration ,Stable Working With Copeland, Bitzer And Danfoss,T ecumseh,Dorin And Other Freezing Scroll Compressors



Technical Parameters
Unit Model Power(R22) Coolingcapaclty Air Condenser Evaporating Temperature(℃) ConnectionSpec.(mm] Dimension(rmm)
HP w AirFlow(m³/h] Fan Dla(mm) -12 -10 -5 0 5 10 Inlet Outlet AxBxC
ZB15H 2 3800 3000 1×400 3300 3550 4350 5200 6250 7400 16 10 700x600x580
ZB19H 2.5 4200 3000 1x400 3650 3950 4850 5850 7000 8300 16 10 700x600x580
ZB21H 3 5350 3000 1×400 4650 5050 6200 7450 8850 10500 16 10 700x600x580
ZB26H 3.5 5850 2*1800 2x350 5100 5550 6800 8200 9850 11700 19 12 900x650x480
ZB29H 4 6500 2*3000 2x400 5400 6050 7700 9650 11900 14400 19 12 1010x710x580
ZB38H 5 8450 2*3000 2x400 7300 8000 9950 12200 14650 17300 19 12 1010x710x580
ZB45H 6 10750 2*3000 2x400 9400 10200 12400 14900 17800 210007 19 12 1010x710x680
ZB58H 8 12800 4*1800 4x350 11800 14500 17700 21400 25700 305007 28 16 1010x710x680
ZB66H 9 15100 4*3000 4x400 13950 15100 18400 22200 26500 31500 28 16 1010x710x980
ZB76H 10 18100 4*3000 4x400 16400 17800 21700 25800 30500 35500 28 16 1010x710x980
ZB88H 12 21000 4*3000 4x400 18800 20400 24900 30000 36000 42000 28 16 1010x710x1280
ZB95H 13 22300 4*3000 4x400 19500 21400 26500 32000 38200 45200 28 16 1010x710x1280
ZB114H 16 27200 4*3000 4x400 23200 25500 31700 38500 46100 54500 35 16 1010x710x1280



Nominal working condition is based on Condensing Temp=40℃,Ambient Temp=35℃
