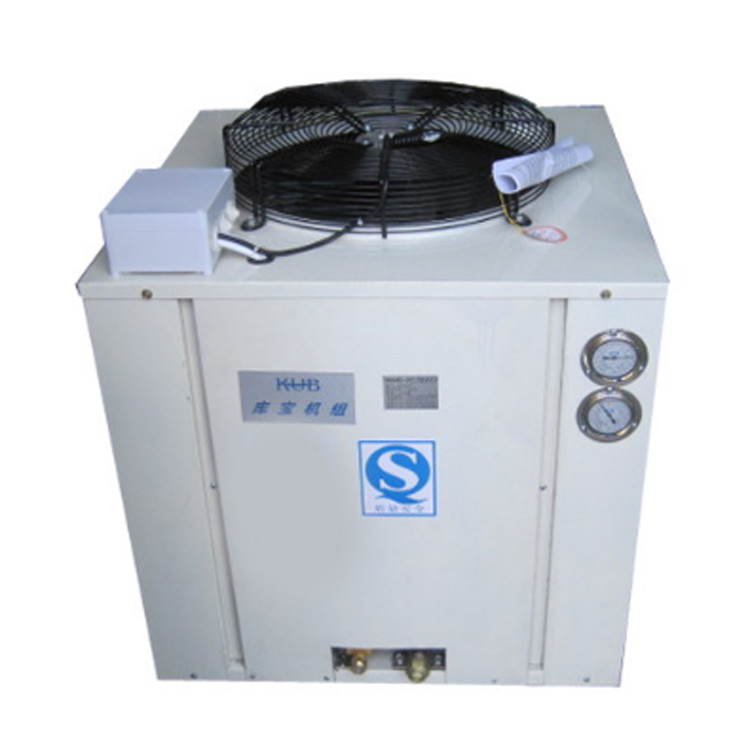

R134A 5HP Compressor Refrigeration Condensing Unit FUBZ-005/L

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | After Warranty Service | Online Support |
---|---|---|---|
Showroom Location | None | Machinery Test Report | Provided |
Warranty Of Core Components | 1 Year | Type | Condensing Unit |
Brand Name | KUB | Warranty | 1 Year |
Refrigerant | R404A/R134A/R22 | Brand | KUB |
Voltage | 380V/3Ph/50Hz | Horse Power | 5HP |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Local Service Location | None |
Video Outgoing-inspection | Provided | Marketing Type | Ordinary Product |
Core Components | Compressor | Place Of Origin | Shanghai, China |
After-sales Service Provided | Online Support, Online Support | Product Name | Cold Room Condensing Unit |
Application | Cold Storage | Compressor | Oil-less Compressor |
Compressor Type | Semi-hermetic Piston | Condenser | Air Cooled Condenser |
Highlight | 5HP Compressor Refrigeration Condensing Unit,R134A Compressor Refrigeration Condensing Unit,Semi Hermetic Piston Condensing Unit |
Model | Reservoir | Dimensions | Installation size | piper | weight | ||||
A | B | C | E | F | in | out | |||
L | mm | mm | mm | mm | mm | inch | inch | Kg | |
FUBZ-005/L | 8 | 990 | 753 | 857 | 950 | 530 | 1-1/8 | 1/2 | 113 |
FUBZ-008/L | 10 | 1240 | 803 | 852 | 1200 | 580 | 1-3/8 | 5/8 | 195 |
FUBZ-010/L | 10 | 1500 | 854 | 867 | 1460 | 630 | 1-3/8 | 5/8 | 210 |
FUBZ-012/L | 12 | 1500 | 903 | 875 | 1460 | 680 | 1-3/8 | 5/8 | 215 |
FUBZ-015/L | 16 | 1500 | 953 | 867 | 1460 | 730 | 1-5/8 | 3/4 | 261 |
FUBZ-020/L | 20 | 1606 | 1003 | 1004 | 1566 | 780 | 1-3/8 | 3/4 | 280 |
FUBZ-025/L | 25 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 3/4 | 326 |
FUBZ-030/L | 30 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 7/8 | 344 |
Features:
1, Compact structure, strong and durable
2, Uses high efficiency air-cooled condenser and realizes high heat exchange; Low power consumption
3, Uses R22, R134A, R404A and R507A as refrigerant
4, Used in medium, low and super low working condition
5, Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration
6, Easy operation: Design of unit almost considers installation of users, site installation only needs simple works and machine can be put in operation
7, Engineering practice conditions, design and assemble all types air-cooled condensing unit
8, Warranty period: 1 year
9. Semi-hermetic compressor / air cooled condensor. U Type condensing unit
Characteristics:
1.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)
2.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
3.Equipped with semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
6.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
