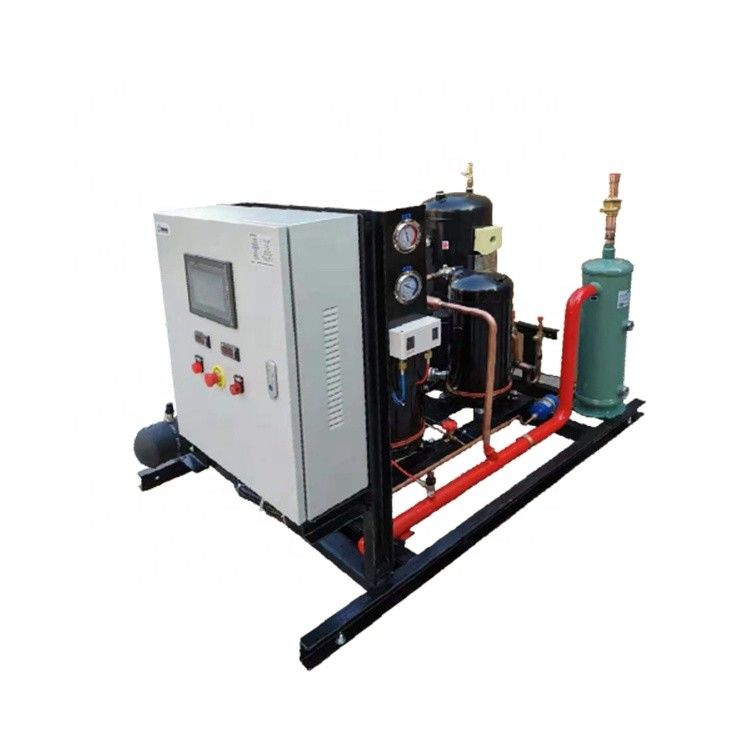

Parallel Compressor Refrigeration Condensing Unit 380V Cold Storage

  • Parallel Compressor Refrigeration Condensing Unit 380V Cold Storage
  • Parallel Compressor Refrigeration Condensing Unit 380V Cold Storage
Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number KBVA-130*6M ZB95KQE*6
Minimum Order Quantity 1
Price 12095-13587USD
Packaging Details Pallet packaging
Delivery Time 7
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New After Warranty Service Online Support
Showroom Location None Machinery Test Report Provided
Warranty Of Core Components 1 Year Type Condensing Unit
Brand Name KUB Warranty 1 Year
Compressor Hermetic Compressor Voltage 380V 50HZ
Controller Adjustable Key Words Refrigeration Unit
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Local Service Location None
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Core Components Compressor Place Of Origin Shanghai, China
After-sales Service Provided Online Support, Online Support Refrigerant R404a
Product Name Cold Room Condensing Unit Color Black
Condenser Type Air Cooler
High Light

Parallel Compressor Refrigeration Condensing Unit

,

2HP Refrigeration Condensing Unit

,

Refrigeration Condensing Unit 380V
Leave a Message
Product Description
Supply Ability
Supply Ability
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The wooden packaging
Port
shanghai
Lead Time:
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 25 35 To be negotiated


Hot sale parallel compressor condensing unit for big cold storage



Below is a list of the configurations of one of our KUB units for this series

And our standard configuration instructions for this parallel unit: (The list and instructions are for informational purposes only, in practice we will have senior engineers tailor the appropriate configuration for you)

ZB95KQE x6 parallel unit
    quantity
Base frame (by figure) 3400*1000*1500 1
compressor ZB95KQE 6
Oil heater   6
Shock-absorbing tube (domestic) 22 6
One-way valve 22 6
Oil storage oil separator CC76,DN65 1
Exhaust shut-off valve DN65 1
Seal the head DN65
tee
Horizontal reservoir CWX100, Import and Export 42,35 1
Import and export valves DN40 1
Filter (domestic) SR4811 1
Filter (domestic) D48   1
Respirator () 3 points 1
1/4 charge valve   1
Liquid ball valve 35 1

Back to the balloon valve DN80 1
Vapor separator type return tube 1   1

Return to the main tube 28 1
Electronic oil balance   6
Mirrors   1
Oil filter   1
Oil pressure differential controller   0
Hand valve   2
A pressure tube   1

The control section
Pressure Controller (KUB) 6
High-pressure meter (domestic)   1
Low-pressure meter (domestic)   1
Tableboard (by figure)   1
Hand valve 2 points   2
Pressure transmitter (4-20MA)   1
Pressure transmitter (4-20MA)   1

Parallel unit control box   1
Controller (New Asian PLC-Touchscreen) 1
Schneider contactor   1



Copeland compressor ZB series parallel unit parameters







Unit
model		 compressor temperature-25℃ temperature-20℃ temperature-15℃ Interface(mm) Form factor
Model Nominal quantit amount power amount power amount power inhale suppl exhaus Infusio l w H
6-12 ZB15KQWE 2HP 6 11220 10140 1440 10020 18000 9780 45 19 28 22 4500 1000 1500
6-18 ZB21KQWE 3HP 6 18000 13440 2220 13440 27300 13440 45 19 28 22 4500 1000 1500
6-24 ZB29KQWE 4Hp 6 24420 17760 3024 17820 36960 17820 45 22 35 22 4500 1000 1500
6-30 ZB38KQWE 5HP 6 30600 22500 3750 22560 46200 22560 45 22 35 22 4500 1000 1500
6-36 ZB45KQWE 6HP 6 36000 25800 4440 25860 54300 25860 57 22 35 22 4500 1000 1500
6-42 ZB48KQWE 7HP 6 39474 27906 4890 27954 59814 27948 76 28 42 28 4500 1000 1500
6-48 ZB58KQWE 8Hp 6 42300 35100 5550 34800 70200 34500 76 35 42 35 4500 1000 1500
6-54 ZB66KQWE 9Hp 6 53400 37200 6660 37500 81300 37800 76 35 42 35 4500 1o00 1500
6-60 ZB76KQWE 10HP 6 65400 43500 7980 43800 96600 44400 76 35 57 45 4500 1000 1500
6-72 ZB88KQWE 12HP 6 0 0 0 0 0 0 0 0 0 0 0 0 0
6-78 ZB95KQWE 13HP 6 69600 56100 9360 56400 117600 56580 89 42 76 57 4500 1000 1500
6-90 ZB114KQWE 15HP 6 81300 67080 1098 67320 138300 67560 89 42 76 57 4500 1000 1500
