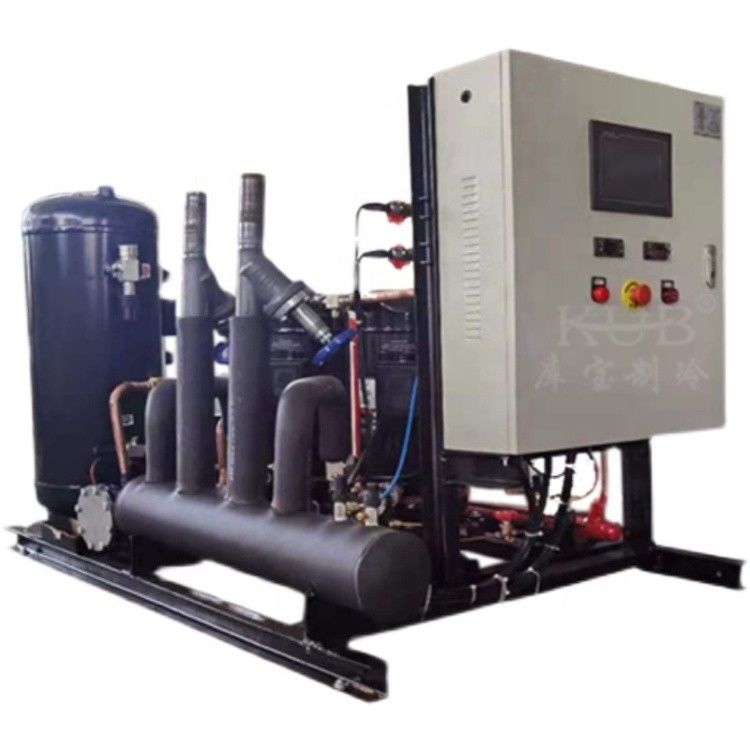

Scroll Parallel Refrigeration Condensing Unit Compressor Condenser Unit

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | After Warranty Service | Online Support |
---|---|---|---|
Showroom Location | None | Machinery Test Report | Provided |
Warranty Of Core Components | 1 Year | Type | Condensing Unit |
Brand Name | KUB | Compressor | Hermetic Compressor |
Voltage | 380V 50HZ | Controller | Adjustable |
Key Words | Refrigeration Unit | Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
Local Service Location | None | Video Outgoing-inspection | Provided |
Marketing Type | Ordinary Product | Core Components | Compressor |
Place Of Origin | Shanghai, China | After-sales Service Provided | Online Support, Online Support |
Refrigerant | R404a | Product Name | Cold Room Condensing Unit |
Color | Black | Condenser Type | Air Cooler |
Usage | Refrigeration Part | ||
Highlight | Scroll Parallel Refrigeration Condensing Unit,R404a Compressor Condenser Unit,Black Compressor Condenser Unit |
Shanghai factory provide refrigeration system scroll parallel compressor unit
Below is a list of the configurations of one of our KUB units for this series
And our standard configuration instructions for this parallel unit: (The list and instructions are for informational purposes only, in practice we will have senior engineers tailor the appropriate configuration for you)
List of ZB95KQE four parallel unit modules | quantity | |
Base frame (by figure) | 1 | |
compressor | ZB95KQE | 4 |
Oil heater | 4 | |
Shock-absorbing tube (domestic) | ||
One-way valve | 22 | 4 |
Oil storage oil separator | 42 interface F-6613Q | 1 |
Exhaust shut-off valve | DN50 | 1 |
Seal the head | DN50 | |
tee | ||
Horizontal reservoir | CWX100, Import and Export 42,35 | 1 |
Import and export valves | DN40 | 1 |
Filter (domestic) | SR4811 | 1 |
Filter (domestic) D48 | 1 | |
Respirator () | 3 points | 1 |
1/4 charge valve | 1 | |
Liquid ball valve | 35 | 1 |
Back to the balloon valve | DN65 | 1 |
Vapor separator type return tube 1 | 1 | |
Return to the main tube | 28 | 1 |
Electronic oil balance | 4 | |
Mirrors | 1 | |
Oil filter | 1 | |
Oil pressure differential controller | 0 | |
Hand valve | 2 | |
A pressure tube | 1 | |
The control section | ||
Pressure Controller (KUB) | 4 | |
High-pressure meter (domestic) | 1 | |
Low-pressure meter (domestic) | 1 | |
Tableboard (by figure) | 1 | |
Hand valve 2 points | 4 | |
Pressure transmitter (4-20MA) | 1 | |
Pressure transmitter (4-20MA) | 1 | |
Parallel unit control box | 1 | |
Controller (New Asian PLC-Touchscreen) | 1 | |
Schneider contactor | 1 |
Unit model |
compressor | temperature-25℃ | temperature-20℃ | temperature -15℃ | lnterface (mm) | Form factor | ||||||||||
Model | Nominal | quanti | amount | power | amount | power | amount | power | inhale | Suppl | exhaus | Infusio | L | W | H | |
4-8 | ZB15KQWE | 2HP | 4 | 7480 | 6760 | 9600 | 6680 | 12000 | 6250 | 35 | 19 | 28 | 22 | 3000 | 100o | 1500 |
4-12 | ZB21KQWE | 3HP | 4 | 12000 | 8960 | 14800 | 8960 | 18200 | 8960 | 35 | 19 | 28 | 22 | 3000 | 1000 | 1500 |
4-16 | ZB29KoWE | 4HP | 4 | 16280 | 11840 | 20160 | 11880 | 24640 | 11880 | 42 | 22 | 28 | 22 | 3000 | 1000 | 1500 |
4-20 | ZB38KQWE | 5HP | 4 | 20400 | 15000 | 25000 | 15040 | 30800 | 15040 | 42 | 22 | 28 | 22 | 3000 | 1000 | 1500 |
4-24 | ZB45KQWE | 6HP | 4 | 24000 | 17200 | 29600 | 17240 | 36200 | 17240 | 57 | 22 | 35 | 22 | 3000 | 1000 | 1500 |
4-28 | ZB48KQWE | 7HP | 4 | 26316 | 18604 | 32600 | 18636 | 39876 | 18632 | 57 | 22 | 35 | 22 | 3000 | 1000 | 1500 |
4-32 | ZB58KQWE | 8HP | 4 | 28200 | 23400 | 37000 | 23200 | 46800 | 2300o | 76 | 28 | 42 | 35 | 3000 | 1000 | 1500 |
4-36 | ZB66KQWE | 9HP | 4 | 35600 | 24800 | 44400 | 25000 | 54200 | 25200 | 76 | 28 | 42 | 35 | 3000 | 1000 | 1500 |
4-40 | ZB76KQWE | 10HP | 4 | 43600 | 29000 | 53200 | 29200 | 64400 | 2960o | 76 | 28 | 42 | 35 | 3000 | 1000 | 1500 |
4-48 | ZB88KQWE | 12HP | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
4-52 | ZB95KQWE | 13HP | 4 | 46400 | 37400 | 62400 | 37600 | 78400 | 37720 | 76 | 35 | 42 | 35 | 3000 | 1000 | 1500 |
4-60 | ZB114KQWE | 15HP | 4 | 54200 | 44720 | 73200 | 44880 | 92200 | 45040 | 76 | 35 | 42 | 35 | 3000 | 1000 | 1500 |
5-10 | ZB15KQWE | 2HP | 5 | 9350 | 8450 | 12000 | 8350 | 15000 | 8150 | 45 | 19 | 28 | 22 | 3500 | 1000 | 1500 |
5-15 | ZB21KQWE | 3HP | 5 | 15000 | 11200 | 18500 | 11200 | 22750 | 11200 | 45 | 19 | 28 | 22 | 3500 | 1000 | 1500 |
5-20 | ZB29KQWE | 4HP | 5 | 20350 | 14800 | 25200 | 14850 | 30800 | 14850 | 45 | 19 | 28 | 22 | 3500 | 1000 | 1500 |
5-25 | ZB38KQWE | 5HP | 5 | 25500 | 18750 | 31250 | 18800 | 38500 | 18800 | 45 | 22 | 35 | 28 | 3500 | 1000 | 1500 |
5-30 | ZB45KQWE | 6HP | s | 30000 | 21500 | 3000 | 21550 | 45250 | 21550 | 45 | 22 | 35 | 28 | 3500 | 1000 | 1500 |
5-35 | ZB48KQWE | 7HP | s | 32895 | 23255 | 40750 | 23295 | 49845 | 23290 | 57 | 22 | 35 | 28 | 3500 | 1000 | 1500 |
5-40 | ZB58KQWE | 8HP | 5 | 35250 | 29250 | 46250 | 29000 | 58500 | 28750 | 76 | 28 | 45 | 35 | 3500 | 1000 | 1500 |
5-45 | ZB66KQWE | 9HP | 5 | 44500 | 31000 | 55500 | 31250 | 67750 | 31500 | 76 | 28 | 45 | 35 | 3500 | 1000 | 1500 |
5-50 | ZB76KQWE | 10HP | 5 | 54500 | 36250 | 66500 | 36500 | 80500 | 37000 | 76 | 28 | 57 | 45 | 3500 | 1000 | 1500 |
5-55 | ZB88KQWE | 12HP | 5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
5-60 | ZB95KQWE | 13HP | 5 | 58000 | 46750 | 78000 | 47000 | 98000 | 47150 | 76 | 35 | 57 | 45 | 3500 | 1000 | 1500 |
5-75 | ZB114KQWE | 15HP | 5 | 67750 | 55900 | 91500 | 56100 | 115250 | 56300 | 76 | 35 | 57 | 45 | 3500 | 1000 | 1500 |
