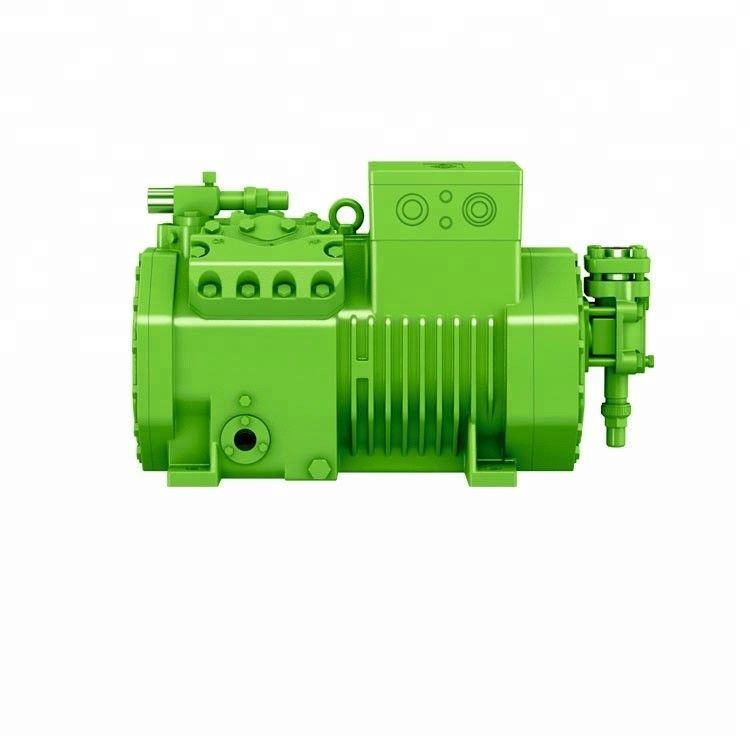

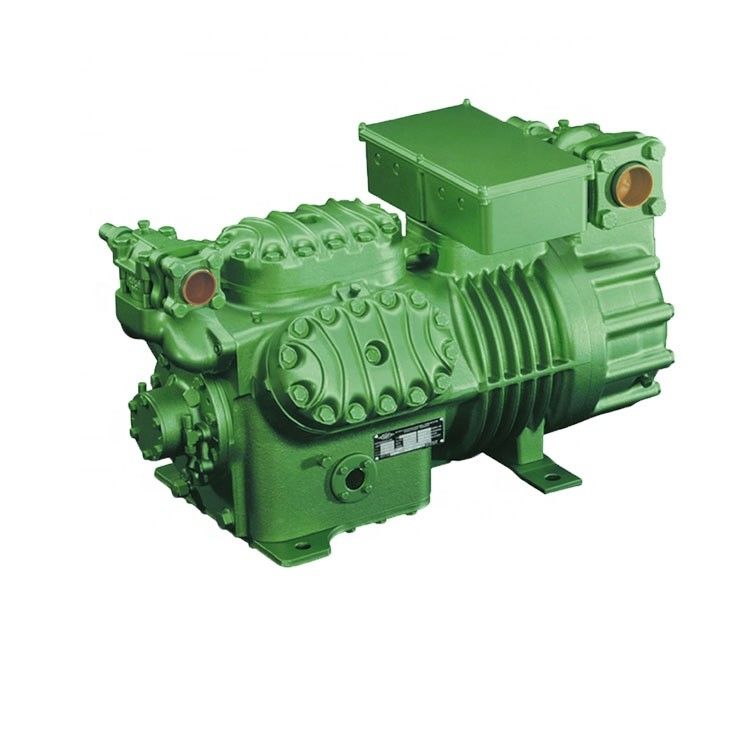

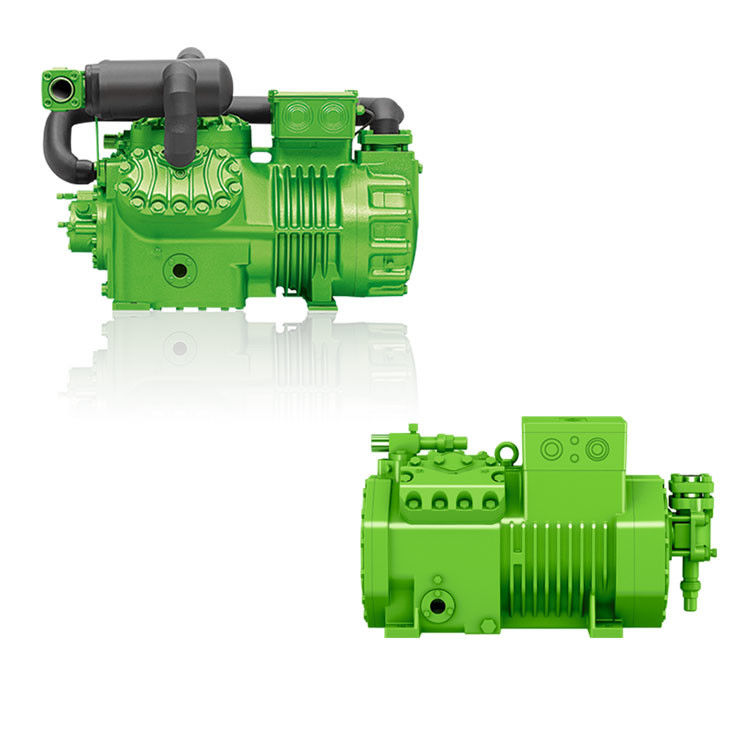

S4T-5.2Y Two Stage Semi Hermetic Compressor 5HP 380V CE Piston Compressor

Place of Origin Shanghai, China
Brand Name Famous
Certification CE
Model Number S4T-5.2Y
Minimum Order Quantity 1
Packaging Details Pallet packaging
Delivery Time 7
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
After Warranty Service Online Support Showroom Location None
Machinery Test Report Provided Place Of Origin Beijing, China
Type Refrigeration Compressor, Piston Warranty 1 Year
Power Source AC Power Power 5HP
Packing Wooden Case Weight 136KG
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Local Service Location None
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Brand Name Famous Application Refrigeration Parts
After-sales Service Provided Online Support Lubrication Style Oil-less
Product Piston Compressor Product Name Refrigeration Compressor
Voltage 380V
High Light

Two Stage Semi Hermetic Compressor

,

S4T-5.2Y Semi Hermetic Compressor

,

Semi Hermetic Compressor 5HP

Leave a Message
Product Description
Model S4T-5.2Y Original Made in China
Gas R404a Horsepower 5HP



R22

Cooling capacity(w)

TeDe -20 -25 -30 -35 -40 -45 -50
30 9810 8140 6660 5370 4250 3290 2470
35 9660 8010 6550 5280 4170 3220 2410
40 9510 7880 6440 5190 4100 3160 2360
45 9370 7770 6350 5110 4040 3110
50 9240 7670 6270 5050 3980
55 9120 7580 6200 4990





Power consumption(kw)

TeDe -20 -25 -30 -35 -40 -45 -50
30 3,85 3,64 3,40 3,15 2,88 2,58 2,27
35 4,09 3,86 3,62 3,35 3,05 2,73 2,38
40 4,34 4,10 3,84 3,55 3,23 2,88 2,50
45 4,61 4,35 4,07 3,75 3,41 3,04
50 4,89 4,60 4,29 3,96 3,59
55 5,18 4,86 4,52 4,15





R404A

Cooling capacity(w)

TeDe -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
30 9160 7660 6330 5160 4160 3290 2550 1930 1410 980
35 9000 7510 6210 5070 4080 3220 2500 1880 1370 940
40 8830 7370 6610 4970 3990 3150 2430 1830 1320
45 8660 7230 5970 4870 3910 3080 2370 1780
50 8500 7100 5860 4780 3830 3020 2320
55 8350 6980 5770 4700 3770 2970



Power consumption(kw)

TeDe -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
30 4,50 4,20 3,88 3,54 3,19 2,84 2,49 2,15 1,81 1,50
35 4,80 4,47 4,12 3,75 3,37 2,98 2,60 2,22 1,86 1,52
40 5,10 4,74 4,36 3,96 3,55 3,13 2,72 2,31 1,91
45 5,41 5,01 4,59 4,17 3,73 3,29 2,84 2,39
50 5,72 5,28 4,83 4,38 3,92 3,45 2,98
55 6,05 5,55 5,07 4,60 4,12 3,63
