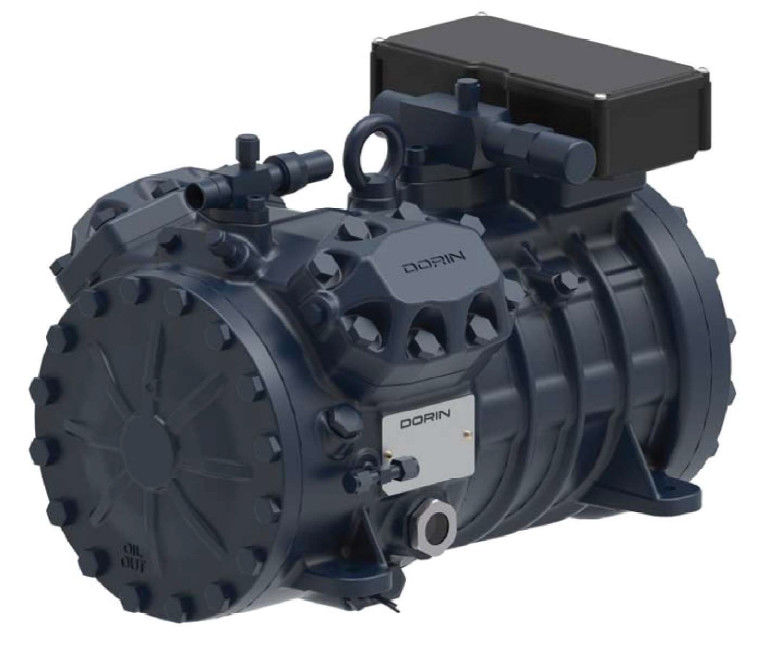

H1500CS Stationary Cold Storage Compressor Lubricated R22 Refrigerant

Place of Origin Shanghai, China
Brand Name DORIN
Certification CE
Model Number H1500CS
Minimum Order Quantity 1
Packaging Details Pallet packaging
Delivery Time 7
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Configuration Stationary
Lubrication Style Lubricated Place Of Origin Italy
Voltage 380V Weight 300kg
Warranty 1 Year Type PISTON
Power Source AC POWER Mute Yes
Brand Name DORIN Dimension(L*W*H) 400*400*550mm
Certification CE After-sales Service Provided Online Support, Engineers Available To Service Machinery Overseas
High Light

Stationary Cold Storage Compressor

,

Lubricated Cold Storage Compressor

,

R22 Cold Storage Compressor

Leave a Message
Product Description

H1500CS Stationary Cold Storage Compressor Lubricated R22 Refrigerant



R134R

Evaporating temperature (℃)
Cond. Temp. (℃)   +20 +15 +10 +5 0 -5 -10 -15 -20
35 Q   46830 38880 31910 25840 20620 16180 12450 9380
P   7.11 6.93 6.63 6.24 5.77 5.25 4.7 4.12
45 Q 49370 41290 34160 27910 22490 17830 13860 10530 7760
P 8.86 8.54 8.11 7.59 7 6.35 5.68 4.99 4.31
35 Q     44040 36420 29780 24040 19120 14950 11470
P     7.9 7.56 7.14 6.66 6.13 5.57 4.98
45 Q     38840 31950 25960 20800 16390 12660 9530
P     9.32 8.73 8.08 7.39 6.68 5.95 5.22

Refrigerating capacity / Q [w]

Power input / P [KW]



R450A

Evaporating temperature (℃)
Cond. Temp. (℃)   +20 +15 +10 +5 0 -5 -10 -15 -20
35 Q   40980 34030 27920 22590 18000 14100 10820 8130
P   6.33 6.19 5.93 5.58 5.17 4.7 4.19 3.68
45 Q 43030 35990 29780 24330 19590 15510 12040 9120 6700
P 7.92 7.64 7.26 6.78 6.24 5.66 5.04 4.42 3.81
35 Q     38590 31870 26010 20940 16610 12950 9920
P     7.04 6.75 6.38 5.95 5.47 4.97 4.45
45 Q     33820 27830 22600 18080 14220 10950 8210
P     8.32 7.78 7.19 6.56 5.91 5.26 4.62

Refrigerating capacity / Q [w]

Power input / P [KW]



R513A

Evaporating temperature (℃)
Cond. Temp. (℃)   +20 +15 +10 +5 0 -5 -10 -15 -20
35 Q   48150 40270 33290 27170 21860 17290 13430 10220
P   7,48 7,27 6,96 6,56 6,09 5,56 4.99 4,4
45 Q 49640 41850 34910 28780 23400 18720 14700 11280 8410
P 9,38   8,53 7,97 7,36 6,7 6 5,3 4,59
35 Q     45410 37820 31170 25390 20400 16140 12530
P     8,21 7,89 7,49 7,01 6,48 5,91 5,31
45 Q     39530 32770 26870 21740 17320 13550 1035o
P     9,7 9.13 8,49 7,8 7,07 6,33 5,58

Refrigerating capacity / Q [w]

Power input / P [KW]
