Place of Origin	Shanghai, China
Brand Name	KUB
Certification	CE
Model Number	KUB2500
Minimum Order Quantity	1
Price	6600-6800USD
Packaging Details	Pallet packaging
Delivery Time	20
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	1000 Piece/Pieces per Year

Condition	New	After Warranty Service	Online Support
Showroom Location	None	Machinery Test Report	Provided
Warranty Of Core Components	1 Year	Type	Chiller
Brand Name	KUB	Warranty	1 Year
Product Name	Water Chillers	Compressor	25HP Compressor
Voltage	380V/3Ph/50Hz	Key Words	Chiller
Original	Shanghai.China	Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Local Service Location	None	Video Outgoing-inspection	Provided
Marketing Type	Ordinary Product	Core Components	Compressor
Place Of Origin	Shanghai, China	After-sales Service Provided	Online Support
Refrigerant	R22/R404A	Application	Industrial
Brand	KUB	Packing	Wooden Case
Condenser Type	Air Cooler Condenser

Quantity(Sets)	1 - 1	2 - 5	>5
Est. Time(days)	20	25	To be negotiated

3. Main technical parameters:
1. Air-cooled chiller (fully enclosed compressor)
The following calibration conditions: the return temperature of the chilled water is 12°C, the outlet temperature is 7°C, and the ambient temperature is 35°C;
Model			LSQ-
Model			03AHE	05AHE	08AHE	10AHE	12AHE	15AHE	25AHE	30AHE	40AHE
Cooling Capacity		KW	7.9	13.1	21.2	28.0	32.0	42.0	64.0	84.0	108.0
Power supply			3P-380V-50Hz
Machine Power		KW	3.13	4.81	801	10.21	11.8	15.1	23.6	30.2	38.8
Machine current		A	5.9	9.9	16	17.6	21.4	27.7	42.7	55.4	68.3
Compressor	type		Hermetic scroll compressor
Compressor	Input power	KW	2.56	4.01	6.1	8.3	9.2	12.4	18.3	24.8	32.2
Condensor	type		Copper tube aluminum fin heat exchanger
Condensor	Input power	KW	0.2	0.25	1.16	1.16	1.16	1.2	2.2	3.48	3.6
Evaporator	type		Water tank immersed heat exchanger		Dry shell and tube heat exchanger (or plate heat exchanger)
	Water Connections		DN25		DN40			DN50		DN65
	Rated flow	m³/h	1.4	2.3	3.6	4.8	5.5	7.2	11.0	14.4	18.6
Refrigerant			R22
Chilled water pumps	Type		High efficiency, low noise centrifugal water pump
	Input power	KW	0.37	0.55	0.75	0.75	1.5	1.5	1.5	2.2	2.2
	Head	mH2O	17	22	23	20	18	25	24	23	22
Nominal volume of water tank		L	85	90	100	120	150	250	320	350	400
Dimension	L	mm	1250	1400	1550	1550	1600	1750	2050	50	2550
	W	mm	810	810	810	850	850	1000	1250	1250	1350
	H	mm	1350	1390	1550	1550	1550	1600	1600	1850	2050

The following calibration conditions: freezing medium (ethylene glycol aqueous solution) inlet water temperature -11°C, outlet water temperature -15°C, ambient temperature 35°C;
Model			LSQ-
Model			05ALE		08ALE		10ALE		12ALE	15ALE
Cooling Capacity		KW	5.2		6.9		11.2		13.3	16.0
Power supply			3P-380V-50Hz
Machine Power		KW	5.42		8.8		10.7		13.0	15.7
Machine current		A	10.7		17.7		19.2		23.2	29.8
Compressor	type		Hermetic scroll compressor
Compressor	Input power	KW	4.7		7.5		9.2		10.7	13.0
Condensor	type		Copper tube aluminum fin heat exchanger
Condensor	Input power	KW	0.2		0.58		0.75		0.75	1.2
Evaporator	type		Dry shell and tube heat exchanger
	Water Connections		DN25		DN40					DN50
	Rated flow	m³/h	1.2		1.6		2.6		3.1	3.7
Refrigerant			R404A
Chilled water pumps	Type		High efficiency, low noise centrifugal water pump
	Input power	KW	0.55		0.75		0.75		1.5	1.5
	Head	mH2O	21		22		19		17	25
Nominal volume of water tank		L	90		100		115		145	250
Dimension	L	mm	1250		1400		1550		1550	1600

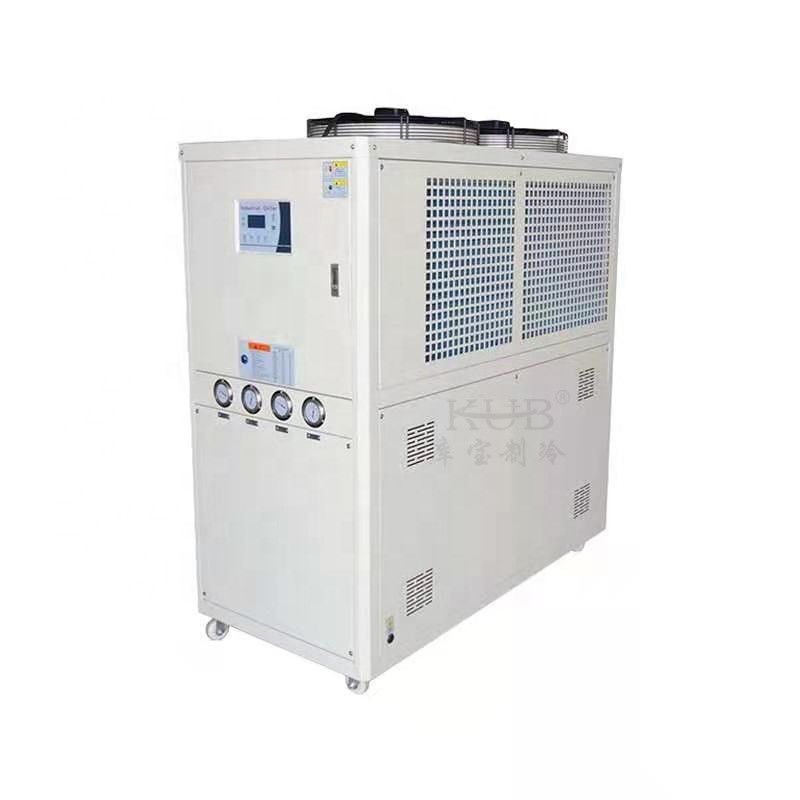

KUB2500 Made in China Air cooled compact chiller 25HP compressor water chillers
