Stationary 5HP Semi Hermetic Compressor R404A Refrigerant D2SC-55X
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops | Type | PISTON |
|---|---|---|---|
| Power Source | AC POWER | Mute | Yes |
| Brand Name | Copeland | Dimension(L*W*H) | 835*590*670 |
| Warranty | One Year | Refrigerant | R404A/507C |
| Weight | 360KG | Condition | New |
| Configuration | Stationary | Lubrication Style | Lubricated |
| Place Of Origin | Germany | Voltage | 380V |
| Certification | CE | After-sales Service Provided | Rovided: Online Support, Engineers Available To Service Machinery Overseas |
| Refrigeration Capacity | 5HP | ||
| High Light | 5HP Semi Hermetic Compressor,Stationary Semi Hermetic Compressor,R404A Refrigerant Semi Hermetic Compressor |
||
Product Description

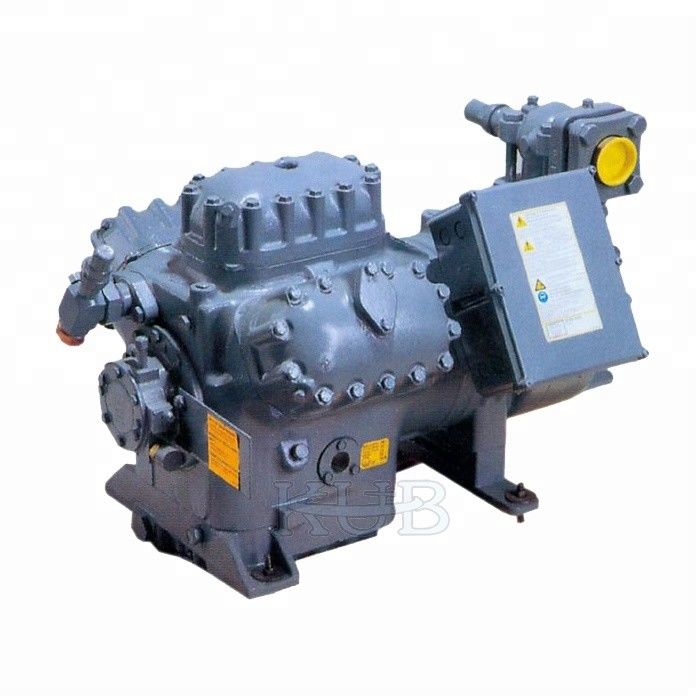

Stationary 5HP Semi Hermetic Compressor R404A Refrigerant D2SC-55X
Technical data
Cylinder count: 2
Displacement [m³/h]: 26,8
Weight [kg]: 82
Oil charge [dm³]: 2,5
Max. operating current [A]: 13,1
Locked rotor current [A]: 74,1
Power supply [V/~/Hz]: 380V/3/50Hz
Standard equipment:oil pump,oil sight glass,Rotalock valves,thermal protections
Optional equipment
additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control
Application
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R404A/R507 from -5 ºC to -45 ºC)
(R407C from 12,5 ºC to -20 ºC)
Capacity : R22, R404A/R507
Optional equipment
additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control
Application
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R404A/R507 from -5 ºC to -45 ºC)
(R407C from 12,5 ºC to -20 ºC)
Capacity : R22, R404A/R507
| Compressor | Displacement | Number | Length | Height | Suction | Discharge | Oil | Gross |
| @50HZ | of | width | H | line | line | Quantity | Weight | |
| m²/h | cylinders | L/B mm | mm | SL inch | DL inch | L | KG | |
| D2SA-450 Air | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SA-45X Air | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SA-450 Air | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SA-45X | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SA-550 | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SA-55X | 22.4 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 95 |
| D2SC-550 Air | 26.8 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 96 |
| D2SC-55X Air | 26.8 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 96 |
| D2SC-550 | 26.8 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 96 |
| D2SC-55X | 26.8 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 96 |
| D2SC-650 | 26.9 | 2 | 560/330 | 395 | 1 1/8 | 7/8 | 2.4 | 96 |
| D2SC-55X | Q | 30 | 1.84 | 3.65 | 5.05 | 6.8 | 8.8 | 1.2 | 14 | 17.2 | 20,90 |
| 40 | 1.09 | 2.04 | 4.05 | 5.55 | 7.35 | 9.45 | 11.9 | 14.7 | 17,90 | ||
| 50 | 1.19 | 2.12 | 4.25 | 5.75 | 7.55 | 9.6 | 12.05 | 14,85 | |||
| P | 30 | 2,11 | 2.66 | 3.22 | 3.77 | 4.29 | 4.77 | 5.2 | 5.55 | 5.75 | |
| 40 | 1,93 | 2.54 | 3.18 | 3.85 | 4.51 | 5.15 | 5.75 | 6.3 | 6,80 | ||
| 50 | 2.31 | 3.02 | 3.77 | 4.55 | 5.35 | 6.1 | 6.85 | 7.55 |
| Description |
| SOLENOID CASTEL VALVE HF2 3/8" |
| COLD ROOM DOOR LOCK LATCHES PN:YL-1178 |
| DIAGNOSE INT69-2 COPELAND PN:22A445S44 |
| SUCTION ACCUMULATOR EMERSON PN:A-AS5139 |
| COLD ROOM DOOR HINGE COOLMAX PN:CCM-1470-H |
| REFRIGERATION DUAL PRESSURE CONTROL 5-30 BAR |
| AXIAL FAN PASS YDWF74L34P4-350S |
| DWM COPELAND COMPRESSOR DKSLP-20X-EWL DKL-20X |
| AXIAL FAN MOTOR WEIGUANG YWF4D-400S |
| DIGITAL TEMPERATURE CONTROL TWO SENSOR PN:STC-9200 |
| DIGITAL TEMPERATURE CONTROL TWO SENSOR PN:CP-6000 |
| STEEL DOOR CLOSER PN:CM-1230 |
| THERMOSTATIC EXPANSION VALVES DANFOSS PN:BE2216E |
| FAN MOTOR WEIGUANG YZF 18-30 |
| DWM COPELAND COMPRESSOR DLLP-30X-EWL DLL-30X |
