HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

Place of Origin Shanghai, China
Brand Name BOCK
Certification CE
Model Number HGX66e/1750-4S
Minimum Order Quantity 1
Packaging Details Carton
Delivery Time 7days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 Piece/Pieces per Year
Product Details
Compressor Type Semi-hermitic Compressors Refrigerant R134A
Voltage 380v-420v /3 Ph / 50Hz Model HGX66e/1750-4S
Weight 282KG Brand BOCK
Warranty 1 Year Place Of Origin China
High Light

Cold Storage Temperature Data Logger

,

IP67 Enabled Alarm Temperature Data Logger

,

Refrigerated Containers Temperature Data Logger

Leave a Message
Product Description

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

Compressor model HGX66e/1750-4S Application Refrigeration & AC Motor 380-420V Y/YY -3- 50Hz PW
Refrigerant R134a Supply frequency 50Hz Evaporating pressure (abs.) 3.5Bar
Evaporating temperature 5.0℃ Evaporating temperature 50℃ Compressor refrigeration capacity 83.6KW
Number of cylinders / Bore / Stroke 6 / 80 mm / 58 mm
Displacement 50/60 Hz (1450/1740 ¹/min) 152,2 / 182,6 m³/h
Voltage 1) 380-420V Y/YY -3- 50Hz PW
  440-480V Y/YY -3- 60Hz PW
Winding divided into 50% / 50%
Max. working current 2) 86.8 A
Max. power consumption 2) 50.7 kW
Starting current (rotor blocked) 2) 222.0 / 361.0 A
Motor protection INT69 G
Protection terminal box IP 66
Weight 282 kg
Frequency range 3) 25 - 60 Hz
Max. permissible overpressure (g) (LP/HP) 4) 19 / 28 bar
Connection suction line SV 54 mm - 2 1/8 "
Connection discharge line DV 42 mm - 1 5/8 "
Lubrication Oil pump
Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A BOCKlub E55
Oil type R22 BOCKlub A46
Oil charge 4,4 Ltr.
Oil sump heater 230 V - 1 - 50/60 Hz, 160 W
Dimensions Length / Width / Height 810 / 557 / 467 mm
Sound power level LWA 5) 89 db(A) @ -35/+40 °C
  86 db(A) @ -10/+45 °C
  86 db(A) @ +5/+50 °C
Sound pressure level LpA 5) 75 db(A) @ -35/+40 °C
  72 db(A) @ -10/+45 °C
  72 db(A) @ +5/+50 °C
1) Tolerance (± 10%) relates to the mean value of the voltage range. Other voltages and current types on request

All data are based on voltage rms values

PW = part winding, motors for part winding starting
(no start unloaders required)
Designs for Y/D on request
2) - The stated value for the max. power consumption is valid for the adjusted power supply.

- Starting current (rotor blocked):
  • Part winding (PW) motors: Winding 1 / Winding 1+2
  • Delta/Star (Δ/Y) motors: Δ / Y
- Take account of the max. operating current / max. power consumption for designing motor contractors, feed lines, fuses and motor protection switches. Motor contractors: Consumption category AC3.
3) The maximum permissible working current of the compressor (Imax) must not be exceeded. Take account of the guidelines for use of frequency inverter (see compressor assembly instruction or selection software).
4) LP = Low pressure
HP = High pressure
5) Declared dual-number noise emission values are in accordance with ISO 4871. The corresponding uncertainty to the sound power level is KWA = 2,5 dB and to the sound pressure level is KpA = 2,5 dB. The values are valid for 50 Hz with the refrigerant R404A at the standard rating points according to EN 12900.
  • A-weighted sound power level LWA (re 1 pW), in decibel. To determine the values, measurement methods of the ISO 3740 standard with accuracy class 2 or higher were used .
  • A-weighted sound pressure level LpA (re 20 µPa), in decibel. The values are calculated from the sound power level in accordance with ISO 11203: LpA = LWA - Q2 at a distance of d = 1m to the reference box.

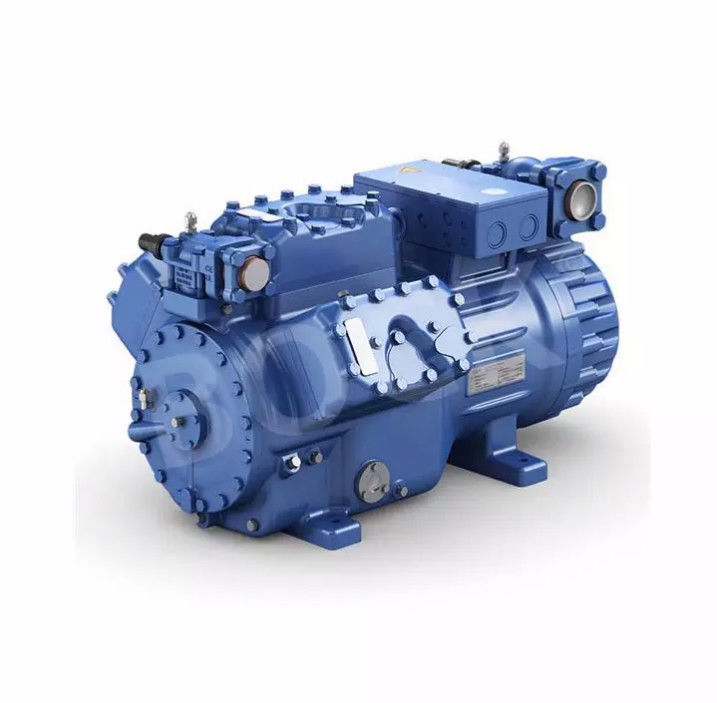

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

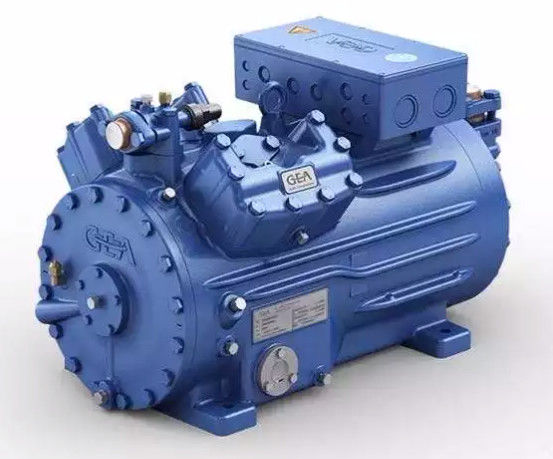

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

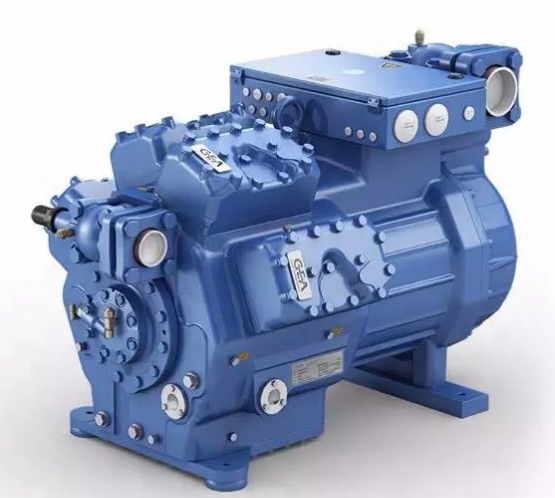

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

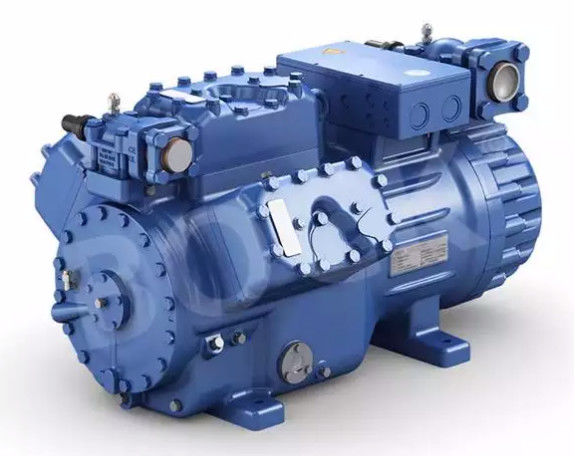

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

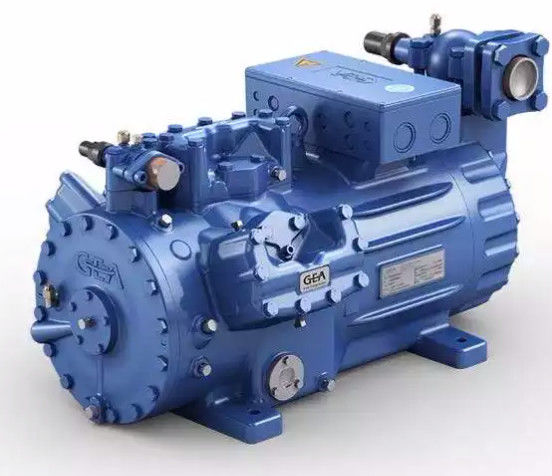

HGX66e/1750-4S Bock R134A compressor refrigeration compressor price



HGX66e/1750-4S Bock R134A compressor refrigeration compressor price

Dimensions and connections
SV Suction line valve, tube ø 1) 54 mm - 2 1/8 "
DV Discharge line valve, tube ø 1) 42 mm - 1 5/8 "
A Connection suction side, not lockable 1/8 " NPTF
A1 Connection suction side, lockable 7/16 " UNF
B Connection discharge side, not lockable 1/8 " NPTF
B1 Connection discharge side, lockable 7/16 " UNF
C Connection oil pressure safety switch OIL 1/8 " NPTF
D Connection oil pressure safety switch LP 7/16 " UNF
D1 Connection oil return from oil separator 1/4 " NPTF
F Oil drain M 12 x 1.5
H Oil charge plug 1/4 " NPTF
J Connection oil sump heater 3/8 " NPTF
K Sight glass 3 x M 6
L Connection thermal protection thermostat 1/8 " NPTF
M Oil strainer M 12 x 1.5
O Connection oil level regulator 3 x M 6
ÖV Connection oil service valve 1/4 " NPTF
P Connection oil differential pressure sensor M 20 x 1.5
Q Connection oil temperature sensor 1/8" NPTF
W Connection for refrigerant injection 2 x 1/8" NPTF
