Semi Hermetic Screw Type Refrigeration Compressor RC2-410B 380V/420V/50HZ Large screw refrigeration compressor

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCompressor | HANBELL | Refrigerant | R22 |
---|---|---|---|
Voltage | 380V | Type | Screw |
Warranty | One Year | RC Series | More Than 40 Models |
Highlight | R22 Screw Type Refrigeration Compressor,Refrigeration Compressor RC2-410B,380V Semi Hermetic Refrigeration Compressor |

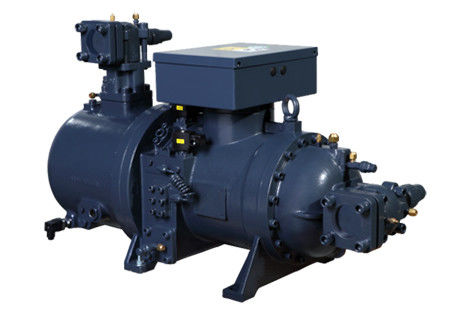

Highlights of RC2 Screw Compressor
Energy-efficient Motor
■ Semi-hermetic, flange-mount design
■ Effective cooling by suction refrigerant gas
■ Part winding, star-delta, DOL starter options available
■ Variable frequency drive (VFD) option available
■ Optimized housepower respond to refrigerant properties
■ Cooling guide vane design on motor casing
■ F-class motor insultation
Economizer (Sub-cooler) Operation
■ Increasing cooling capacity at minimum addtional power
■ Stable middle pressure, easy to control
■ Specially-designed gas flow passageway on slide valve
■ Subcooling works also works at partial load
High-efficiency Screw Rotor Profile
■ Five-to-six lobes patented rotor profile
■ High displacement, low operation noise
■ Excellent volumetric efficiency and minimum clearance
■ Heat process and heavy-duty design
■ In-house manufacturing technology
■ Precisely machining and quality assurance
Dual Capacity Control
■ Flanged-on solenoid valve, easy on installation
■ Step or Continuous (Stepless) control mechanism
■ High ingress protection
■ Quick loading and unloading to target water temp.
■ Special supply voltage on request
Durable Bearing Structure
■ High-quality radial and axial bearings
■ Anti-reverse rotation design
■ α balance piston against axial thrust
■ Long life cycle and service time
■ Oversized bearings, heavy-duty
Technical Data RC2-A
MODEL | COMPRESSOR | MOTOR | Lubricant charge | WEIGHT | |||||||||
Displacement 60 / 50Hz |
Rated Speed 60 / 50Hz | VI | Cap. Control (%) | Type | Nominal Hp | Starting | Voltage (V) | ||||||
m3/hr | STEP | STEPLESS | 60Hz | 50Hz | 60Hz | 50Hz | L | kg | |||||
RC2-100A | 118/98 | 3550/2950 | 2.2 2.6 3.0 3.5 4.8 |
33, 66, 100 | 33~100 | 3 Phase, 2 Pole, Squirrel Cage, Induction Motor | 23 | 19 | Y-△ PWS DOL |
208 220 230 380 440 460 480 575 |
380 400 415 |
7 | 275 |
RC2-140A | 165/137 | 33, 66, 100 | 33~100 | 32 | 26 | 7 | 280 | ||||||
RC2-180A | 216/180 | 33, 66, 100 | 33~100 | 42 | 35 | 7 | 300 | ||||||
RC2-200A | 233/193 | 25, 50, 75, 100 | 25~100 | 45 | 37 | 8 | 420 | ||||||
RC2-230A | 277/230 | 35, 50, 75, 100 | 35~100 | 53 | 44 | 14 | 540 | ||||||
RC2-260A | 309/257 | 25, 50, 75, 100 | 25~100 | 59 | 49 | 14 | 545 | ||||||
RC2-300A | 352/293 | 25, 50, 75, 100 | 25~100 | 67 | 56 | 16 | 590 | ||||||
RC2-310A | 371/308 | 35, 50, 75, 100 | 35~100 | 71 | 59 | 16 | 575 | ||||||
RC2-340A | 407/339 | 35, 50, 75, 100 | 35~100 | 77 | 64 | 16 | 600 | ||||||
RC2-370A | 440/366 | 35, 50, 75, 100 | 35~100 | 84 | 70 | 16 | 610 | ||||||
RC2-410A | 490/407 | 25, 50, 75, 100 | 25~100 | 93 | 78 | 380 440 460 480 575 |
16 | 730 | |||||
RC2-470A | 567/471 | 25, 50, 75, 100 | 25~100 | 108 | 90 | 18 | 800 | ||||||
RC2-510A | 611/508 | 35, 50, 75, 100 | 35~100 | 117 | 98 | 20 | 760 | ||||||
RC2-550A | 660/549 | 25, 50, 75, 100 | 25~100 | 126 | 105 | 23 | 820 | ||||||
RC2-580A | 702/583 | 35, 50, 75, 100 | 35~100 | 131 | 109 | 20 | 805 | ||||||
RC2-620A | 745/619 | 35, 50, 75, 100 | 35~100 | 137 | 114 | Y-△ DOL |
23 | 850 | |||||
RC2-710A | 858/713 | 35, 50, 75, 100 | 35~100 | 158 | 131 | 28 | 1100 | ||||||
RC2-790A | 952/791 | 30, 50, 75, 100 | 30~100 | 175 | 146 | 28 | 1140 | ||||||
RC2-830A | 993/825 | 30, 50, 75, 100 | 30~100 | 183 | 152 | 28 | 1150 | ||||||
RC2-930A | 1117/929 | 35, 50, 75, 100 | 35~100 | 212 | 176 | 28 | 1180 | ||||||
RC2-1020A | 1223/1017 | 25, 50, 75, 100 | 25~100 | 227 | 189 | 40 | 1500 | ||||||
RC2-1130A | 1350/1122 | 25, 50, 75, 100 | 25~100 | 248 | 206 | 40 | 1520 | ||||||
RC2-1270A | 1521/1268 | 25, 50, 75, 100 | 25~100 | 286 | 238 | 53 | 2100 | ||||||
RC2-1530A | 1847/1539 | 25, 50, 75, 100 | 25~100 | 331 | 275 | 53 | 2200 |
Technical Data RC2-B
MODEL | COMPRESSOR | MOTOR | Lubricant charge | WEIGHT | |||||||||
Displacement 60 / 50Hz |
Rated Speed |
VI | Cap. Control (%) | Type | Nominal Hp | Starting | Voltage (V) | ||||||
m3/hr | 60 / 50Hz | STEP | STEPLESS | 60Hz | 50Hz | 60Hz | 50Hz | L | kg | ||||
RC2-100B | 118/98 | 3550/2950 | 2.2 2.6 3.0 3.5 4.8 |
33, 66, 100 | 33~100 | 3 Phase, 2 Pole, Squirrel Cage, Induction Motor | 38 | 31 | Y-△ PWS DOL |
208 220 230 380 440 460 480 575 |
380 400 415 |
7 | 280 |
RC2-140B | 165/137 | 33, 66, 100 | 33~100 | 50 | 41 | 7 | 285 | ||||||
RC2-180B | 216/180 | 33, 66, 100 | 33~100 | 66 | 55 | 7 | 335 | ||||||
RC2-200B | 233/193 | 25, 50, 75, 100 | 25~100 | 70 | 58 | 8 | 425 | ||||||
RC2-230B | 277/230 | 35, 50, 75, 100 | 35~100 | 81 | 67 | 14 | 555 | ||||||
RC2-260B | 309/257 | 25, 50, 75, 100 | 25~100 | 90 | 75 | 14 | 560 | ||||||
RC2-300B | 352/293 | 25, 50, 75, 100 | 25~100 | 107 | 89 | 16 | 600 | ||||||
RC2-310B | 371/308 | 35, 50, 75, 100 | 35~100 | 110 | 91 | 16 | 580 | ||||||
RC2-340B | 407/339 | 35, 50, 75, 100 | 35~100 | 121 | 101 | 16 | 620 | ||||||
RC2-370B | 440/366 | 35, 50, 75, 100 | 35~100 | 130 | 108 | 16 | 640 | ||||||
RC2-410B | 490/407 | 25, 50, 75, 100 | 25~100 | 146 | 121 | 380 440 460 480 575 |
16 | 740 | |||||
RC2-470B | 567/471 | 25, 50, 75, 100 | 25~100 | 170 | 141 | 18 | 810 | ||||||
RC2-510B | 611/508 | 35, 50, 75, 100 | 35~100 | 183 | 152 | 20 | 780 | ||||||
RC2-550B | 660/549 | 25, 50, 75, 100 | 25~100 | 195 | 162 | 23 | 850 | ||||||
RC2-580B | 702/583 | 35, 50, 75, 100 | 35~100 | 210 | 175 | 20 | 840 | ||||||
RC2-620B | 745/619 | 35, 50, 75, 100 | 35~100 | 220 | 183 | Y-△ DOL |
23 | 880 | |||||
RC2-710B | 858/713 | 35, 50, 75, 100 | 35~100 | 250 | 208 | 28 | 1100 | ||||||
RC2-790B | 952/791 | 30, 50, 75, 100 | 30~100 | 276 | 230 | 28 | 1180 | ||||||
RC2-830B | 993/825 | 30, 50, 75, 100 | 30~100 | 290 | 234 | 28 | 1215 | ||||||
RC2-930B | 1117/929 | 35, 50, 75, 100 | 35~100 | 334 | 278 | 28 | 1240 | ||||||
RC2-1020B | 1223/1017 | 25, 50, 75, 100 | 25~100 | 357 | 297 | 40 | 1540 | ||||||
RC2-1130B | 1350/1122 | 25, 50, 75, 100 | 25~100 | 393 | 327 | 40 | 1560 | ||||||
RC2-1270B | 1521/1268 | 25, 50, 75, 100 | 25~100 | 471 | 392 | 53 | 2200 | ||||||
RC2-1530B | 1847/1539 | 25, 50, 75, 100 | 25~100 | 534 | 443 | 53 | 2300 |
MODEL | Dimensions Unit: mm | |||||||||||||||||||||||||||||||||||||||||
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | ||||||||||||||||||||||
RC2-100 | 213 | 196 | 196 | 75 | 70 | 61 | 400 | 101 | 57 | 53 | 416.5 | 300 | 186.5 | 205 | 249 | 260 | 548.5 | 196 | 156 | 86 | 135 | |||||||||||||||||||||
RC2-140 | 213 | 196 | 196 | 75 | 70 | 61 | 400 | 101 | 57 | 53 | 416.5 | 300 | 186.5 | 205 | 249 | 260 | 548.5 | 196 | 156 | 86 | 135 | |||||||||||||||||||||
RC2-180 | 283 | 196 | 196 | 75 | 81 | 68.5 | 410 | 101 | 57 | 53 | 486.5 | 386 | 196 | 205 | 239 | 362 | 548.5 | 196 | 156 | 95 | 123 |
MODEL | Dimensions Unit: mm | |||||||||||||||||||||||||||||||||||||||||
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | ||||||||||||||||||
RC2-710 | 1898.5 /1968.5 |
560 | 275 | 466 | 130 | 262.5 | 514.5 /584.5 |
161 | 822.5 | 353 | 690 /760 |
617 | 131.5 | 103 | 105 | 325 | 263 | 215.5 | 124 | 350 42 | 6 | 701 | 270 | 230 | 269 | |||||||||||||||||
RC2-790 | 1963.5 /2033.5 |
560 | 275 | 466 | 130 | 262.5 | 514.5 /584.5 |
161 | 822.5 | 418 | 690 /760 |
617 | 131.5 | 103 | 105 | 325 | 263 | 215.5 | 124 | 350 42 | 6 | 701 | 270 | 230 | 230 | |||||||||||||||||
RC2-830 | 1963.5 /2033.5 |
560 | 275 | 466 | 130 | 262.5 | 514.5 /584.5 |
161 | 822.5 | 418 | 690 /760 |
617 | 131.5 | 103 | 105 | 325 | 263 | 215.5 | 124 | 350 42 | 6 | 701 | 270 | 230 | 230 | |||||||||||||||||
RC2-930 | 2033.5 /2087.5 |
560 | 275 | 466 | 130 | 262.5 | 584.5 /638.5 |
161 | 822.5 | 418 | 760 /814 |
617 | 131.5 | 103 | 105 | 325 | 263 | 215.5 | 124 | 350 42 | 6 | 701 | 270 | 230 | 230 |
M OD EL | D imens ions Unit: mm | |||||||||||||||||||||||||||||||
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | ||||||||||||
RC2-200 | 345 | 229 | 378 | 75 | 82 | 69 | 447 | 101 | 57 | 53 | 536 | 228 | 341 /386 |
225 | 245 | 362 | 592 | 225 | 225 | 95 | 196 | |||||||||||
RC2-230 | 365 | 250 | 405 | 86 | 97 | 85 | 502 | 106 | 67 | 61 | 567 | 251 | 399 | 257 | 289 | 391 | 624 | 240 | 240 | 107 | 225 | |||||||||||
RC2-260 | 365 | 250 | 405 | 86 | 97 | 85 | 502 | 106 | 67 | 61 | 567 | 251 | 399 | 257 | 289 | 391 | 624 | 240 | 240 | 107 | 225 | |||||||||||
RC2-300 | 408 | 250 | 405 | 86 | 97 | 85 | 502 | 106 | 67 | 61 | 610 | 285 | 399 /444 |
257 | 289 | 391 | 624 | 240 | 240 | 107 | 229 | |||||||||||
RC2-310 | 408 | 250 | 405 | 86 | 97 | 85 | 502 | 106 | 67 | 61 | 610 | 251 | 444 | 257 | 289 | 391 | 624 | 240 | 240 | 107 | 225 | |||||||||||
RC2-340 | 408 | 250 | 405 | 95 | 103 | 105 | 502 | 121 | 81 | 69 | 610 | 285 | 447 /492 |
257 | 310 | 391 | 624 | 240 | 240 | 130 | 228 | |||||||||||
RC2-370 | 408 | 250 | 405 | 95 | 103 | 105 | 502 | 121 | 81 | 69 | 610 | 285 | 447 /492 |
257 | 310 | 391 | 624 | 240 | 240 | 130 | 228 | |||||||||||
RC2-410 | 392 | 275 | 453 | 95 | 103 | 105 | 553 | 120 | 81 | 69 | 613 | 288 | 433 | 275 | 315 | 413 | 655 | 270 | 230 | 130 | 255 | |||||||||||
RC2-470 | 440 | 275 | 453 | 95 | 103 | 105 | 553 | 120 | 81 | 69 | 661 | 320 | 433 /478 |
275 | 315 | 413 | 655 | 270 | 230 | 130 | 255 | |||||||||||
RC2-510 | 465 | 275 | 453 | 107 | 103 | 105 | 560 | 131.5 | 96.5 | 88 | 696 | 288 | 484 | 275 | 331 | 413 | 655 | 270 | 230 | 130 | 254 | |||||||||||
RC2-550 | 484 | 275 | 451.5 | 107 | 103 | 105 | 572 | 131.5 | 96.5 | 88 | 720 | 320 | 580 /536 |
280 | 331 | 411.5 | 659 | 270 | 230 | 130 | 112 | |||||||||||
RC2-580 | 465 | 275 | 453 | 107 | 103 | 105 | 560 | 131.5 | 96.5 | 88 | 696 | 320 | 484 | 275 | 331 | 413 | 655 | 270 | 230 | 130 | 255 | |||||||||||
RC2-620 | 484 | 275 | 451.5 | 107 | 220 | 124 | 572 | 131.5 | 96.5 | 88 | 720 | 320 | 525 | 280 | 331 | 411.5 | 659 | 270 | 230 | 161 | 112 |
