KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit

Fruit Preservation Refrigeration Condensing Unit

Scroll Refrigeration Condensing Unit

Silent Refrigeration Condensing Unit

Place of Origin:

CHINA

Brand Name:

KUB

Certification:

CE

Model Number:

KBVA-130*2L ZFI59KQE

Contact Us
Request A Quote
Product Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG):
1000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Compressor
Place Of Origin:
Shanghai, China
Warranty:
1 Year
Condition:
New
Type:
Condensing Unit
Brand Name:
KUB
After-sales Service Provided:
Online Support
Refrigerant:
R404a
Compressor:
Hermetic Compressor
Product Name:
Cold Room Condensing Unit
Voltage:
380V 50HZ
Color:
Black
Controller:
Adjustable
Condenser Type:
Air Cooler
Key Words:
Refrigeration Unit
Usage:
Refrigeration Part
Highlight:

Fruit Preservation Refrigeration Condensing Unit

,

Scroll Refrigeration Condensing Unit

,

Silent Refrigeration Condensing Unit

Payment & Shipping Terms
Minimum Order Quantity
1 (pieces)
Price
1 set $6,200.00 - $8,600.00
Packaging Details
The wooden packaging
Delivery Time
5-7 work
Supply Ability
1000 Set/Sets per Year
Product Description

Product descriptions from the supplier







Overview

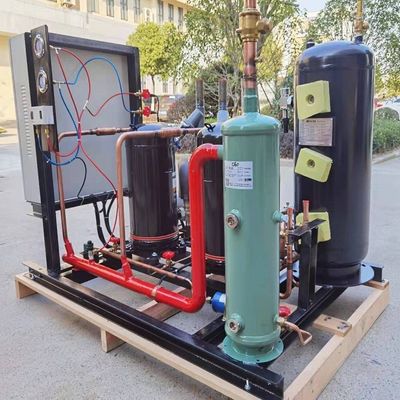

Cold room cryogenic unit scroll compressor parallel unit refrigeration unit

Below is a list of the configurations of one of our KUB units for this series

And our standard configuration instructions for this parallel unit: (The list and instructions are for informational purposes only, in practice we will have senior engineers tailor the appropriate configuration for you)

ZFI59KQE x2 parallel unit
    quantity
Base frame (by figure) 1600*1000*1500 1
compressor ZFI59KQE 2
Plate heat exchanger   2
module   2
Electronic expansion valve   2
Oil heater   2
One-way valve 22 2
Oil storage oil separator 35 interface 1
Oil ball valve 35 1
Exhaust mains   1
Liquid reservoir (Kub) vertical   1
relief valve   1
Import and export valves   2
Filter (domestic) SR487 1
Filter (domestic) D48   1
Respirator () 3 points 1
1/4 charge valve   1
Supply main tube ball valve 16 2
2 Parallel gas parting suction concentrator   1
Back to the balloon valve 42 2
Return to the main tube   1
Oil filter FOK-03   1
Electronic oil balancer 580   2
3 Break-up valve   1
2 Break-up valve   2
The control section
Pressure controller (Danfoss KP15) 1
High-pressure meter (domestic)   1
Low-pressure meter (domestic)   1
Tableboard (by figure)   1
Hand valve 2 points   2
Pressure transmitter (4-20MA)   1
Pressure transmitter (4-20MA)   1
Parallel unit control box   1
Controller (New Asian PLC-Kunlun Tongtai touch screen) 1
Schneider contactor   1


Note: For evaporation temperatures -15 to 25 ℃, refrigerant:R404A,power supply:380V50HZ

The cooling capacity and power calibration is based on a condensation temperature of 40℃ ,Suitable for evaporative cooling







-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.

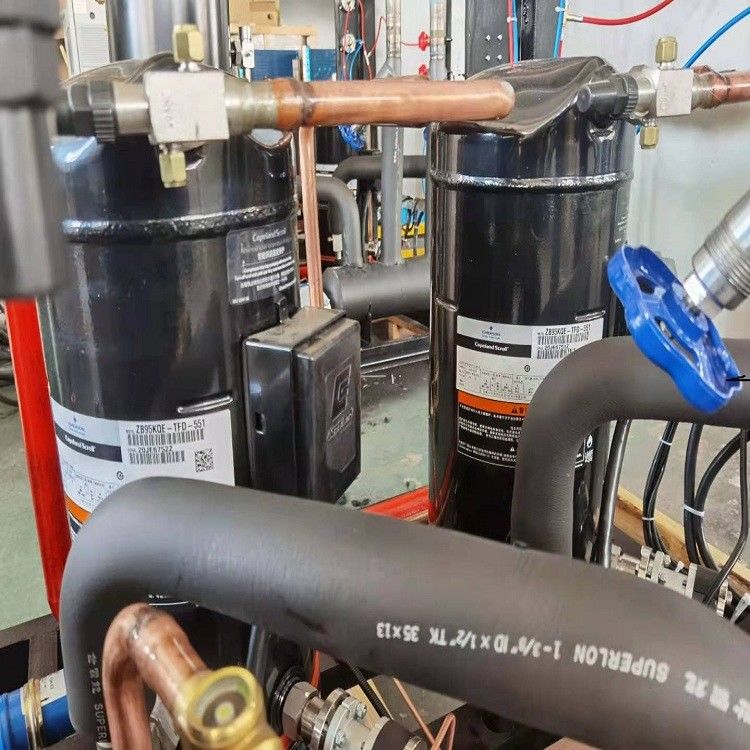

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 2





Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.

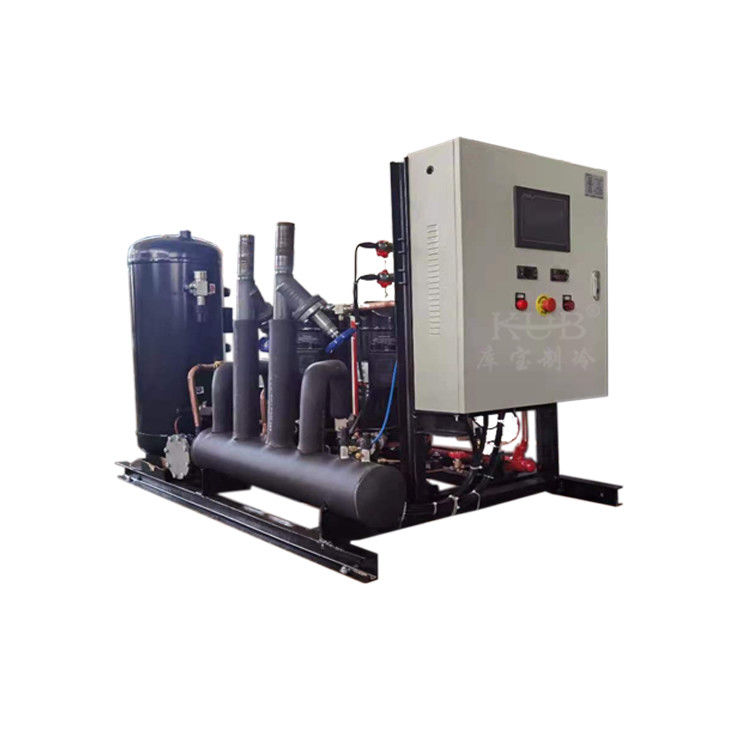

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 3KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 4

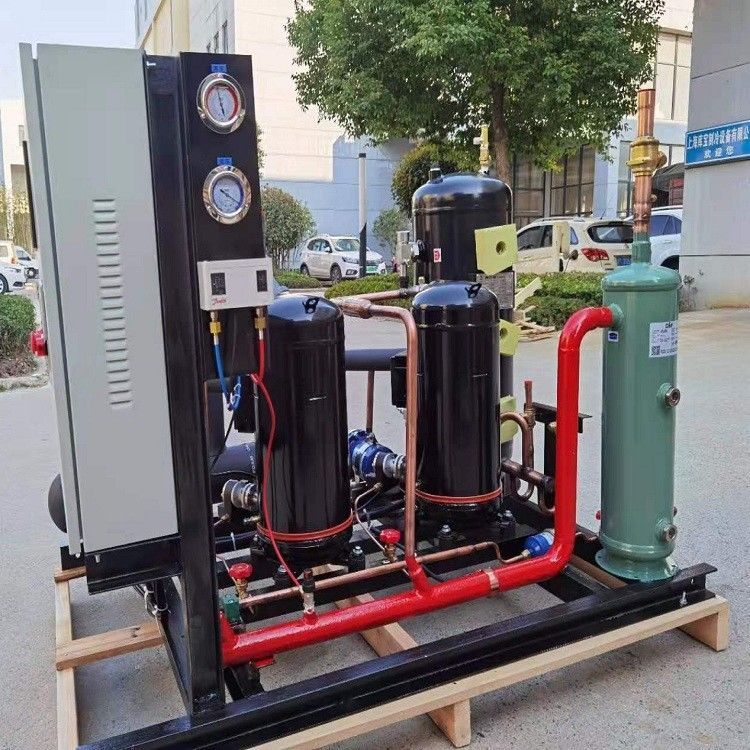

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 5

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 6

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 7

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 8

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 9

KBVA-130*2L ZFI59KQE Cold room cryogenic unit scroll compressor parallel unit refrigeration unit 10
