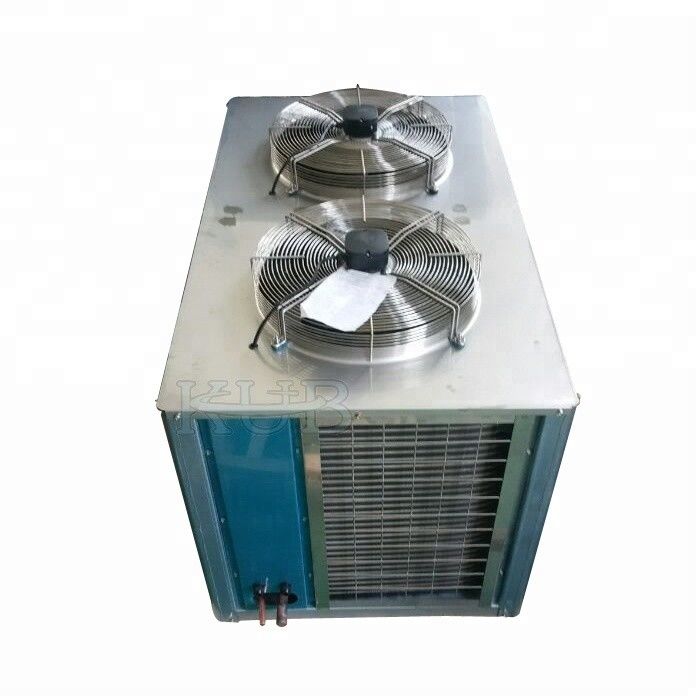

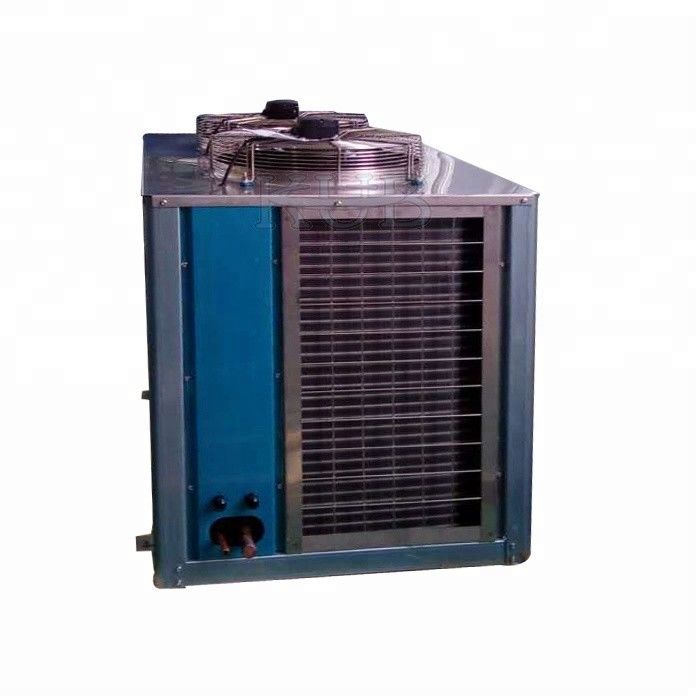

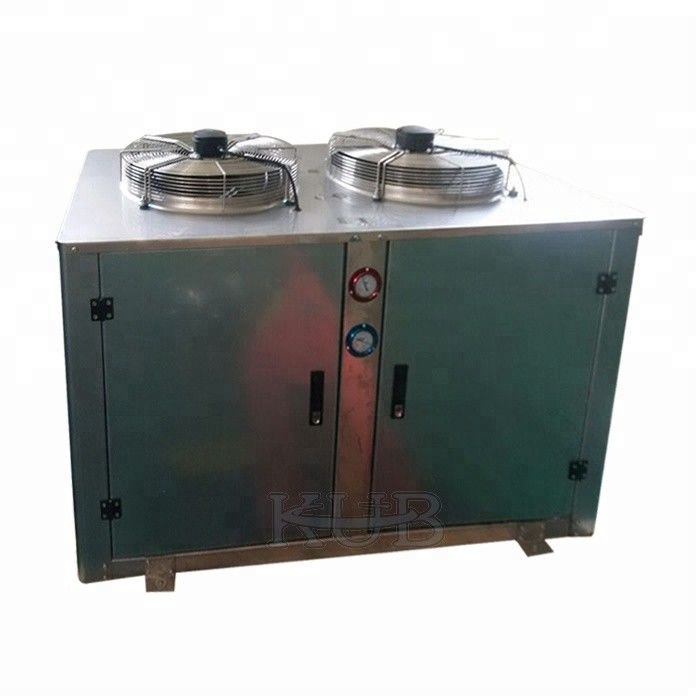

10hp Freezer Condenser Unit , Outside Condenser Unit U Type Corrosion Resistant For Food Processing

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number 4PES-12Y
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 200units month
Product Details
Type Compressor After-sales Service Provided Overseas Third-party Support Available
High Light

commercial refrigerator condenser

,

fridge condensing unit

Leave a Message
Product Description

10HP 10 ton r404a 4PES-12Y U type Corrosion-resistant stainless steel refrigeration unit for food processing

Product Description



semi-hermetic Reciprocating compressor for Medium and low temperature R404a  Nominal data



Application limits



R134a, R407A, R407C



R407F, R404A/R507A



R22



has always paid special attention to the efficiency of compressors and a few years ago introduced the

ECOLINE series, which has been optimized especially for R134a.R134a offers very favorable characteristics especially for medium temperature and heat pump applications.



This gives the ECOLINE compressors, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. Studies have demonstrated that for supermarket applications a hybrid version with R134a for medium temperature application in cascade with CO2 low temperature application offers a particularly advantageous ecological efficiency (optimum of life cycle costs and TEWI) as well as a low energy demand.





HP Compressor

Condenser

Surface

M2

Voltage Cooling capacity(W) Axial Fans
(V-Ph-Hz) Evaporating temperature(°C)
-35 -30 -25 -20 -15 N°x Diameter
2 2FES-2Y 16 380-3-50 1000 1420 1910 2480 3140 1 x 350
2 2EES-2Y 16 380-3-50 1280 1820 2450 3190 4050 1 x 400
2 2DES-2Y 16 380-3-50 1600 2240 2990 3870 4890 1 x 400
3 2CES-3Y 24 380-3-50 2110 2890 3810 4880 6120 2 x 350
3 4FES-3Y 24 380-3-50 2380 3170 4120 5250 6580 2 x 350
4 4EES-4Y 32 380-3-50 3010 4020 5240 6690 8390 2 x 400
5 4DES-5Y 40 380-3-50 3600 4800 6260 8000 10040 2 x 400
6 4CES-6Y 48 380-3-50 4220 5690 7480 9610 12120 2 x 400
8 4TES-9Y 64 380-3-50 4840 6740 9030 11780 15040 2 x 450
10 4PES-12Y 80 380-3-50 5040 7200 9830 13010 16790 2 x 450
12 4NES-14Y 96 380-3-50 6580 9140 12240 15950 20350 4 x 400
15 4HE-18Y 120 380-3-50 10070 13570 17720 22600 28350 4 x 400
20 4GE-23Y 160 380-3-50 12320 16290 21000 26550 33050 4 x 400
25 6HE-28Y 200 380-3-50 14800 19970 26100 33300 41750 4 x 400
30 6GE-34Y 240 380-3-50 18920 24850 31800 39950 49400 2 x 600
40 6FE-44Y 320 380-3-50 21900 29250 37750 47650 59100 2 x 600



10HP.pngU type condensing unit.jpg





-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.





Hermetic FNV Type R407C 48KW Air Cooled Condenser 2



Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
