403DH-64C2 Hitachi Scroll refrigeration air conditioner Compressor

Place of Origin China (Mainland)
Brand Name Hitachi
Certification CE Certification
Model Number 403DH-64C2
Minimum Order Quantity 32 Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 200units month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Scroll
Configuration Stationary Power Source AC Power
Lubrication Style Oil-less Mute Yes
Voltage 380V Dimension(L*W*H) 239*239*418mm
Weight 30KG Warranty One Year
After-sales Service Provided Overseas Third-party Support Available Product Name 4hp Air Compressor
Color Black Cooling Method Air Cooled
Application General Industry
Highlight

cool room refrigeration compressor

,

refrigeration compressor for cold room

Leave a Message
Product Description

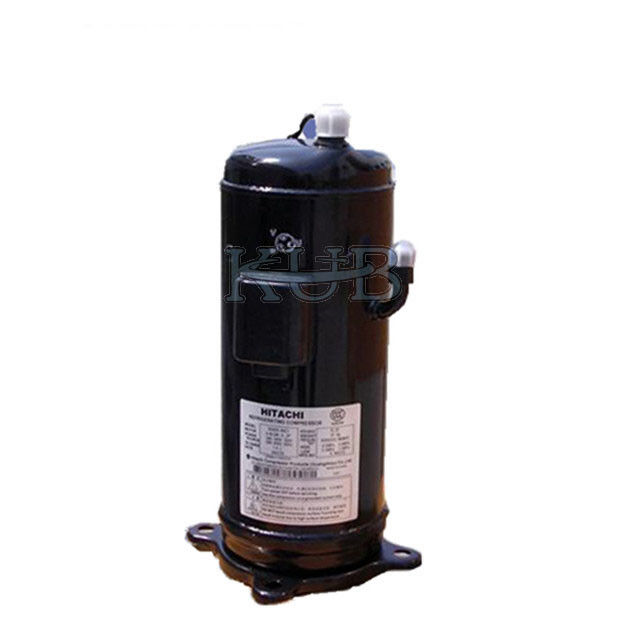

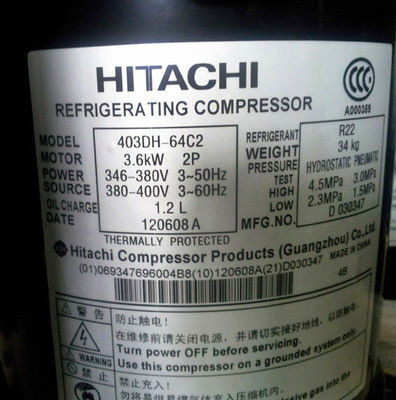

403DH-64C2 Hitachi Scroll refrigeration air conditioner Compressor

403DH-64C2 Hitachi Scroll refrigeration air conditioner Compressor 0

Hitachi scroll compressor

Descriptions:

Phase 1 or Phase 3 :3
Output Capacity (kW) 3.0
Power Source 415V/50Hz
Displacement (m3/h) 11.09
Oil Charge (L) 1.5
Cooling Capacity (W) 1.5

Amperage 6.5
EER (kcal/W.h) 2.75
Sound Level (db(A)) <63
Refrigerant R-22
Running Voltage (V) 311~418
Weight (kg) 35





Following model we could supply:



Model Cooling Capacity Electricity Refrigernt COP
BTU/h WATTS
353DH-56C2 35460 10400 380V/3phase/50hz R22 3.25
403DH-64C2 40240 11800 380V/3phase/50hz R22 3.25
403DH-64D2 40240 11800 380~415V/3phase/50HZ R22 3.4
403DHV-64D1     inventer R22
453DH-75C2 46040 13500 380V/3phase/50hz R22 3.4
453DH-75D2 46040 13500 380~415V/3phase/50HZ R22 3.4
503DH-80C2 50800 14900 380V/3phase/50hz R22 3.4
503DH-80D2 50800 14900 380~415V/3phase/50HZ R22 3.4
503DHV-80D1     inventer R22
603DH-90C2 57290 16800 380V/3phase/50hz R22 3.3
603DH-90D2 57290 16800 380~415V/3phase/50HZ R22 3.3
603DH-95C2 60020 17600 380V/3phase/50hz R22 3.3
603DH-95D2 60020 17600 380~415V/3phase/50HZ R22 3.3



For compressor,We supply following brands.



1.Rotary compressor:Panasonic
2.Scroll:Copeland, performer,hitachi,Daikin,Panasonic
3.Piston:Maneurop MT,NTZ,MTZ series.
4.Freezer compressor:Tecumseh,Ampera,embraco,Donper,secop


-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3
