Sanyo 4.5hp r407c C-SBN373H8A scroll hermetic New Condition and 380V standard cold room Panasonic compressor price
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Refrigeration Compressor | Application | Refrigeration Parts |
|---|---|---|---|
| Material | Aluminum | Color | Black |
| High Light | refrigeration compressor for cold room,screw type compressor |
||
Product Description

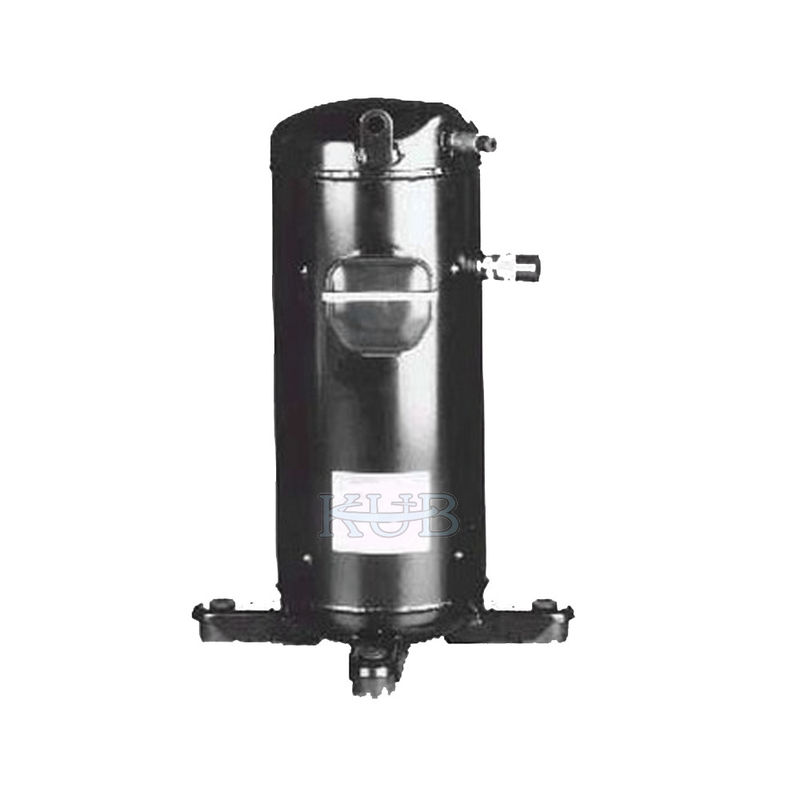

C-SCN373H8A Panasonic New Condition and 380V Voltage standard cold room 5 ton ac compressor price
We are constantly developing the new products to meet the market demands. SANYO scroll compressors are used in air conditioning, heat pump and commercial refrigeration including high, medium and low temperature applications.
| Item | Scroll compressor |
| Model | C-SBN373H8A |
| Brand | famous |
| Power | 380-415V/3/50Hz |
| Displacement | 83.2cm3/rev |
| Capacity | 49.5kBtu/h |
| COP | 2.93W/W |
| Package | 24pcs/pallet |
| Certification | |
| Application | Air conditioning, HVAC system |
●Features of Panasonic Scroll Compressors
●Panasonic Scroll Compressor Line-up
|

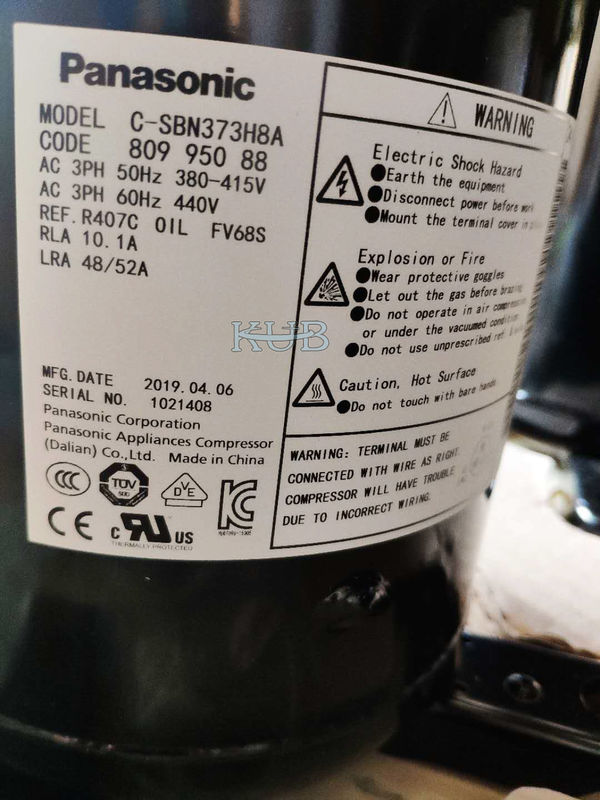

| Model | C-SBN373H8A | Gas | R407C |
| Brand | Panasonic | Original | Made in china |
|
Compressors Specification Sheet
|
||
|
Model No
|
C-SBN373H8A | |
|
Application
|
||
|
Evaporating Temp Range
|
(℃)
|
-15~12 |
|
Refrigerant
|
R407C | |
|
Compressor Cooling
|
Natural Cooling | |
|
Rated Performance
|
||
|
Capacity
|
(W)
|
14500 |
|
Input
|
(W)
|
4950 |
|
Current
|
(A)
|
8.5 |
|
Sound Pressure Level(1m)
|
(dB(A))
|
62max |
|
Rating Conditions
|
||
|
Power Source
|
3ph,50Hz,380-415V | |
|
Evaporating Temp
|
(℃)
|
7.2 |
|
Condensing Temp
|
(℃)
|
54.4 |
|
Suction Gas Temp
|
(℃)
|
18.3 |
|
Liquid Temp
|
(℃)
|
46.1 |
|
Ambient Temp
|
(℃)
|
35 |
|
Compressor
|
||
|
Type
|
Hermetic Scroll | |
|
Displacement
|
(cm3/rev)
|
83.2 |
|
Suction Line Connection
|
(Φmm OD)
|
22.23 |
|
Discharge Line Connection
|
(Φmm OD)
|
12.7 |
|
Oil Type
|
FV68S | |
|
Initial Oil Charge
|
(ml)
|
1700 |
|
Mass(Incl.Oil)
|
(kg)
|
38 |
|
Motor
|
||
|
Motor Type
|
3Ph-Induction Motor | |
|
Revolution
|
(min-1)
|
2900 |
|
Voltage Range
|
(V)
|
342~456 |
|
Start Capacitor
|
MFD/V
|
n/a |
|
Run Capacitor
|
MFD/V
|
n/a |
|
RLA
|
(A)
|
10.1 |
|
MCC
|
(A)
|
14.1 |
|
LRA
|
(A)
|
48 |

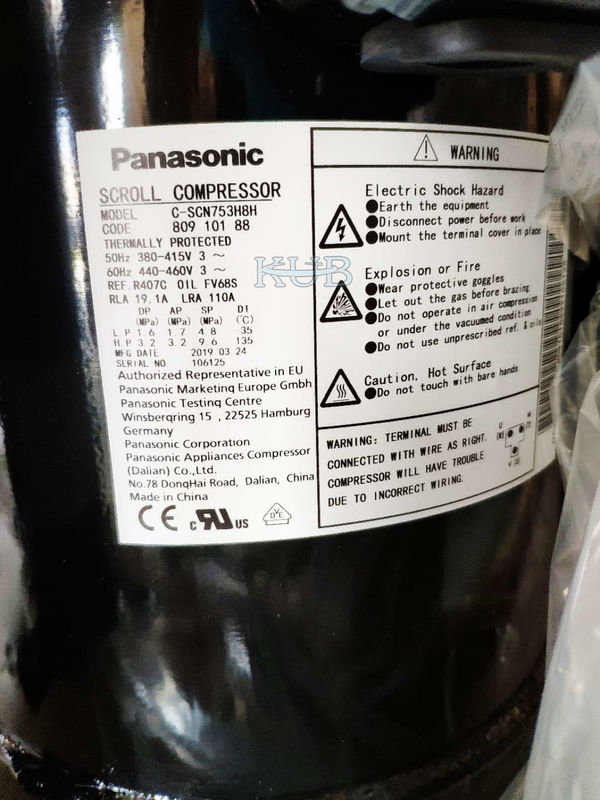

SCN 753H8H
SBN 373HBA
