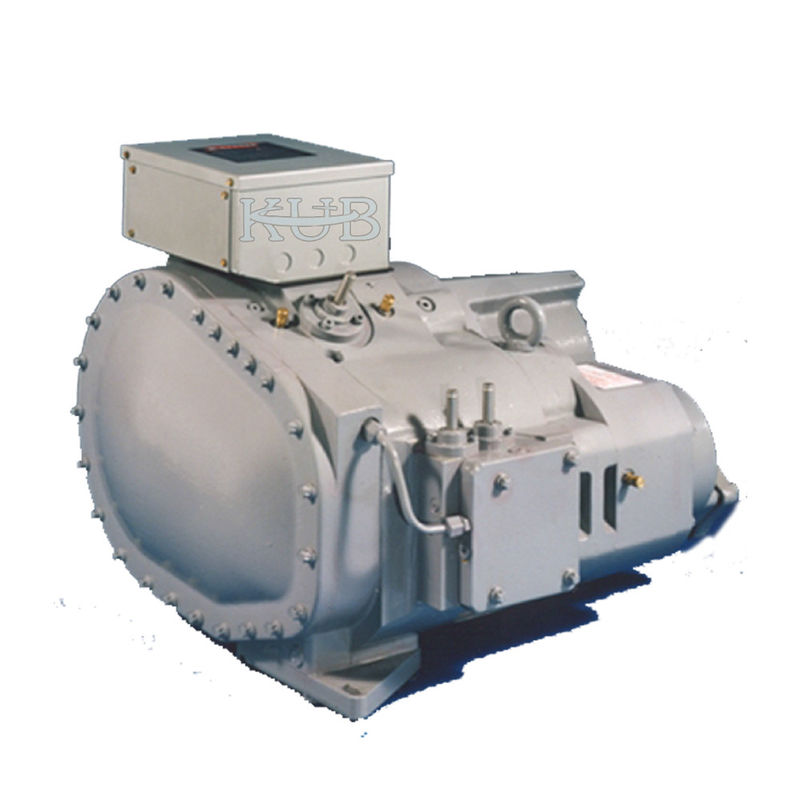

Water Cooled Chiller Ice Plant Compressor Economized Loiw Noise Corrosion Resistance

Place of Origin United States
Brand Name carlyle
Certification CE Certification
Model Number 06NW2300S5NA
Minimum Order Quantity 1 Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition New Power Source AC Power
Voltage 380v/3ph/50hz(or Customized) Warranty One Year
High Light

cool room refrigeration compressor


refrigeration compressor for cold room

Leave a Message
Product Description

New 06NW2300S5NA Carlyle 06N air conditioner Carrier 06NW Screw Compressor for R134a Water Cooled Chiller

The Carlyle 06N GTS104 family of Geared Twin Screw compressors utilize a common platform, 104mm diameter drive rotor. The family includes six displacements from 123 cfm to 300 cfm at a 60Hz drive frequency. Nominal capacities range from 33 to 70 tons with R134a at flooded chiller operating conditions. Optimized models are available for air cooled and water cooled condensers, as well as for economized and non-economized applications.




Technical Parameters



Nominal Capacity of 06N Screw Compressor in R134a System
60Hz cfm Gear Ratio 06NA, Air-Cooled 06NW, Water-Cooled
Non-Economized Economized Non-Economized Economized
tons @50Hz tons @60Hz tons @50Hz tons @60Hz tons @50Hz tons @60Hz tons @50Hz tons @60Hz
123 1.214 N/A 33 N/A 38 N/A 35 N/A 40
146 1.466 33 40 38 46 35 42 40 48
174 1.782 40 49 46 56 42 51 48 59
209 2.145 49 57 56 66 51 60 59 69
250 2.557 57 70 66 81 60 74 69 85
300 3.094 70 N/A 81 N/A 74 N/A 85 N/A



Regular Models of Carlyle 06N Semi-Hermetic Screw Compressor


06NW Water-Cooled Condensing 06NA Air-Cooled Condensing

06NW2300S5EA 06NW2300S5EA-A00 06NA2300S5EA 06NA2300S5EA-A00
06NW2300S5NA 06NW2300S5NA-A00 06NA2300S5NA 06NA2300S5NA-A00
06NW2250S7NA 06NW2250S7NA-A00 06NA2250S7NA 06NA2250S7NA-A00
06NW2250S7EA 06NW2250S7EA-A00 06NA2250S7EA 06NA2250S7EA-A00
06NW2209S7NA 06NW2209S7NA-A00 06NA2209S7NA 06NA2209S7NA-A00
06NW2209S7EA 06NW2209S7EA-A00 06NA2209S7EA 06NA2209S7EA-A00
06NW5300S5EA 06NW5300S5EA-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NA 06NW5300S5NA-A00 06NA2174S7NA 06NA2174S7NA-A00
06NW2174S7NA 06NW2174S7NA-A00 06NA2174S7EA 06NA2174S7EA-A00
06NW2174S7EA 06NW2174S7EA-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NA 06NW2146S7NA-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EA 06NW2146S7EA-A00 06NA2123S6NA 06NA2123S6NA-A00
06NW2123S6NA 06NW2123S6NA-A00 06NA2123S6EA 06NA2123S6EA-A00
06NW2300S5EC 06NW2300S5EC-A00 06NA2300S5EC 06NA2300S5EC-A00
06NW2300S5NC 06NW2300S5NC-A00 06NA2300S5NC 06NA2300S5NC-A00
06NW2250S7NC 06NW2250S7NC-A00 06NA2250S7NC 06NA2250S7NC-A00
06NW2250S7EC 06NW2250S7EC-A00 06NA2250S7EC 06NA2250S7EC-A00
06NW2209S7NC 06NW2209S7NC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW2209S7EC 06NW2209S7EC-A00 06NA2209S7EC 06NA2209S7EC-A00
06NW5300S5EC 06NW5300S5EC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NC 06NW5300S5NC-A00 06NA2174S7NC 06NA2174S7NC-A00
06NW2174S7NC 06NW2174S7NC-A00 06NA2174S7EC 06NA2174S7EC-A00
06NW2174S7EC 06NW2174S7EC-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NC 06NW2146S7NC-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EC 06NW2146S7EA-A00 06NA2123S6NC 06NA2123S6NC-A00
06NW2123S6NC 06NW2123S6NC-A00 06NA2123S6EC 06NA2123S6EC-A00
