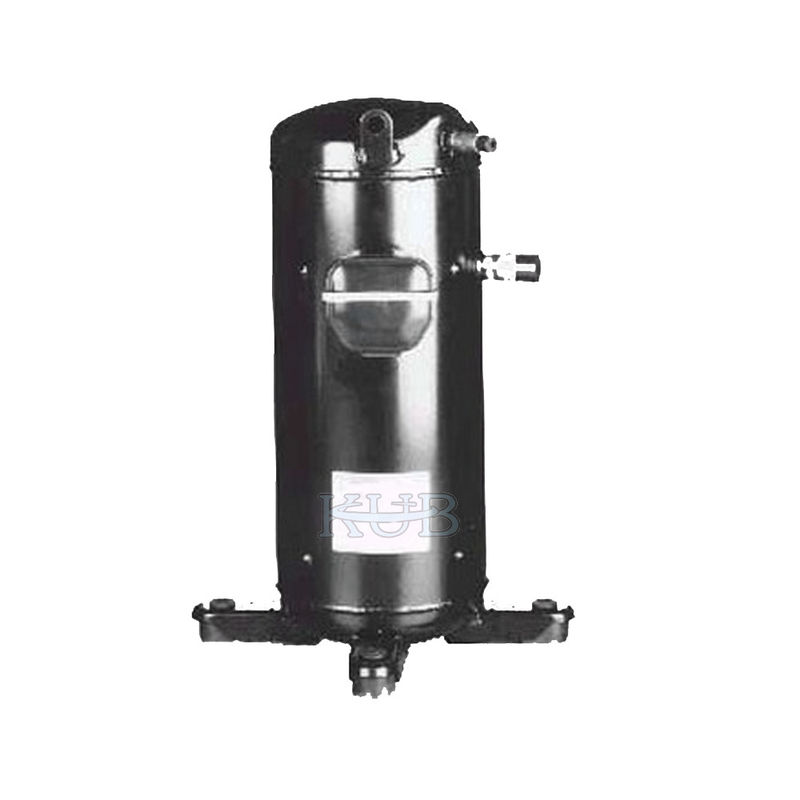

C-SB373H8A 380V Panasonic Sanyo Refrigeration Scroll Compressor For Cold Room Standard 5 Ton 5hp Low Noise
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Source | AC Power |
|---|---|---|---|
| Lubrication Style | Oil-less | Mute | Yes |
| Voltage | 380V | Warranty | One Year |
| After-sales Service Provided | Overseas Third-party Support Available | Cooling Method | Air Cooling |
| Application | Outdoors Works | Motor Power | 5HP |
| Name | Scroll Compressor | Brand | Sanyo |
| Noise | 56-65dB | Usage | Cooling Unit |
| High Light | cool room refrigeration compressor,refrigeration compressor for cold room |
||
Product Description
C-SB373H8A New Condition and 380V Voltage standard cold room 5 ton ac compressor price
|
Sanyo Compressors Specification Sheet
|
||
|
Model No
|
C-SB373H8A | |
|
|
||
|
Application
|
||
|
Evaporating Temp Range
|
(℃)
|
-15~12 |
|
Refrigerant
|
R22 | |
|
Compressor Cooling
|
Natural Cooling | |
|
|
||
|
Rated Performance
|
||
|
Capacity
|
(W)
|
14500 |
|
Input
|
(W)
|
4540 |
|
Current
|
(A)
|
7.9 |
|
Sound Pressure Level(1m)
|
(dB(A))
|
62max |
|
Rating Conditions
|
||
|
Power Source
|
3ph,50Hz,380-415V | |
|
Evaporating Temp
|
(℃)
|
7.2 |
|
Condensing Temp
|
(℃)
|
54.4 |
|
Suction Gas Temp
|
(℃)
|
18.3 |
|
Liquid Temp
|
(℃)
|
46.1 |
|
Ambient Temp
|
(℃)
|
35 |
|
Compressor
|
||
|
Type
|
Hermetic Scroll | |
|
Displacement
|
(cm3/rev)
|
83.2 |
|
Suction Line Connection
|
(Φmm OD)
|
22.23 |
|
Discharge Line Connection
|
(Φmm OD)
|
12.7 |
|
Oil Type
|
L-DRC/B56 | |
|
Initial Oil Charge
|
(ml)
|
1700 |
|
Mass(Incl.Oil)
|
(kg)
|
38 |
|
Motor
|
||
|
Motor Type
|
3Ph-Induction Motor | |
|
Revolution
|
(min-1)
|
2900 |
|
Voltage Range
|
(V)
|
342~456 |
|
Start Capacitor
|
MFD/V
|
n/a |
|
Run Capacitor
|
MFD/V
|
n/a |
|
RLA
|
(A)
|
9.6 |
|
MCC
|
(A)
|
13.5 |
|
LRA
|
(A)
|
52 |
| Model | C-SB373H8A | Gas | R22 |
| Brand | Panasonic | Original | Made in china |
