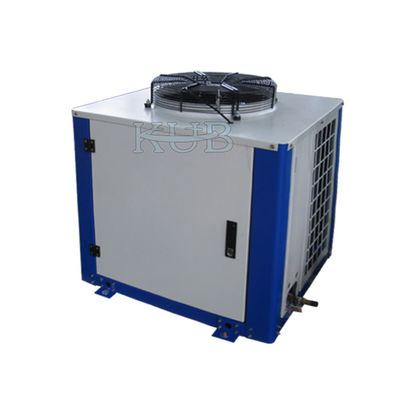

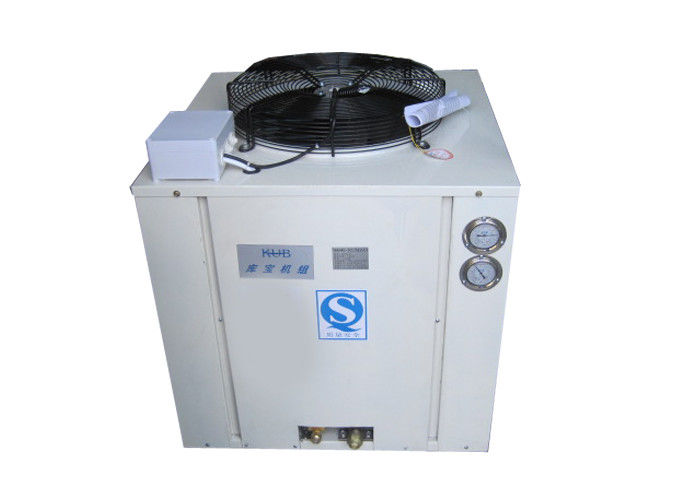

5hp 3.75kw 5 Ton Refrigeration Condensing Unit Bfs51 Ca0500 For Hotels Restaurants

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number FUBZ-005/L
Minimum Order Quantity 10 Unit/Unit
Price negotiable
Product Details
Type Condensing Unit Product Name Cold Room Refrigeration Compressor Unit
Refrigerant R404A/R507C Color Blue
Voltage 380v-420v /3 Ph / 50Hz Cooling Capacity 2.2~14.46kw
High Light

commercial refrigerator condenser

,

fridge condensing unit

Leave a Message
Product Description

BFS51 CA0500 5HP 3.75KW 5 ton Semi-hermetic compressor freezer outdoor refrigeration condensing unit



Descrition

1,Compact structure and good apperance;

2, Scientific design with steady air flow;

3, Convenient design for maintain---front board can be easily taken down;



4, Rational performance design of high energy efficiency;



Model Reservoir Dimensions Installation size piper weight
A B C E F in out
L mm mm mm mm mm inch inch Kg
FUBZ-005/L 8 990 753 857 950 530 1-1/8 1/2 113
FUBZ-008/L 10 1240 803 852 1200 580 1-3/8 5/8 195
FUBZ-010/L 10 1500 854 867 1460 630 1-3/8 5/8 210
FUBZ-012/L 12 1500 903 875 1460 680 1-3/8 5/8 215
FUBZ-015/L 16 1500 953 867 1460 730 1-5/8 3/4 261
FUBZ-020/L 20 1606 1003 1004 1566 780 1-3/8 3/4 280
FUBZ-025/L 25 1704 1053 1108 1664 830 2-1/8 3/4 326
FUBZ-030/L 30 1704 1053 1108 1664 830 2-1/8 7/8 344



This box U type structure middle and high temperature condensing unit with semi-hermetic series compressor is compact and with good looking. It is applicable to cold storage rooms, cold display cases and ice producers etc. The applicable temperature ranges are: -5℃~-15℃/R404A/R507C. They can be used in hotels, restaurants, medicines, agricultureral, chemicals industries and all other place where cold storage is needed.



Quick Detail



Condensing Unit built by KUB semi-hermetic

compressor with crankcase heater, mounted on a base

plate, receiver with outlet isolation. Condensing coil, fan assembly

with protective guard, Compressor mounts, discharge, liquid and

suction line, provision for electrical components, protective charge

includes the following:

- 1 x Semi-Hermetic compressor,

- 1 x Control panel mounted inclusive of all necessary electrical

components and electronic control

- 1 x Gauges - High & Low Pressure

- 1 x High and Low Pressure Switch

- 1 x Liquid Line Filter, Sight Glass, Moisture Indicator

- 1 x Oil Separator

- 1 x Shut Off Valve

- 1 x Solenoid Valve

- 1 x Suction Accumulator

- 1 x Vibration Eliminator

- 1 x Check Valve

- 1 x Liquid Subcooler

- 1 x Terminal Junction Box




.png




-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.





Hermetic FNV Type R407C 48KW Air Cooled Condenser 2



Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
