Bfca-0800 8 Hp 6Kw Refrigeration Condensing Unit U Type Semi - Hermetic Compressor for coldroom
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compressor Model | BFCA-0800 | Compressor Type | Semi-hermetic Compressor |
|---|---|---|---|
| Capacity | 6KW | Refrigerant | R404A/R507C |
| Power Supply | 380V/3P/50HZ | Fan | 2 |
| High Light | commercial refrigerator condenser,fridge condensing unit |
||
Product Description

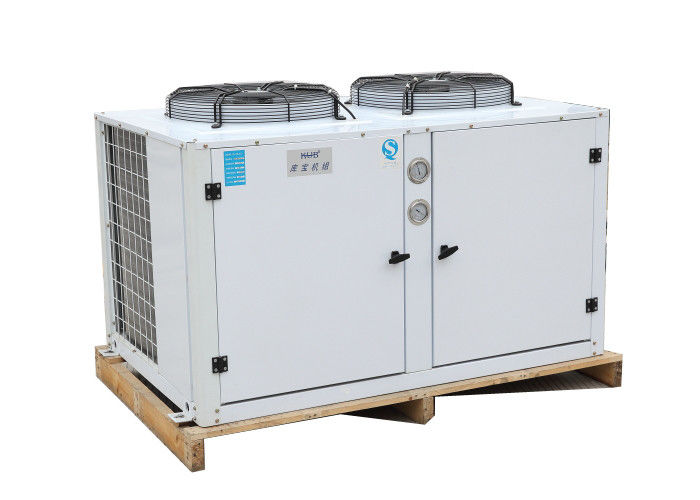

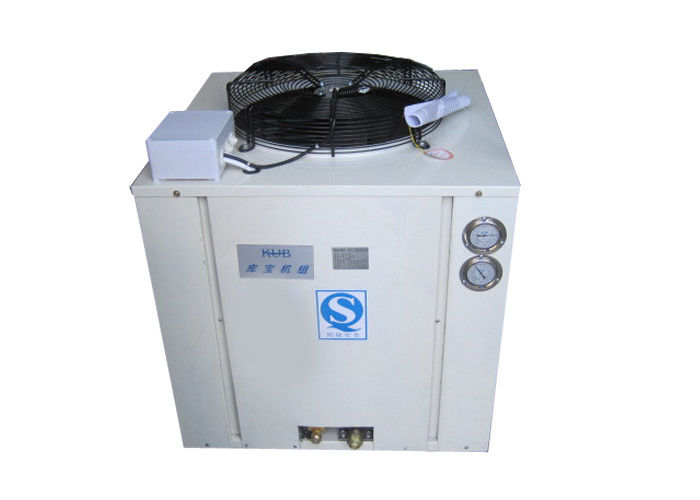

BFCA-0800 8HP 6KW Cheap U type Refrigeration Condensing Unit for Cold room
Descrition
a, Compact structure and good apperance;
b, Scientific design with steady air flow;
c, Convenient design for maintain---front board can be easily taken down;
d, Rational performance design of high energy efficiency;
| Model | Reservoir | Dimensions | Installation size | piper | weight | ||||
| A | B | C | E | F | in | out | |||
| L | mm | mm | mm | mm | mm | inch | inch | Kg | |
| FUBZ-005/L | 8 | 990 | 753 | 857 | 950 | 530 | 1-1/8 | 1/2 | 113 |
| FUBZ-008/L | 10 | 1240 | 803 | 852 | 1200 | 580 | 1-3/8 | 5/8 | 195 |
| FUBZ-010/L | 10 | 1500 | 854 | 867 | 1460 | 630 | 1-3/8 | 5/8 | 210 |
| FUBZ-012/L | 12 | 1500 | 903 | 875 | 1460 | 680 | 1-3/8 | 5/8 | 215 |
| FUBZ-015/L | 16 | 1500 | 953 | 867 | 1460 | 730 | 1-5/8 | 3/4 | 261 |
| FUBZ-020/L | 20 | 1606 | 1003 | 1004 | 1566 | 780 | 1-3/8 | 3/4 | 280 |
| FUBZ-025/L | 25 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 3/4 | 326 |
| FUBZ-030/L | 30 | 1704 | 1053 | 1108 | 1664 | 830 | 2-1/8 | 7/8 | 344 |
Features:
1, Compact structure, strong and durable
2, Uses high efficiency air-cooled condenser and realizes high heat exchange; Low power consumption
3, Uses R22, R134A, R404A and R507A as refrigerant
4, Used in medium, low and super low working condition
5, Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration
6, Easy operation: Design of unit almost considers installation of users, site installation only needs simple works and machine can be put in operation
7, Engineering practice conditions, design and assemble all types air-cooled condensing unit
8, Warranty period: 1 year
9. Semi-hermetic compressor / air cooled condensor. U Type condensing unit
Characteristics:
1.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)
2.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
3.Equipped with semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
6.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
