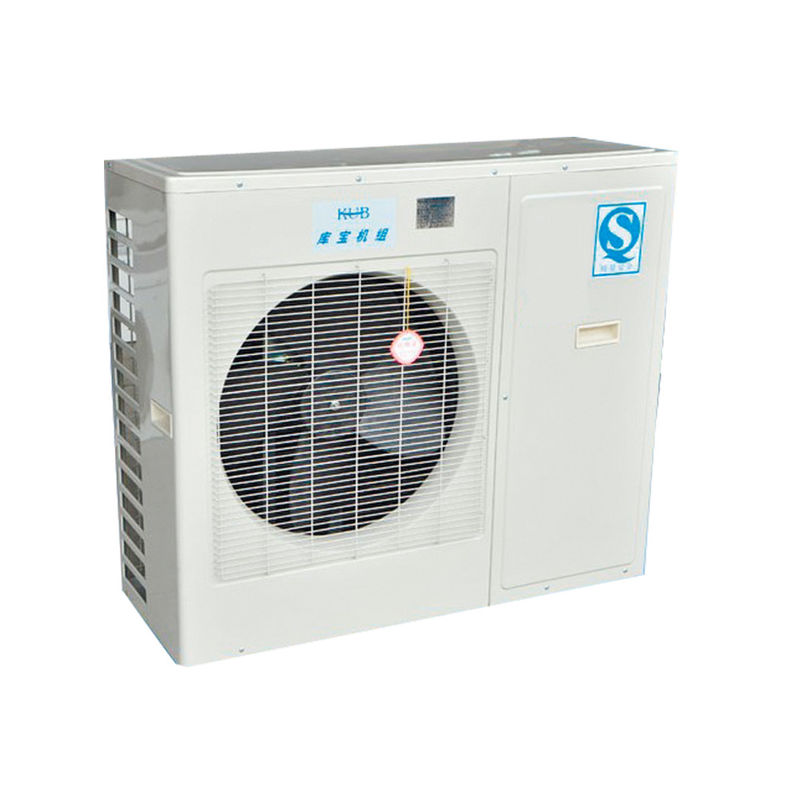

1500w Outdoor Condensing Unit , Outdoor Freezer Units Installed Conveniently Steady Air Flow
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Temperature | -18℃ |
|---|---|---|---|
| Voltage | 380V | Power(W) | 1500W |
| Dimension(L*W*H) | 1020*420*840mm | Weight | 50kg |
| Warranty | One Year | ||
| High Light | cool room condensing unit,fridge condensing unit |
||
Product Description

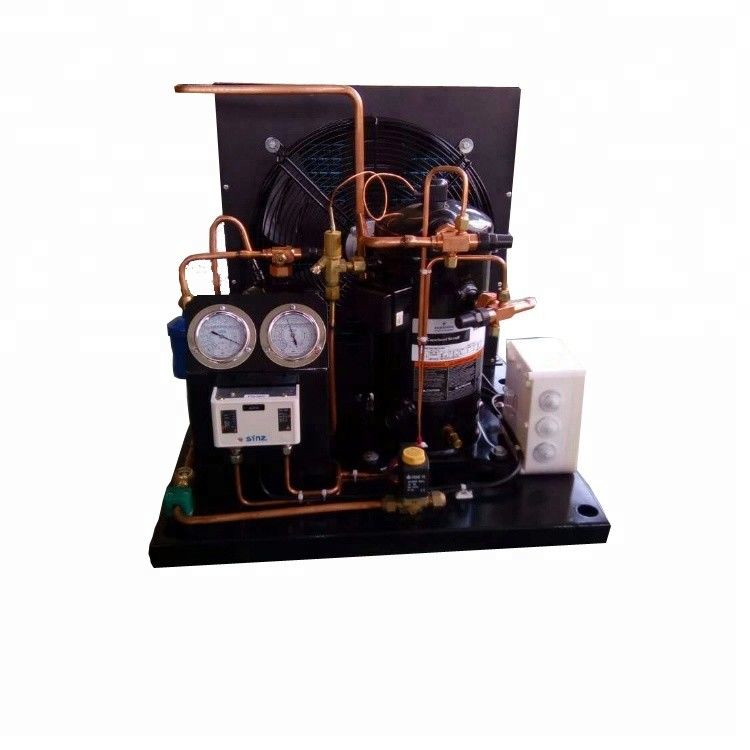

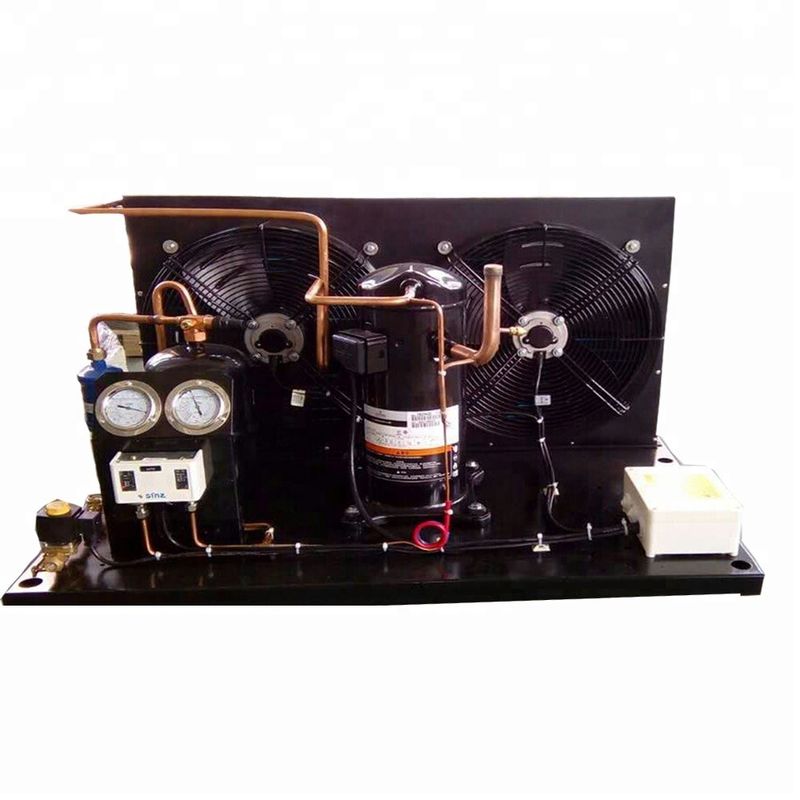

KUB300L ZB21KQE-TFD 3HP copeland refrigeration coolroom condensing unit
Product Description
coolroom condensing unit :
The unit with high-quality cooling accessories can be installed conveniently, and can operate quietly.
1. Using box-type overall design, compact in structure and beautiful in appearance;
2. Scientific designs, steady air flow, fully exert the heat-transfer capacity of the unit;
3.Rational performance design and high EER(energy efficiency ratio) of the unit;
4.Using external rotor motor, fans good appearance, low noise operation;
5. Maintenance:The panel is easy to remove.
| Product name | copeland compressor condensing unit |
| Model | KUB300L-ZB21KQE |
| Dimension | 1020*420*840mm |
| Color | white |
| Cold room temperature | --18℃ |
| MODEL | KUB | ||||||
| 200L | 300L | 400L | 500L | 600L | |||
| COMPRESSOR | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE | ||
|
Capacity
&
Power
|
Evaporation -5℃ |
Capacity (W) |
3660 | 5630 | 7680 | 9550 | 11200 |
| Evaporation-7℃ |
Capacity (W) |
3630 | 5180 | 7070 | 8790 | 10350 | |
| Evaporation-10℃ |
Capacity (W) |
2920 | 4570 | 6210 | 7740 | 9120 | |
| Evaporation-20℃ |
Capacity (W) |
2930 | 3930 | 4940 | 5850 | ||
| Evaporation-23℃ |
Capacity (W) |
2540 | 3390 | 4280 | 4080 | ||
| Evaporation-25℃ |
Capacity (W) |
2300 | 3070 | 3880 | 4610 | ||
| Suitable for cold storage temperature(℃) | -18℃ | ||||||
| Refrigerant | R404A/R507C | ||||||
| Power supply | 380V/3P/50HZ | ||||||
| Condenser | Fan | 1×￠450 | 1×￠450 | 1×￠450 | 2×￠450 | 2×￠450 | |
| Fan voltage(V) | 220 | 220 | 220 | 220 | 220 | ||
| Fan power(W) | 60 | 60 | 60 | 60×2 | 60×2 | ||
| Piper size | Suction(mm) | ￠16 | ￠16 | ￠16 | ￠19 | ￠19 | |
| Liquid(mm) | ￠10 | ￠10 | ￠10 | ￠12 | ￠12 | ||
| Dimensions | L(mm) | 1020 | 1020 | 1020 | 1020 | 1020 | |
| W(mm) | 420 | 420 | 420 | 420 | 420 | ||
| H(mm) | 840 | 840 | 840 | 1240 | 1240 | ||
| Installation size (A×B)(mm) | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 | ||
condensing units design conditions: evaporation temperature -23 ° C, ambient temperature 35 ° C, suction superheat 10 ° C
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
