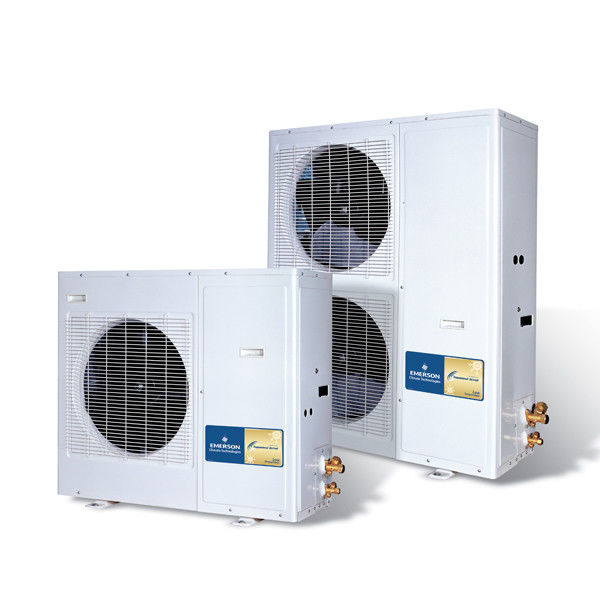

Zx030e ZX030BE 3hp 2250w Commercial Refrigeration Condensing Units For Small Cold Room

Place of Origin Suzhou China
Brand Name Emerson
Certification CE
Model Number ZX030BE
Minimum Order Quantity 1 Unit/Units
Price negotiable
Packaging Details Plywood pallet+carton
Supply Ability 50 units per month
Product Details
Type Condensing Unit Refrigerant R-404a
Product Name Copeland Compressor Condensing Unit Compressor Copeland Scroll
Voltage 380V/3Ph/50Hz Compressor Brand Emerson
Cooling Capacity 2250W Model ZX030E
High Light

cool room condensing unit

,

fridge condensing unit

Leave a Message
Product Description

ZX030E 3HP copeland refrigeration condenisng unit for small cold room Cold storage ZX Platform Condensing Unit



Features:

Leading the Future in Refrigeration Technology



Emerson Climate Technologies is pleased to offer the ZX platform refrigeration condensing units (CDU) specifically designed for medium temperature (MT), digital modulated variable capacity medium temperature (MT) and low temperature (LT) refrigeration. Emerson’s CDU range comes with unique features and applies its advanced and patented scroll technologies that redefine the standards of efficency and reliability for this category of products.



Characteristics:



ZX series CDU has been highly successful in the Asian market and enjoys proven success with its energy savings and customer-friendly electronic features. ZX CDU’s have been applied by several well known end-users and chain retailers throughout Asia. The ZX platform is also gaining wider acceptance in the global market and specific variants have been developed and exported to the USA, European and Middle East markets.



The fixed capacity ZX platform CDUs come with Emerson Climate Technologies’ highly successful “E2 Controller”. E2 controller prvides real-time monitoring of compressor operating conditions and initiates actions to keep the compressor within the safe zone. When fault conditions are detected, the controller initiates temporary shutdowns and sends specific warning signals to facilitate service.In the event of continued errors, the controller will shutdown the unit thereby preventing costly equipment failure and send alarm signals. The controller is also designed to activate an external telephone dialer to be notified on a preset telephone number. This feature can also be used to automatically start a back-up unit in critical applications.





Optional components:

1, ZX020E   ZXL020E

2, ZX025E   ZXL025E

3, ZX030E   ZXL030E

4, ZX035E   ZXL035E

5, ZX040E   ZXL040E

6, ZX050E   ZXL050E

7, ZX060E   ZXL060E

8  ZX075E   ZXL075E



Descrition



Model Ambient Capacity Power
Temperature (℃) Evaporating Temperature(℃) Evaporating Temperature(℃)
  -20 -15 -10 -5 0 5 -20 -15 -10 -5 0 5
ZX020E 27 3.3 3.9 4.44 5.08 5.79 6.6 1.64 1.67 1.7 1.76 1.84 1.96
32 2.85 3.39 3.92 4.48 5.08 5.76 1.79 1.81 1.84 1.9 2 2.12
38 2.42 2.9 3.36 3.85 4.36 4.94 1.95 1.99 2.02 2.07 2.16 2.26
43 1.94 2.43 2.89 3.34 3.81 4.3 2.14 2.18 2.22 2.27 2.34 2.41
ZX030E 27 4.04 4.87 5.81 6.85 7.99 9.23 2.14 2.19 2.24 2.32 2.42 2.55
32 3.75 4.52 5.39 6.35 7.4 8.55 2.4 2.44 2.5 2.57 2.67 2.81
38 3.39 4.08 4.85 5.72 6.67 7.69 2.72 2.75 2.8 2.88 3 3.15
43 3.06 3.69 4.39 5.17 6.03 6.97 3.06 3.09 3.14 3.21 3.33 3.5
