ZB38KQE-TFD Commercial Condensing Unit , Condensing Unit Components Scroll Compressor Low Temperature

Place of Origin: Shanghai, China (Mainland)
Brand Name: KUB
Certification: CE
Model Number: ZB38KQE-TFD
Minimum Order Quantity: 10 Set/Sets
Price: negotiable
Product Details
Style: Single-temperature Capacity: 35m3
Temperature: -18 Climate Type: 0
Refrigerant: R22 Model: ZB38KQ
High Light:

compressor condenser unit

,

cooler condensing unit

Leave a Message
Product Description

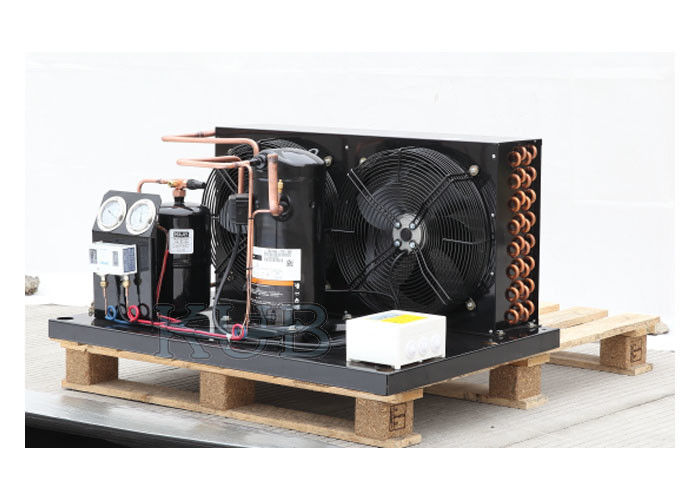

ZB38KQE-TFD Air Cooled Condensing Unit ZB Copeland Scroll Compressor for coldroom

Characteristics:
1.copeland air cooled condensing unit for medium & high temperature (environment +12oC~ -10 ºC)

2.copeland air cooled condensing unit for low temperature & frozen environment (-10 ºC ~ -30 ºC)

3.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.

4.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.

5.We offer additional parts to meet your special requests.

 refrigeration unit :

it can be installed conveniently,and can operate quietly.

Watts)                                                 50Hz

Model

Condensing Temperature

                   oC

Evaporating Temperature     oC

-12

-10

-5

0

5

10



ZB26KQ



Q

30

5650

6100

7450

9000

10750

12750

40

5100

5550

6800

8200

9850

11700

50

4500

4900

6050

7350

8850

10550



P

30

1770

1770

1750

1720

1700

1670

40

2240

2230

2210

2190

2160

2130

50

2810

2800

2780

2760

2730

2690



ZB30KQ



Q

30

6150

6800

8600

10700

13050

15700

40

5400

6050

7700

9650

11900

14400

50

4600

5150

6800

8550

10600

12900



P

30

2230

2230

2250

2270

2310

2370

40

2690

2700

2710

2720

2740

2770

50

3280

3280

3290

3290

3300

3310



ZB38KQ



Q

30

8150

8900

11000

13400

16000

18800

40

7300

8000

9950

12200

14650

17300

50

6250

6900

8800

10800

13100

15600



P

30

2490

2510

2540

2590

2680

2820

40

3100

3120

3150

3200

3290

3430

50

3880

3890

3900

3940

4010

4130





The highest inspiratory temperature of 0 oC.



compressor parameters

Model

Number

Power

Power

Supply
(Volts/Phase)

Connection
Type
Connection
Size
(Suction)
Connection
Size
(Discharge)
Oil
Charge

Rated Load
Current

(Amps)

Locked Rotor
Current: (A)
Weight
ZB15KQE-PFJ-524 2 220-240/1 Tube 3/4" 1/2" 1.18 ltr 11.4 A 58 A 23 kg
ZB19KQE-TFD-524 3 380-420/3 Tube 3/4" 1/2" 1.45 ltr 4.3 A 32 A 25 kg
ZB26KQE-TFD-524 4 380-420/3 Tube 3/4" 1/2" 1.45 ltr 7.1 A 46 A 28 kg
ZB38KQE-TFD-524 5 380-420/3 Tube 7/8" 1/2" 1.89 ltr 8.9 A 65.5 A 38 kg
ZB48KQE-TFD-524 7 380-420/3 Tube 7/8" 1/2" 1.66 ltr 14 A N/A 39 kg
ZB58KQE-TFD-551 8 380-420/3 Rotalock 1 3/4" 1 1/4" 2.51 ltr 16.4 A 95 A 60 kg
ZB66KQE-TFD-551 9 380-420/3 Rotalock 1 3/4" 1 1/4" 3.25 ltr 17.3 A 111 A 60 kg
ZB76KQE-TFD-551 10 380-420/3 Rotalock 1 3/4" 1 1/4" 3.25 ltr 19.2 A 118 A 65 kg
ZB95KQE-TFD-551 13 380-420/3 Rotalock 1 3/4" 1 1/4" 3.25 ltr 25 A 140 A 65 kg
ZB114KQE-TFD-551 15 380-420/3 Rotalock 1 3/4" 1 1/4" 3.25 ltr 27.9 A 174 A 65 kg






diagram
