Durbale Small Condensing Unit , 3hp Monoblock Carrier Condensing Unit Intelligent Design

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Model Number KCF030AM-IA3
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 30 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition New Applicable Temperature +10 C ~ -20 C
Voltage 380V/3PH /50HZ Power(W) 2.25kw
Weight 178KG Warranty One Year
High Light

freezer condenser unit


carrier condensing unit

Leave a Message
Product Description

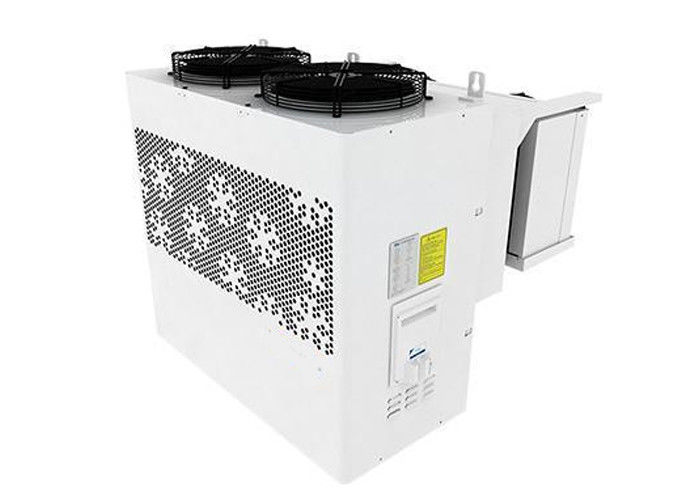

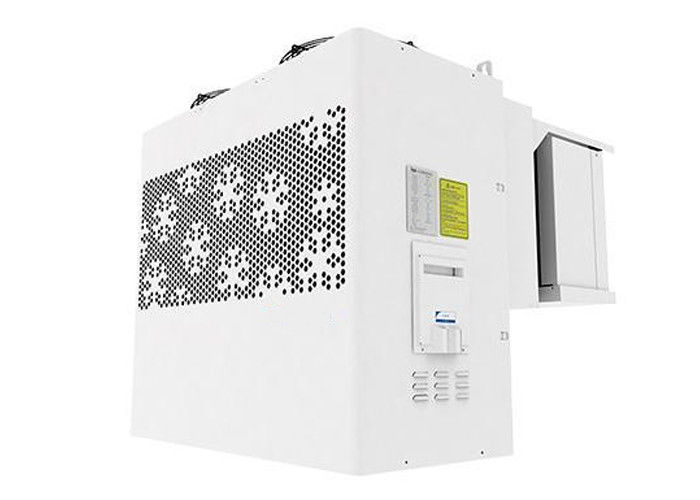

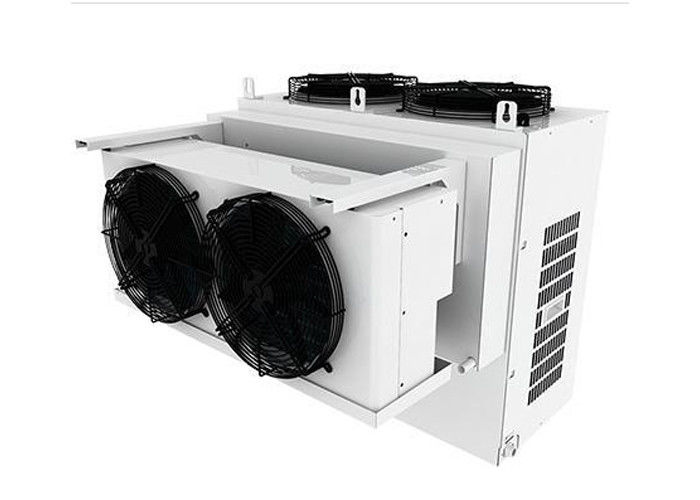

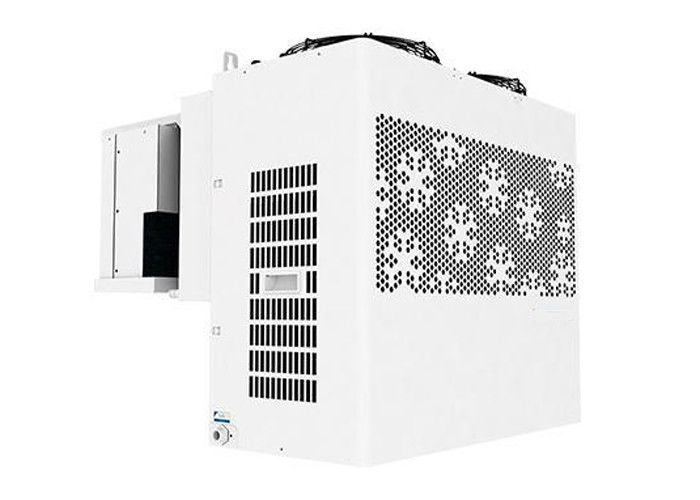

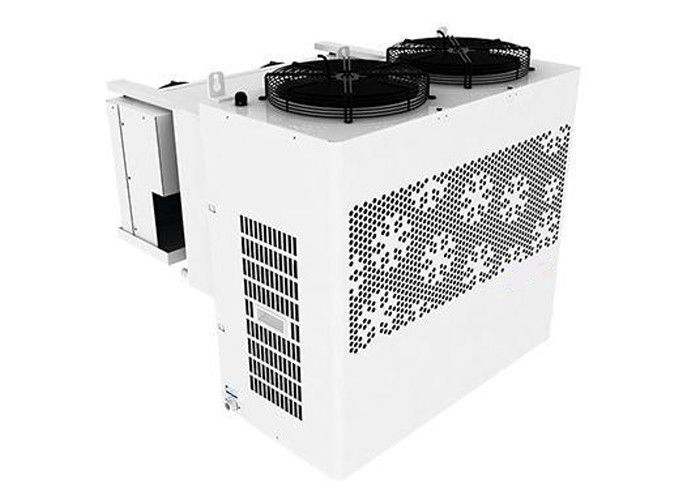

3HP Mono block Freezer Units Side in Monoblock for Intelligent Cold storage side embedded unit machine


All in one design, side in type installation,only need to reserve a corresponding size window at the side plate of the cold room, then gently push the machine in, switch on to start up. Widely used in medical, catering, fresh distribution and other small cold room which space is restricted.
Advantages and Features
1.Temperature range: ambient temperature:-15℃~+48℃, room temperature: -18℃~+10℃;
2. Application: Suitable for medical, catering, cold chain, food, dairy and other fields of fresh keeping and cold storage;
3. Compact structure, easy to install,only need to reserve corresponding size on the side plate of the cold room, the installation could be done within 20 minutes;
4. Electronic expansion valve with fuzzy control : high refrigeration efficiency, fast cooling speed.
5. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting, compare with electrical heater, energy saving more than 80%;
6. Intelligent control system, start up to running, no need of testing.



The KUB series of machine, called Mono block, or integrated unit for cold rooms, that integrate evaporator, condenser, compressor, electrical control units into one compact body. It features easy, labor saving in installation, can be widely used for small cooled and cold storage room of Temperature of -5℃~5℃ or - 15℃~-20℃, in hotels, restaurants, medicines, agricultural, chemicals industries all o…
Welding equipment cooling
Metal cutting
Metal surface processing
Cooling of injection molding machine
Bottle blowing machine cooling.
Plastic extruder cooling
Thermo forming
Production of plastic film
Hydraulic system cooling

Model KCF030AM-IB3
Cooling Capacity Room Temperature ℃ -18 W 2630
-15 W 3046
-10 W 3757
-5 W 4582
0 W 5437
5 W 6620
Nominal Power W 2940
Room Temp.Range -18-10
Power Supply   380V/3N-/50Hz
Refrigerant   R404A
Coontrol Type   Intelligent defrost,Electrical expansion vavle with fuzzy control
Throttle Mode   Electrical expansion vavle
Evaporatr Type   High Efficient fin with internal thread copper pipe
Compressor Type   Hermetic Scroll
QTY pcs 1
Power W 2398
Condenser Fan Type   High efficiency low noise axial fan
QTY pcs 1
Power W 85*2
Evaporator Fan Type   High efficiency low noise axial fan
7.2478E-286 pcs 1
7.2407E-286 W 85*2
Dimensions(L*W*H) mm 886*884*829
Net Weight Kg 140
1:Nominal working condition:ambient temperature:32℃,Cold room temperature:0℃
2:The power of nominal working condition is the sum of the power of compressor,fan and control system; 3:The parameters will change without futher notice due to product improvement,the detail data please refer to our oriduct nameplate.



Durbale Small Condensing Unit , 3hp Monoblock Carrier Condensing Unit Intelligent Design 0

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3


Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.


B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.


Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.



Hermetic FNV Type R407C 48KW Air Cooled Condenser 2


Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
