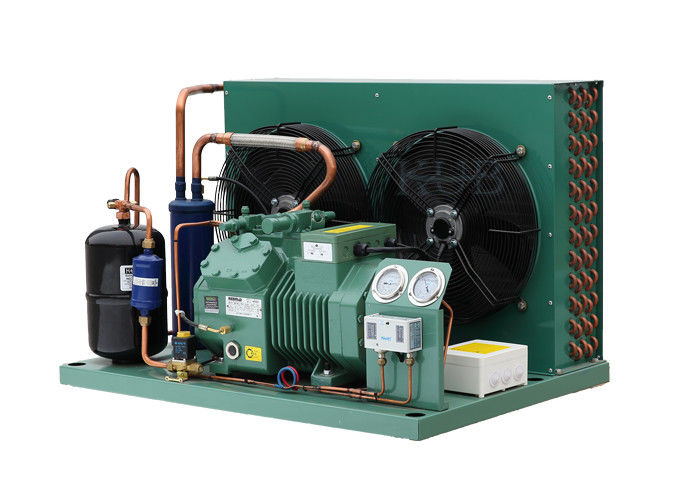

4 Cylinder Semi Hermetic Condensing Unit 4DES-7Y Stable Reliable Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Refrigerant | R22/R404a | Compressor | Semi-hermetic |
|---|---|---|---|
| Voltage | 380v/3p/50hz | Application | Cold Storage Room Freezer Room |
| Cooling Capacity | 5250W | Warranty | 1 Years |
| Dimension | 1050*800*680MM | Weight | 235Kg |
| Highlight | 4 Cylinder Semi Hermetic Condensing Unit,Freezer Semi Hermetic Condensing Unit,380v Semi Hermetic Condensing Unit |
||
Product Description
4DES-7 4DC-7.2Y 7HP 4 cylinder 4DES-7Y semi hermetic compressor condensing unit
Adopted to multiple refrigerant R404a, R507, R407C, R22.
Stable & Reliable Performance
The units are equipped with world famous brand high quality compressor and components,
following the latest design, the perfect combination provides a safe and reliable system.
The unit comes standard with a controller that can effectively avoid turning on/off the motor
frequently as well as safety protection modules including the following: Phase loss protector,
Inverted sequence, overvoltage protector, undervoltage protector, oil pressure, high pressure,
low pressure, motor overload.
High efficiency oil separating system. When power is on, there is no need to add lubricating oil,
the standard provided oil heater (for screw unit), oil temperature controller (for screw unit) and
oil level switch (for screw unit), etc. can protect the function.
Descrition
| Condensing unit | Compressor | Cooling capacity (w) | Condenser | Connector | Dimension | |||||||
| Model | Model | Input (kw) | Evap Temp: -10'C | Qty fan | Dia. (Φmm) | Air flow (m3/h) | Fan power (w) | inlet (mm) | outlet (mm) | L | W | H |
| 2HES-2Y | 2HES-2Y | 1.47 | 3320 | 1 | 400 | 3490 | 1*200 | 16 | 10 | 620 | 650 | 560 |
| 2DES-3Y | 2DES-3Y | 2.92 | 7310 | 2 | 350 | 2350*2 | 2*150 | 22 | 12 | 960 | 680 | 510 |
| 2CES-4Y | 2CES-4Y | 3.59 | 9030 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1060 | 680 | 720 |
| 4FES-5Y | 4FES-5Y | 3.89 | 9740 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1300 | 750 | 670 |
| 4EES-6Y | 4EES-6Y | 4.9 | 12210 | 2 | 400 | 3490*2 | 2*200 | 28 | 12 | 1300 | 750 | 770 |
| 4DES-7Y | 4DES-7Y | 5.85 | 14730 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1300 | 750 | 870 |
| 4CES-9Y | 4CES-9Y | 7.14 | 17800 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4VES-10Y | 4VES-10Y | 7.15 | 18600 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4PES-15Y | 4PES-15Y | 9.82 | 25610 | 4 | 400 | 3490*2 | 4*200 | 35 | 22 | 1280 | 750 | 1460 |
| 4NES-20Y | 4NES-20Y | 11.64 | 30600 | 4 | 400 | 3490*2 | 4*200 | 42 | 22 | 1350 | 800 | 1410 |
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
