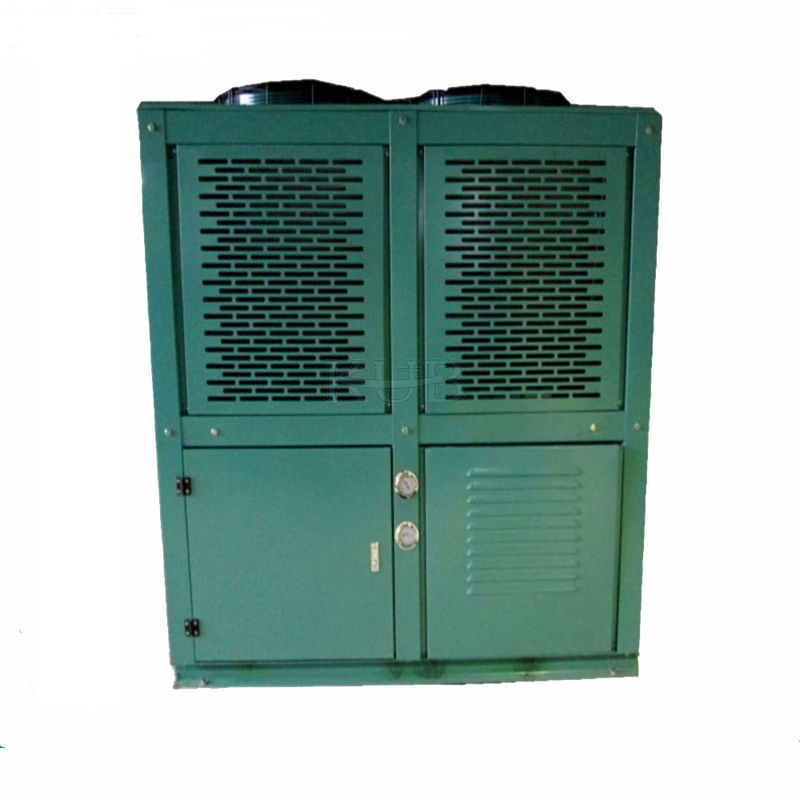

R404a Low Temperature Commercial Refrigeration Condensing Units Green Color 10 Horsepower

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number 4PES-12Y
Minimum Order Quantity 1 Set/Sets
Price negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Condensing Unit After-sales Service Provided Overseas Third-party Support Available
Refrigerant R22 Product Name Semi-hermetic Condensing Unit
Color Green Compressor Compressor
Voltage 380V/3Ph/50Hz Application Cold Storage Room Freezer Room
Cooling Capacity 5Kw~1000Kw
High Light

commercial refrigerator condenser

,

fridge condensing unit

Leave a Message
Product Description

4PES-12Y Medium&Low Temperature R404A refrigeration condensing unit for meat cold room



1.For medium and low temperature

2.Horsepower:10HP

3.Model:4PES-12Y

4.Power:8.67kw

5.Suction line:35mm;Liquid line:16mm

6.Voltage:the standard voltage is 380V/50HZ/3PH,460V/3PH/60HZ,if for special voltage usch as 220V/3PH/60HZ,etc,pls inquiry specially.

7.The condensing units are with 4Fan motors

8.With original Dual pressure control,Original Emerson parts such as the oil separater,drier filter,accumulaltor,etc



Model 4TES-9Y 4PES-12Y 4NES-14Y 4HE-18Y 4GE -23Y
Room temperature -5℃ ~5 ℃
Power supply 380V/3Ph/50HZ
Compressor model 4TES-9Y 4PES-12Y 4NES-14Y 4HE-18Y 4GE -23Y
Condenser Fan Qty 2 2 2 2 2
Fan Voltage(V) 220 220 220 220 220
Fan Input(W) 460×2 460×2 550×2 780×2 780×2
Cap.& input Te-5℃ Cap(W) 24200 27600 32900 44200 51000
input(W) 10.18 11.29 13.63 18.39 22.0
Te-10℃ Cap(W) 19160 21800 26100 35400 41100
input(W) 9.28 10.27 12.48 16.89 20.1
Te-15℃ Cap(W) 14960 16850 20300 28000 32600
input(W) 8.32 9.17 11.23 15.3 18.21
Pipe Gas dia.(mm) φ35 φ35 Φ35 Φ42 φ54
Liquid dia.(mm) φ16 φ16 φ22 φ22 φ22



Overall sizes

L (mm) 1354 1354 1870 1870 1870
W (mm) 825 825 925 925 925
H (mm) 1235 1235 1235 1235 1235
Install sizes(A×B)(mm) 950×785 950×785 755×885 755×885 755×885

Remark: 1 )Above data under conditions of Ambient Temp. 32 ℃, condensing temp.45 ℃;

All fan motor for eva porator should with power supply 220V AC.



R404a Low Temperature Commercial Refrigeration Condensing Units Green Color 10 Horsepower 0

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
