06da537 R22 06D Refrigeration Compressor For Cold Room 15HP ISO9002 Certificate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Full New, 100% Genuine | Port | Shanghai China |
|---|---|---|---|
| Compressor Type | Semi-hermetic Piston | Refrigerant | R22 |
| High Light | cool room refrigeration compressor,screw type compressor |
||
Product Description
06DA537 R22 06D carlyle carrier 15hp refrigeration compressor for sale
Semi-hermetic Carrier Compressor,Carlyle compressor all model 1,R-22,R-134A,R404A 2,Temperature:High,Middle,Low 3,Original:US

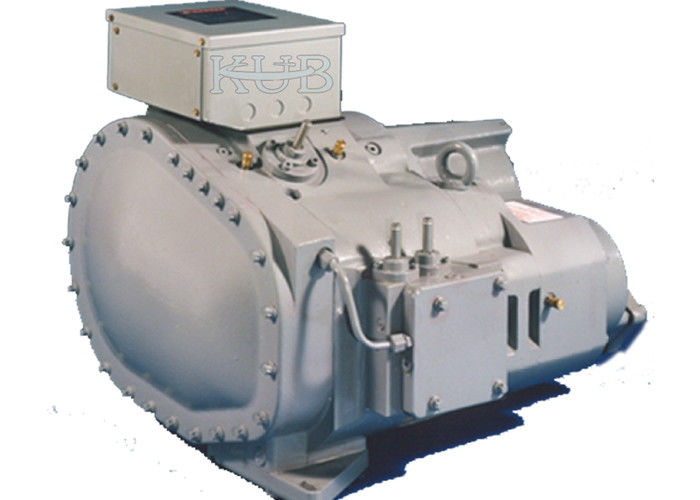

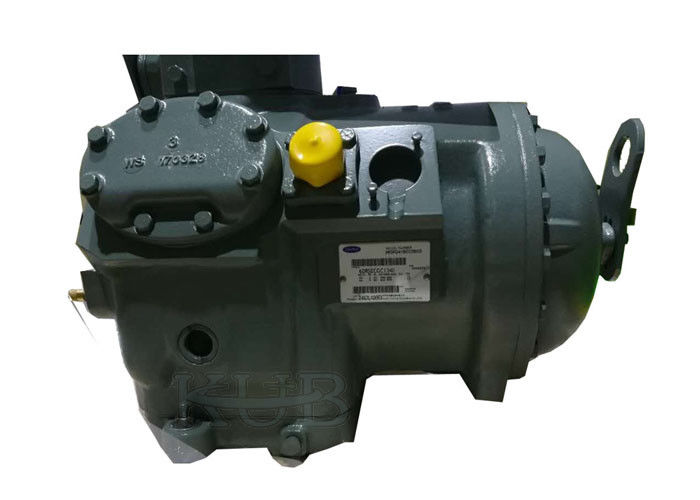

Semi-hermetic Carrier Piston Air compressor
Carrier semi-hermetic Piston compressor with 06D&06Eseries,it’s very popularly use for any high-temperature&low-temperature environment:
1.Widely use in commercial refrigerant, air-conditioner,technics chilling and environment cabin.
2.With high flexibility,it’s not only can use refrigerant R-22,R12,R-501, but also fit R404a,R134a,R507
3.It’s suit for both 50HZ and 60HZ voltage.
4.With UL,CSA,ISO9002 certificate
| MODEL | HP | CFM @ 1750 RPM | SUCTION TEMPERATURE RANGE (DEGREES F) | CYL NO | BORES (INCHES) | STROKE (INCHES) | OIL CHARGE (PINTS) | |||||
| R502/R404A/R507 | R12/R134a | R22 | ||||||||||
| MIN | MAX | MIN | MAX | MIN | MAX | |||||||
| 06DR109 | 2.0 | 8.7 | -40 | 0 | -10 | 55 | -35 | 0 | 2 | 2.00 | 1-3/8 | 3.00 |
| 06DM808 | 3.0 | 8.0 | 0 | 50 | – | – | 0 | 55 | 2 | 2.00 | 1-1/4 | 3.00 |
| 06DR013 | 3.0 | 13.1 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1 | 4.50 |
| 06DM313 | 5.0 | 13.1 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1 | 4.50 |
| 06DR316 | 5.0 | 15.9 | -40 | 25 | -10 | 55 | -35 | 25 | 4 | 2.00 | 1-1/4 | 4.50 |
| 06DM316 | 5.0 | 15.9 | 0 | 25 | – | – | 0 | 45 | 4 | 2.00 | 1-1/4 | 4.50 |
| 06DR718 | 5.0 | 18.3 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1-7/16 | 5.50 |
| 06DA818 | 6.5 | 18.3 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1-7/16 | 5.50 |
| 06DR820 | 6.5 | 20.0 | -40 | 40 | -10 | 55 | -35 | 45 | 4 | 2.00 | 1-9/16 | 5.50 |
| 06DR724 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DR725 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DA825 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DA824 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DR228 | 7.5 | 28.0 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/32 | 8.00 |
| 06DA328 | 10.0 | 28.0 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/32 | 8.00 |
| 06DR337 | 10.0 | 37.1 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DM337 | 10.0 | 37.1 | 0 | 25 | – | – | 0 | 45 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DA537 | 15.0 | 37.1 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DR541 | 15.0 | 41.0 | -40 | 25 | -10 | 55 | -35 | 25 | 6 | 2.00 | 2.15 | 8.00 |
| 06ER450 | 15.0 | 50.3 | -40 | 0 | – | – | -35 | 0 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06EM450 | 15.0 | 50.3 | 0 | 25 | -10 | 55 | 0 | 45 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06EA550 | 20.0 | 50.3 | 0 | 50 | – | – | 0 | 50 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06ER465 | 20.0 | 68.3 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 1-63/64 | 19.00 |
| 06EA565 | 25.0 | 68.3 | 0 | 50 | -10 | 55 | 0 | 50 | 6 | 2-11/16 | 1-63/64 | 19.00 |
| 06ER475 | 20.0 | 75.4 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06EM475 | 25.0 | 75.4 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06EA575 | 30.0 | 75.4 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06ER399 | 30.0 | 99.0 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-7/8 | 19.00 |
| 06EM499 | 35.0 | 99.0 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-7/8 | 19.00 |
| 06EA599 | 40.0 | 99.0 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-7/8 | 19.00 |
| Carlyle Compressors | ||||||||||
| Single-stage compressor | ||||||||||
| Compressor model | Displacement 1450 rev/min | Nominal Power HP | Number of cylinders | Pets can adjust% | Interface size | Electrical parameters | Fuel injection L | Weight KG | ||
| Suction interfaces mm | Exhaust interfaces mm | 400-3-50,460-3-60 | ||||||||
| *RLA(A) | LRA(A)XL/PW first coil | |||||||||
| 06DA825 | 35.4 | 7.5 | 6 | 66or33 | 35 | 28 | 19.9 | 77 | 4.5 | 143 |
| 06DA328 | 39.6 | 10 | 6 | 66or33 | 35 | 28 | 22.1 | 86 | 4.5 | 143 |
| 06DA537 | 52.4 | 15 | 6 | 66or33 | 42 | 28 | 28.6 | 120 | 4.5 | 147 |
| 06EA-50 | 71.4 | 20 | 4 | 50 | 42 | 28 | 44 | 173/104 | 8 | 195 |
| 06EA-65 | 91.8 | 25 | 6 | 66or33 | 42 | 35 | 56 | 223/134 | 9 | 218 |
| 06EA-75 | 106.8 | 30 | 6 | 66or33 | 54 | 35 | 68 | 253/162 | 9 | 222 |
| 06EA-99 | 140.4 | 40 | 6 | 66or33 | 54 | 42 | 95 | 345/207 | 9 | 236 |
| 06EM-50 | 71.4 | 15 | 4 | 50 | 54 | 28 | 36 | 142/85 | 8 | 195 |
| 06EM-75 | 106.8 | 25 | 6 | 66 | 54 | 35 | 56 | 223/134 | 9 | 222 |
| 06EM-99 | 140.4 | 35 | 6 | 66 | 54 | 42 | 77 | 305/183 | 9 | 229 |
| 06DR725 | 35.4 | 6.5 | 6 | 66 | 35 | 22 | 15.7 | 62 | 4.5 | 141 |
| 06DR228 | 39.6 | 7.5 | 6 | 66 | 42 | 22 | 19.8 | 77 | 4.5 | 143 |
| 06DR337 | 52.4 | 10 | 6 | 66 | 42 | 28 | 22.1 | 86 | 4.5 | 147 |
| 06DR541 | 58.1 | 15 | 6 | 66 | 42 | 28 | 25.6 | 120 | 4.5 | 147 |
| 06ER-50 | 71.4 | 15 | 4 | 50 | 54 | 28 | 36 | 142/85 | 8 | 195 |
| 06ER-65 | 91.8 | 20 | 6 | 66 | 54 | 35 | 44 | 173/104 | 9 | 218 |
| 06ER-75 | 106.8 | 25 | 6 | 66 | 54 | 35 | 44 | 173/104 | 9 | 222 |
| 06ER-99 | 140.4 | 30 | 6 | 66 | 54 | 35 | 68 | 253/152 | 9 | 227 |
| Two-stage compressor | ||||||||||
| Compressor model | Displacement 1450 rev/min | Number of cylinders | Pets can adjust% | Interface size | Electrical parameters | Fuel injection L | Weight KG | |||
| Low pressure stage | High pressure stage | Suction interfaces mm | Exhaust interfaces mm | 400-3-50,460-3-60 | ||||||
| *RLA(A) | LRA(A)XL/PW first coil | |||||||||
| 06CC550 | 47.6 | 23.8 | 6 | - | 42 | 35 | 26 | 142/85 | 9 | 239 |
| 06CC665 | 61.2 | 30.6 | 6 | - | 42 | 35 | 40 | 173/104 | 9 | 243 |
| 06CC675 | 71.2 | 35.6 | 6 | - | 42 | 35 | 40 | 173/104 | 9 | 243 |
| 06CC899 | 93.6 | 46.8 | 6 | - | 42 | 35 | 58 | 253/152 | 255 | |
| Description: | ||||||||||
| RLA=rated current；LRA=Locked rotor current；XL=direct start,PW=sub coli start；values PW second winding=1/2 LRA XL value | ||||||||||
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping

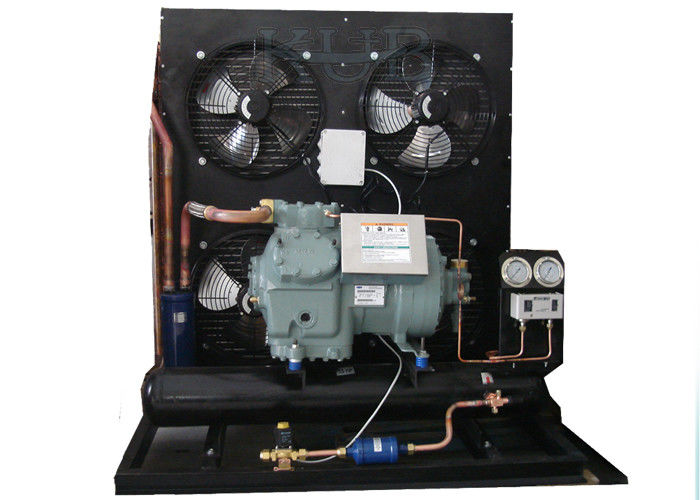

Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
